Can you create families in Revit LT?

Because of their highly customizable nature, loadable families are the families that you most commonly create and modify in Revit LT. For families that contain many types, you can create and use type catalogs, which allow you load only the types that you need for a project.

Besides, how do you create a family in Revit 2020?

Create a New Family Type in a Project

1. In the drawing area, select an element belonging to the desired type.
2. On the Properties palette, click (Edit Type).
3. In the Type Properties dialog, click Duplicate.
4. In the Name dialog, enter a name for the new type and click OK.
5. Specify properties for the type, as desired.
6. To preview the new element type, click Preview.

Subsequently, question is, how do you create a shared parameter in Revit family? Help

1. Click Manage tab Settings panel (Shared Parameters). The Edit Shared Parameters dialog opens.
2. Click Create. Or Browse to an existing shard parameter file.
3. In the Create Shared Parameter File dialog, enter a file name, and navigate to the desired location.
4. Click Save.
5. Add groups:
6. Add parameters:

Simply so, does Revit LT have design options?

By default, Revit LT disables design options. To make use of this feature, you must enable it. Click File tab Options. On the User Interface tab, select Enable Design Options.

How do you create a family category in Revit?

Create Family Subcategories

1. With the family open, click Manage tab Settings panel (Object Styles).
2. On the Model Objects tab of the Object Styles dialog, under Category, select the family category.
3. Under Modify Subcategories, click New.
4. In the New Subcategory dialog, for Name, enter a new name.
5. Click OK.

Related Question Answers

How do you edit family in place in Revit?

Help

1. Double-click an instance of the family in the drawing area.
2. Select an instance of the family in the drawing area, and click Modify <Element> tab Mode panel (Edit Family).
3. In the drawing area or the Project Browser (under Families), right-click the family, and click Edit. The family opens in the Family Editor.

Where is the family editor in Revit?

Select an instance of the family in the drawing area, and click Modify | <Element> tab Mode panel (Edit Family). Double-click an instance of the family in the drawing area. Note: The double-click editing behavior is determined by the setting for the Family element type in the Double-click Options.

How do I use design options in Revit?

Click Manage tab Design Options panel (Design Options). In the Design Options dialog, under Option Set, click New. By default, Revit names the new set Option Set 1 and creates a primary option in the set. To rename the option set, select the option set name, and under Option Set, click Rename.

How do you load a shared parameter in Revit?

Click Modify | <object) tab Properties panel (Family Types). In the Family Types dialog, under the Parameters group box, click Add. In the Parameter Properties dialog, select Shared parameter. Click Select and choose the appropriate shared parameter from the appropriate parameter group.

What is a shared parameter in Revit?

Shared parameters are parameter definitions that can be used in multiple families or projects. Shared parameter definitions are stored in a file independent of any family file or Revit project; this allows you to access the file from different families or projects.

How do I add a parameter to a room in Revit?

Project and shared parameters in Revit

1. In Revit, select a room.
2. In the Manage tab, click Project Parameters.
3. In the Project Parameters dialog box, click Add.
4. Enter East Wall Finish for Parameter Data.
5. Set Type of Parameter to Text.
6. Set Group Parameter Under to Materials and Finishes.
7. Under Categories, select Rooms in the list.

How do you add a category parameter in Revit?

To specify family parameters:

1. In the Family Editor, click Create tab (or Modify tab) Properties panel (Family Category and Parameters).
2. From the dialog, select a family category whose properties you want to import into the current family.
3. Specify the family parameters.
4. Click OK.

How do you add text parameters in Revit?

To control text

Click Create tab Properties panel (Family Types), and add a family parameter that is of type text. This will be the parameter that controls the text of the model text in the project. In the Family Types dialog, enter some text in the Value field for the new parameter.

What is a Revit category?

Revit Element Hierarchy. Category: A Category controls the organization, visibility, graphical representations, and scheduling options of Families within the Project.

What is a family category?

The Family Category and Parameters tool assigns the properties of a predefined family category to the component you are creating. The tool is only available within the Family Editor. Family parameters define behaviors or Identity Data that apply across all types in that family.

What is family type in Revit?

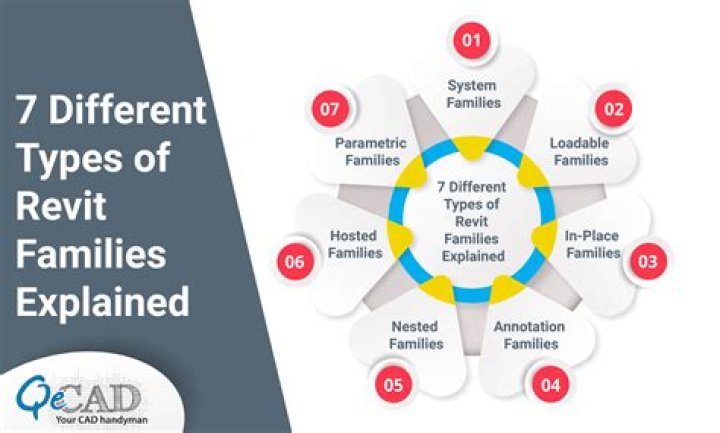

The 3 kinds of families in Revit are: system families, loadable families, and in-place families. Most elements that you create in your projects are system families or loadable families. Loadable families can be combined to create nested and shared families.

How do you create a family in Revit 2018?

Create a New Family Type in a Project

1. In the drawing area, select an element belonging to the desired type.
2. On the Properties palette, click (Edit Type).
3. In the Type Properties dialog, click Duplicate.
4. In the Name dialog, enter a name for the new type and click OK.
5. Specify properties for the type, as desired.
6. To preview the new element type, click Preview.

When you create a project in the Autodesk Revit software do you work in 3d or 2d?

When you create a project in the Autodesk Revit software, do you work in 3D or 2D? You work in 3D almost all of the time, even when you are using what looks like a flat view. What is the purpose of the Project Browser? It is used to access and manage the views of the project.

What is the purpose of a guide grid?

Guide grids help arrange views so that they appear in the same location from sheet to sheet. You can display the same guide grid in different sheet views. Guide grids can be shared between sheets. When new guide grids are created, they become available in the instance properties of sheets and can be applied to sheets.

In which dialog box can you create and rename subcategories?

Click the Model Objects, Annotation Objects, or Imported Objects tab. In the Object Styles dialog under Modify Subcategories, click New. In the New Subcategory dialog, enter a name.

How would you locate and insert a model group into your active view?

Help

1. On the ribbon, click (Place Model Group). Architecture tab Model panel Model Group drop-down (Place Model Group) Structure tab Model panel Model Group drop-down (Place Model Group)
2. In the Type Selector, select the model group type to place.
3. Click in the drawing area to place the group.
