Do not use an electrode holder that has damaged insulation?

Electrode Holders Consuming the electrode all of the way up to the holder will burn away the insulation and increase the likelihood of electric shock as the arc jumps into the electrode holder, or the holder may be damaged by intense heat. Never use electrode holders with missing insulators.

Likewise, when welding the operator should not carry?

5. Do not carry matches, butane or propane lighters or other flammables in you pockets while welding. 6. Shield others from the light rays produced by arc welding.

Likewise, what should you not do when welding? For a list of the top 5 things you should never do when welding, keep reading.

1. #1) Welding In a Poorly Ventilated Area.
2. #2) Not Preheating.
3. #3) Not Wearing The Appropriate Safety Gear.

Besides, what happens when the electrode is placed in the electrode holder?

3 Electrode Holder - The electrode holder connects to the welding cable and con- ducts the welding current to the electrode. The insulated handle is used to guide the electrode over the weld joint and feed the electrode over the weld joint and feed the electrode into the weld puddle as it is consumed.

What can cause an electrode holder to overheat?

It can overheat if the jaws are dirty or too loose, or if the cable is loose. What problem can occur if welding machines are stacked or placed too closely together? There may not be enough room for air to circulate to keep the machines from overheating.

Related Question Answers

Is stick welding dangerous?

Properly installed and used the arc welder is very safe, but if used improperly the operator can be exposed to a number of hazards including toxic fumes, dusts, burns, fires, explosions, electric shock, radiation, noise, and heat stress. Any of these hazards can cause injury or death.

What kind of radiation does welding emit?

Welding arcs and flames emit intense visible, ultraviolet, and infrared radiation. UV radiation in a welding arc will burn unprotected skin just like UV radiation in sunlight. This is true for direct exposure to UV radiation as well as radiation that is reflected from metal surfaces, walls, and ceilings.

How are electrodes classified?

Electrodes are manufactured for different purposes and welding types and are classified by a five-digit number like E7011-M. Each number and letter corresponds with a piece of information, including recommended welding position, tensile strength and penetration depth. The "E" in the classification stands for electrode.

What is the standard for safety in welding?

Consensus standard ANSI Z49. 1-2012, Safety in Welding, Cutting, and Allied Processes, provides guidance in the safe setup and use of welding and cutting equipment, and the safe performance of welding and cutting operations. Paragraph 4.3 provides more direction on clothing selection for welding tasks.

What are the safety precautions in welding?

Basics

• ALWAYS wear a proper face shield.
• ALWAYS wear close-toed shoes.
• ALWAYS wear a long-sleeved, non-flammable shirt.
• ALWAYS wear proper welding gloves.
• ALWAYS wear ear protection (earplugs or muffs) to prevent sparks from entering your ear canal.

Do you need to wear safety glasses under a welding helmet?

Clear safety glasses should be worn underneath a welding helmet when welding -- the safety glasses will protect the eyes from sparks or other debris, while the shaded helmet prevents eye damage that could be caused by the ultra-bright arc. In grinding and cutting situations, shaded safety glasses may be required.

Can you weld steel to concrete?

Welding involves melting two pieces of metal together to form one solid piece. Concrete does not melt. Therefore, it cannot be welded. Cannot weld metal into concrete.

Why should the welding area have metal benches?

why should the welding area have metal benches? so the bench doesnt catch on fire. what happens when the amperage is set too high? what happens when the amperage is too low?

Is the electrode holder positive or negative?

With few exceptions, electrode-positive (reversed polarity) results in deeper penetration. Electrode-negative (straight polarity) results in faster melt-off of the electrode and, therefore, faster deposition rate. The effect of different chemicals in the covering may change this condition.

Why must electrode holder be sized?

Why must the electrode holder be correctly sized? Electrode holders are designed to be used at the maximum amperage rating or less and too high amperage will cause the holder to overheat and burn up. But if the holder is too large for the amperage range being used, manipulation is hard, and operator fatigue increases.

Which type of electrode can be used for both AC and DC welding machine?

E6011 electrodes can be utilized on alternating current (AC), as well as DC.

What is the use of electrode holder?

Electrode Holder. An electrode holder, commonly called a stinger, is a clamping device for holding the electrode securely in any position. The welding cable attaches to the holder through the hollow insulated handle. The design of the electrode holder permits quick and easy electrode exchange.

What must be fully insulated against the maximum voltage encountered to ground?

Any current carrying parts passing through the portion of the holder which the arc welder or cutter grips in his hand, and the outer surfaces of the jaws of the holder, shall be fully insulated against the maximum voltage encountered to ground.

Is the Earth on a welder positive or negative?

When running gasless welding wire – connect the Earth to positive and Torch to negative, otherwise known as "DC electrode negative", or "straight polarity". (This is the opposite to standard MIG welding with gas, which is torch/wire positive and earth negative).

Which accessory is used as a clamping device to grip and manipulate the electrode during arc welding?

An electrode holder, commonly called a stinger, is a clamping device for holding the electrode securely in any position. The welding cable attaches to the holder through the hollow insulated handle.

Why is it important to weld only where there is adequate ventilation?

Remove air contaminants from a worker's breathing zone and work area, Prevent the accumulation of flammable or combustible gases or vapours; and, Prevent oxygen rich or oxygen deficient atmospheres.

Do welding machines need to be grounded?

The welding circuit is not connected to ground within the welding machine, but is isolated from ground. How do we ground the welding circuit? According to ANSI Z49. 1, "Safety in Welding, Cutting and Allied Processes," the workpiece or the metal table that the workpiece rests upon must be grounded.

Should you weld in the rain?

As we mentioned, any type of moisture is the enemy, not just rain. Areas with high humidity can potentially cause problems if your safety gear becomes damp. And while it's not illegal to weld in the rain, it really isn't too smart. Just make sure when it comes to water, you're using the old noggin.

Is it necessary to disconnect battery before welding?

Why it is necessary to disconnect batteries before welding on a vehicle? Short answer: you could cause damage to your battery, and electrical systems with the high voltages and currents/amperage used in welding. If you keep your grounding clamp as close to the area you are welding as possible, it is best.

What causes welds to fail?

Weld failures can occur in any number of ways and are often caused by simple oversights in the welding operation. In many cases, those oversights can result from lack of proper training about the techniques required for welding on a particular material or joint style. Regardless of the reason, the result is the same.

Will welding on a vehicle damage electronics?

Users who perform welding on machinery are not necessary diligent in taking precautions like disconnecting the battery from the vehicle. Apparently, welding can cause severe damage to the electronics.

What type of welding should I learn first?

A form of wire-feed welding, it's the easiest type to master, especially if you're teaching yourself.

• Metal Inert Gas (MIG)
• Flux-cored arc welding (FCAW)
• Welder.
• Welding wire.
• Gas.
• Awl or carbide scribe: to mark cut lines.
• Miter clamp or magnet square: to secure joints.

Do you have to disconnect battery when welding?

“When welding, there is a danger that electrical components will be damaged by the electrical current flowing through the body. Before starting work, disconnect the negative terminal of the battery and ground the welder near the welding location of the body.”

Can you weld in wet conditions?

If you sweat a lot, then in a hot environment, your gloves can get dampened. It is not a good idea to weld in the rain: Welding in the rain can be dangerous for your well-being as well as equipment. If water gets into your gear, it can get damaged entirely. You should remember that amperage burns but voltage kills.

Are welding sparks dangerous?

The immediate danger welders is the danger of burns on the body: Sparks can fly into shoes or eyes and cause injury. To protect the body from sparks, welders should wear high-necked, low flammability protective clothing, leather protective gloves and a welding helmet.

What is a electrode holder used for?

Electrode Holder. An electrode holder, commonly called a stinger, is a clamping device for holding the electrode securely in any position. The welding cable attaches to the holder through the hollow insulated handle. The design of the electrode holder permits quick and easy electrode exchange.

What problem can occur if welding machines are stacked or placed too closely together?

What problem can occur if welding machines are stacked or placed too closely together? There may not be enough room for air to circulate to keep the machines from overheating.

How is heat produced by an arc lost before it reaches the weld?

Not all the heat produced by an arc reaches the weld. Some of the heat is radiated away in the form of light and heat waves. Additional heat is carried away with hot gases formed by the electrode covering. Heat is also lost through conduction in the work.

Why should you occasionally touch the work clamp?

Work Clamps should be carefully touched occasionally to find out if it is getting hot.

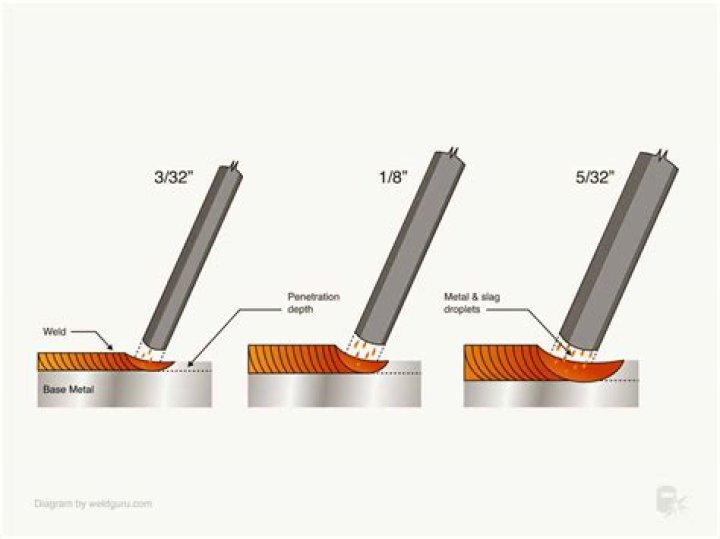

What determines the size of the stick electrode?

The first two numbers on the size number of the electrode usually represent the tensile strength of the electrode. 70, for example, implies that the electrode has a tensile strength of 70,000 pounds per square inch. The third digit represents the position in which you can use the rod.

What controls the size of the arc in welding?

The measurement of total number of electrons flowing, in the same way that gallons is a measurement of the amount of water flowing. This controls the size of the arc. The electrons change direction every 1/120 of a second so that the electrode and the work alternate from positive to negative.

What is electrode holder in welding?

Electrode Holder. An electrode holder, commonly called a stinger, is a clamping device for holding the electrode securely in any position. The welding cable attaches to the holder through the hollow insulated handle.

What does a 60 duty cycle mean?

A duty cycle or power cycle is the fraction of one period in which a signal or system is active. Thus, a 60% duty cycle means the signal is on 60% of the time but off 40% of the time. The "on time" for a 60% duty cycle could be a fraction of a second, a day, or even a week, depending on the length of the period.

What is the voltage at the arc during welding?

A: Arc welding involves open circuit (when not welding) voltages which are typically from as low as 20 volts to as high as 100 volts. Q: What voltages are normally found inside the case of an arc welder? A: The voltage inside welding equipment is commonly much higher: from 120 volts to 575 volts or more.
