How do hoists work?

Hand chain sits on a wheel located in the lifting mechanism, it needs to be pulled by hand in order to lift a load. The wheel inside the lifting mechanism has got special pockets that allow the hand chain to move the wheel. Lifting chain also loops the lifting mechanism and lifts or lowers a load.

Moreover, how do you use a hoist step by step?

Walk hoist slowly over to client, using forward steps.

Assist client to roll to their side and set the sling in place.

1. One worker on each side of bed, unless otherwise indicated in client's support plan.
2. Prepare client's arm and leg ready for roll (refer to SWI for Rolling and Repositioning).

Furthermore, what are some examples of different types of hoists? When the above various types of configurations or constructions are considered, some of the names used to refer to overhead hoists include: hook mounted manually operated hand chain hoists; electric chain hoists; pneumatic (air) chain hoists; electric wire rope hoists; pneumatic (air) wire rope hoists; trolley mounted

Similarly one may ask, how do you release a chain hoist?

To lift the load, pull the hand chain (15) to rotate the handwheel in clockwise direction. When pulling the hand chain in the reverse direction, the handwheel will be separated from brake seat (10), the ratchet disc (14) checked by pawl (17) will be released, and the load will be lowered down smoothly.

What is the difference between chain hoist and chain block?

Chain block is an older term used to describe a chain hoist, especially a manual chain hoist which looks like a metal block of sorts. Chain hoists are also referred to as “chain fall's”. In the lifting industry, you will commonly hear all three of these terms used.

Related Question Answers

What is a chain fall used for?

chain·fall (chān′fôl′) A hoisting device consisting of a chain suspended from or laid over a fixed, raised structure such as a beam, used to lift heavy objects, especially vehicle engines.

What is chain hoist?

A Chain Block (also known as a hand chain hoist) is a mechanism used to lift and lower heavy loads using a chain. When the chain is pulled, it winds around the wheels and begins to lift the item that is attached to the rope or chain via a hook.

How much is a 1 ton chain hoist?

Compare all Specifications

SPEEDWAY	BLACK BULL	Big Red
1 Ton Manual Chain Hoist	2-Ton 8 ft. Hand Chain Hoist	2 Ton Chain Hoist
$47.45	$64.99	$84.02
(40)	(23)	(11)
Details Above	View Details	View Details

Can I use a chain hoist to pull horizontally?

Lever hoists are portable devices used to manually lift, lower or pull a load. Lever hoists have the advantage of being able to lift in most positions, including horizontally and vertically, where chain hoists can typically only be used vertically.

What is chain pulley block?

A Chain Block (also known as a hand chain hoist) is a mechanism used to lift and lower heavy loads using a chain. Chain blocks contain two wheels which the chain is wound around.

Which motor is used in hoist?

While PMDC motors are used in hoist, reel and winch applications up to 10 HP, wound field DC motors ¹⁴ are commonly used in industrial applications above this range and up to several hundred horsepower (HP), in both the standard and explosion proof types.

What can go wrong when hoisting a person?

Using hoists safely Problems include: selection of the wrong size sling – which can result in discomfort if the sling is too small, and/or the person slipping through if it is too large. leaving a vulnerable person unattended in a hoist; or in a position where they might be at risk of falling.

What must you check before using a hoist?

Take a good look at the sling; if you see any tears in the fabric then the sling should not be used. Any damage (no matter how small) can cause concern for the safety of the patient. Always check hoist slings before you using a ceiling track hoist.

What must you do before you move a patient?

If you've assessed the situation and have decided to move the person, make sure you:

1. never lift above shoulder height.
2. keep your feet stable.
3. have a firm hold.
4. keep any weight close to your body.
5. keep your back straight and bend your knees.
6. lift as smoothly as possible.

Can you use a hoist on your own?

Summary. It is possible for one person to use a ceiling hoist thanks to single-user hoist systems. Thanks to innovative equipment and hoist track components, you can move patients around by yourself and give them your full attention without having to worry about manual tasks.

What should you do after using a hoist?

Once the patient is in position, unhook or unclip the attachments and move the hoist away from them. Then remove the sling. Ensure the patient is comfortable and has the nurse call system close by.

When raising a vehicle on a hoist how should it be positioned?

How should I place the vehicle on the automotive lift?

1. Put the transmission in neutral position, turn off ignition, close all car doors, and check for overhead obstructions such as radio aerials.
2. Place adaptors or pads in the proper position under the recommended contact points.

How do you use a slide sheet?

How to Use a Slide Sheet

1. Safely roll the patient over to one side.
2. Place the slide sheets together.
3. Roll the patient back on their back, and repeat on the other side.
4. Pick up the top slide sheet by the sides and use it to move the patient.
5. You can now slide the patient, left to right, and forward and back with ease.

What is a hoist and sling?

They can be used in a mobile or static hoist for someone who has good trunk strength and control, but are more often used to provide additional support when using a standing hoist. Amputee slings. Amputee slings are designed to provide a secure hold around the hips and comfort and protection around the remaining limb/s

What is a mobile hoist?

Mobile hoists are lifting aids that work with slings to transfer you between different rooms and seats.

How many chains do chain hoists use?

Chain hoist has got two chain loops – hand chain and lifting chain. Hand chain sits on a wheel located in the lifting mechanism, it needs to be pulled by hand in order to lift a load. The wheel inside the lifting mechanism has got special pockets that allow the hand chain to move the wheel.

What is the most common misuse of rigging?

Alloy chain slings are some of the most over-used and abused pieces of rigging equipment in a facility. People tend to believe that because they're made from alloy steel, they can lift the world with them and misuse and abuse them because they're not as susceptible to damage as wire rope or synthetic slings.

How do hydraulic hoists work?

How Do Hydraulic Lifts Work? Hydraulic lifts work on a basic principle: to go up, a pump pushes oil into the cylinder, pushing the piston (which pushes the lift car) up. To go down, the valve opens and oil is allowed to flow back into the reservoir, and is pushed back using the gravitational force of the lift car.

How many types of hoist are there?

three

What is a material hoist?

What is a materials hoist? A hoist is a device used to lift or move material. The lifting force is provided by a drum (or wheel) on which wraps a rope (wire or fibre) or a chain. There are different types of hoists – Electro-hydraulic, manual or lever operated, base mounted, or pendant cranes.

Can you hoist with one carer?

It's not a legal requirement for two people to hoist a patient, but a few companies and care providers will specify that you should only ever hoist someone when there are two carers to do so. If it doesn't, then you can probably hoist the patient by yourself.

Which rope is used for heavy duty hoisting?

Wire Rope: The most commonly used sling. Used in the construction and other applications where heavy loads and rugged conditions exist. Answer: The most commonly used wire rope used for heavy hoisting is sling.

How is hoisting equipment used?

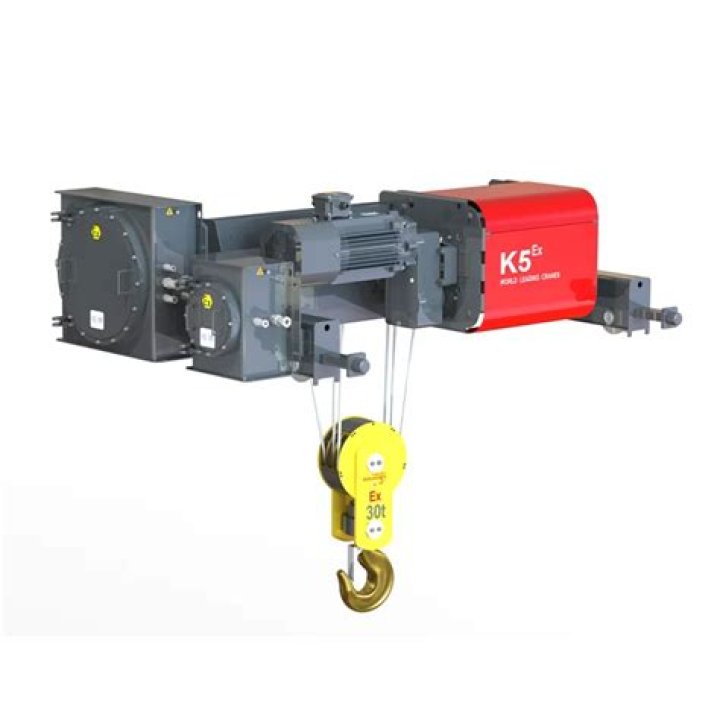

A hoist is a device used for lifting or lowering a load by means of a drum or lift-wheel around which rope or chain wraps. It may be manually operated, electrically or pneumatically driven and may use chain, fiber or wire rope as its lifting medium.

What is hoisting in JavaScript?

Hoisting is a JavaScript mechanism where variables and function declarations are moved to the top of their scope before code execution. Inevitably, this means that no matter where functions and variables are declared, they are moved to the top of their scope regardless of whether their scope is global or local.

What is a hoist used for in a care home?

Manual Handling in Care Homes: Using Hoists Safely For example, hoists can be used in care homes to raise people that have fallen, help them to stand, help them to move, lift them into and out of bed or into or out of the bath.

What is hydraulic hoist?

…powered by electricity is a hydraulic hoist, in which an electric motor is used to run a hydraulic piston, which in turn moves the hoisting lines. The advantages of this form of machine-driven flying system are that the electric motor does not have to be physically near the fluid drive,…

What is a hoist beam?

Hoist Beam. A beam (usually an I Beam) placed in the overhead of the elevator hoistway required for installation and maintenance of an MRL elevator.
