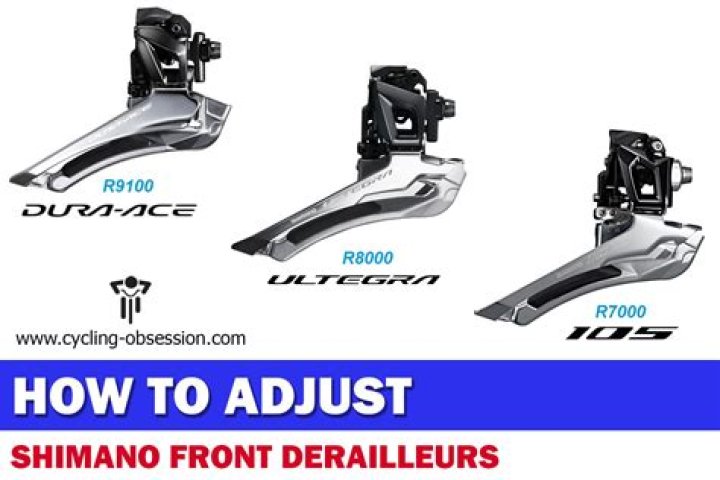

How do you adjust a Shimano front derailleur?

Begin with the chain on the smallest cog. Relax the cable tension completely using the cable barrel adjuster. Place a hand on the derailleur body to feel for any lateral motion, and select one screw to turn one full turn clockwise and then counter-clockwise. If you felt motion in the derailleur, this is the “L” screw.

Keeping this in consideration, how do you adjust a derailleur limit screw?

First turn the H-limit screw count-clockwise a few turns. Pedal and see if it makes the shift outward. If it still does not shift outward, turn the barrel adjuster on the derailleur body clockwise a few rotations. Pedal to see if it shifts.

Furthermore, should I adjust front or rear derailleur first? In a nutshell, adjust the front derailleur first, then the rear. If the derailers just need minor tweaking (they are basically in adjustment but are "not quite right") then you adjust the one that is obviously wrong, check the overall adjustment again, then again adjust what needs adjusting.

Also to know is, why is my front derailleur not shifting?

Front derailleurs may cause sluggish or inaccurate shifting because (A) the derailleur body is not positioned properly, (B) the derailleur limit screws are not adjusted correctly, (C) the mechanism is dirty or (D) the cable is damaged or improperly tensioned.

How tight should front derailleur cable be?

You need to pull it pretty tight before clamping it to the derailleur. Probably as tight as you can. Usually I find that's still not tight enough, so I screw the barrel adjuster down all the way before putting the cable in and then open it up until the tension is correct.

Related Question Answers

Why is my chain rubbing?

The reason the chain rubs is because the cable is too loose. And when it's too loose, shifting onto the large chainring results in only a partial shift. With sufficient tension on the derailleur cable, the derailleur cage will move to its full outside limit and there will be clearance for the chain – and no rubbing.

How do you adjust derailleur gears?

How to adjust a rear derailleur and index your bike's gears

Set the limit screws. With the gear cable disconnected, gently pedal forwards until the chain drops onto the smallest sprocket.
Tighten the cable.
Adjust the cable tension.
Shift it up.
B-tension screw.

How do you adjust Shimano Revoshift?

Turn the low adjustment screw counterclockwise. If there is interference between the chain and the front derailleur inner plate at the largest chainring. Turn the top adjustment screw clockwise. If there is interference between the chain and the front derailleur outer plate at the largest chainring.

Can you use wd40 on bike chains?

Can I use WD-40 to lube my bicycle chain? No. You should never use WD40 as chain lubricant since WD-40 is NOT a true lubricant since it's primary use is as a solvent or rust dissolver.

Why does my chain slip when I pedal hard?

Most of the time, a skipping chain is caused by cable stretch. In the first half dozen rides on a new bike your shift cables stretch the most. To fix a skip in the rear derailleur, shift your chain into the smallest ring on your rear cassette (the hardest gear) and the middle or larger ring on your front derailleur.

How much does it cost to adjust derailleur?

Derailleurs - (per derailleur) $20 labor for derailleur adjustment and lubrication. If cable and housing needs to be replaced, labor is $25 plus the cost of the cable and housing. If a bent derailleur needs to be aligned, there is an additional $15-20 labor cost.

How do I know if my derailleur hanger is bent?

Most of the time, it's not visible to the eye if a hanger is bent or not. But a typical symptom of a misaligned hanger is the rear derailleur will shift fine for a few gears, only to lose adjustment while shifting further up or down the cassette.

Why does my rear derailleur click?

A clicking noise often comes from your chain wanting to jump up or down a gear on the rear cassette. This can typically be fixed by adjusting the tension of the cable that runs from your shifter to your rear derailleur. The clicking could be caused by a bent derailleur hanger.

How do you adjust Shimano acera?

If it is too loose, use a Phillips-head screwdriver to turn the B-tension screw one quarter-turn to the left. Keep adjusting until the guide pulley just clears the large gear sprocket. If the guide pulley and large gear sprocket are too close together, turn the B-tension screw clockwise one quarter-turn until adjusted.

Which Shimano gear is best?

3 Shimano Gears Best to Worst Review in 2021

ShimanoUltegra R8000 Groupset.
Shimano SLX M7000 Complete Group.
Shimano Dura Ace R9100.

How does a 7 speed bike work?

What is a 7-speed Bike? On a 7-speed bike, the lower gears make it easier to pedal and the higher gears allow for better movement going downhill. Compared to a 3-speed bike, a 7-speed is preferable for a rider who travels on varying terrain.

Is Shimano Tourney good?

Tourney components are reliable, long lasting, but on the heavy side, and may not shift as quickly or as smoothly as higher end stuff. A continuing difference as you go towards higher end is lighter weight, which eventually starts hurting reliability and life.

How do I know if my bike chain is too loose?

Check your chain out. It should be tight enough that it only allows you to move it up and down about one inch. If it is sagging or much looser than that, you need to tighten that chain up. Chains often loosen when a bike does not have a derailleur.

How do you adjust Shimano Altus?

If the chain sits to the left of the cog, loosen the high limit screw until it is in-line. If the chain sits to the right of the cog, tighten the high limit screw until it is in-line. Pull the downshift lever on the shifter until it stops clicking to be sure the shifter is in the lowest gear.

Why is my derailleur hitting my spokes?

either the spokes are too loose, or you need to add a spacer at the end of your cassette. or your RD hanger is bent.

What does the L limit screw do?

The L-limit stops the derailleur from moving inward (toward the spokes). The limit screw does not make the derailleur move, pulling the inner wire makes the derailleur move. The L-screw allows the pulley wheels to shift the chain to the innermost sprocket and yet not shift off the sprocket into the spokes.

Which COG is the highest gear?

The highest gear is when the chain is on the largest cog on the front and the smallest cog on the rear. Limiter screws stop your derailleur from shifting the chain too far inwards or outwards off the cogs.

What does H and L mean on a bike?

H= High limit, L= Low limit. While on a bike stand, you can select different gears and set the limit screws so the chain can easily shift, but never fall off at the extreme positions of the gear shifter.
