How does a turret mooring system work?

In essence, a turret mooring system comprises a fixed turret column held by an internal or external vessel structure via a bearing arrangement. Therefore the vessel-bound components can weathervane freely around the turret which is fixed via a number of anchor lines with respect to the seabed.

Also know, what is a turret mooring system?

The turret mooring system consists of a turret assembly that is integrated into a vessel and permanently fixed to the seabed by means of a mooring system. The turret mooring system can also be combined with a fluid transfer system that enables connection of (subsea) pipelines to the vessel like an F(P)SO.

Furthermore, what is turret in ship? Turrets were weapon mounts designed to protect the crew and mechanism of the artillery piece and with the capability of being aimed and fired in many directions as a rotating weapon platform.

Simply so, how does FPSO turret work?

Once tapped by subsea wells, hydrocarbons are transmitted through flowlines to risers, which transport the oil and gas from the seafloor to the vessel's turret and then to the FPSO on the water's surface. The processing equipment aboard the FPSO is similar to what would be found atop a production platform.

What is a turret in oil and gas?

Floating Production Storage and Offloading vessels, or FPSOs, are offshore production facilities that house both processing equipment and storage for produced hydrocarbons. After processing, an FPSO stores oil or gas before offloading periodically to shuttle tankers or transmitting processed petroleum via pipelines.

Related Question Answers

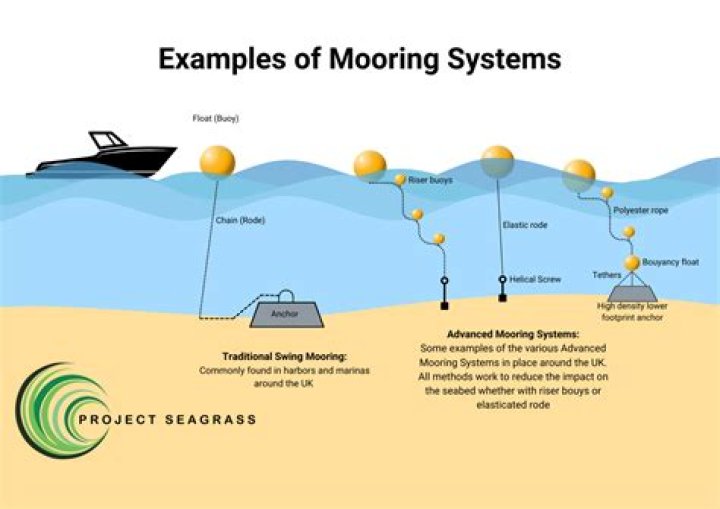

What is the purpose of mooring?

A ship is secured to a mooring to forestall free movement of the ship on the water. An anchor mooring fixes a vessel's position relative to a point on the bottom of a waterway without connecting the vessel to shore. As a verb, mooring refers to the act of attaching a vessel to a mooring.

What does sofec stand for?

Specialized Offshore Facilities & Engineered Components

What is spread mooring?

Spread mooring systems are multi-point mooring systems that moor vessels to the seabed using multiple mooring lines. While the vessel is in a fixed heading relative to the seabed, its bow typically heads into the dominant environment which is usually the direction where the largest waves are coming from.

What is the difference between FPSO and FSO?

A floating production storage and offloading (FPSO) unit is a floating vessel used by the offshore oil and gas industry for the production and processing of hydrocarbons, and for the storage of oil. A vessel used only to store oil (without processing it) is referred to as a floating storage and offloading (FSO) vessel.

What is Single Point Mooring system?

A Single buoy mooring (SrM) (also known as single-point mooring or SPM) is a loading buoy anchored offshore, that serves as a mooring point and interconnect for tankers loading or offloading gas or liquid products. These buoys are usually suitable for use by all types of oil tanker.

What is a turret phone system?

A turret is a specialized telephony key system which is generally used by financial traders. In addition, a whole new world of potential security concerns such DDoS attacks, introduction of malicious code, internal abuse of privileges, and call spoofing are threats that need to be addressed.

What is a swivel stack?

Swivel Stack Systems. The swivel stack is the heart of the turret mooring and fluid transfer system (FTS). Reliability, safety, and flexibility are key to securing increased uptime for FPSO and FSO operations.

What is a FPSO vessel?

Floating production storage and offloading (FPSO) is a term that references a floating vessel near an offshore oil field where oil is processed and stored until it can be transferred to a tanker.

What is 4 point mooring system?

Professional divers require a steadily anchored vessel, which is provided by our 4 point mooring system. In a 4 point mooring system, there are buoys that will be buoyant enough to properly handle the chains or wires for the anchors.

What is turret on FPSO?

Turret is the major component of a vessel or any floating production unit (FPSO, FPO) to which the risers coming from the seabed are connected.

How many FPSO are there in the world?

183

Does FPSO move?

In addition, when an existing oilfield is depleted, an FPSO can move to another location. This saves time and money and mitigates the need to build expensive permanent pipelines and facilities. As such, FPSOs make an ideal solution for smaller oil and gas fields that will be depleted in a matter of years.

What are FPSO materials?

FPSOs are used for processing and storing hydrocarbons that arrive on the facility from sub-sea oil wells or nearby platforms. The equipment on the vessel is designed to separate and treat crude oil, water and gases. FPSOs also have storage capacity so the treated oil can be transferred directly to refineries.

What is topsides in oil and gas?

Topside refers to the above-water portions of an offshore oil rig, or any parts which are above the water line. Components of the topside include the drilling rig, worker accommodations, and sometimes an on-board processing facility.

What is a floating production vessel?

The FPV consists of a large deck connected to submerged pontoons by widely-spaced surface-piercing columns. The columns provide floating stability and structural strength, and the deck supports the drilling, production, accommodation and marine facilities.

What is topside modules of FPSO?

The topside process modules are designed to separate the produced water and the gas from the crude oil, and to reduce the content of salt and H2S in the crude oil. The structural design was having limitation of providing no.

Who invented the gun turret?

Timby

What are the guns on a battleship called?

Naval artillery is artillery mounted on a warship, originally used only for naval warfare and then subsequently used for shore bombardment and anti-aircraft roles.

How does a battleship turret work?

A wing turret is a gun turret mounted along the side, or the wings, of a warship, off the centerline. The positioning of a wing turret limits the gun's arc of fire, so that it generally can contribute to only the broadside weight of fire on one side of the ship.

When was the turret gun invented?

1862

How do battleship turrets rotate?

But to simplify, underneath the turret pan, along the outer rim of the barbette there is a roller 'rack' fixed to the barbette with the grooves facing inward. A 300 horsepower electrical motor sits inside the turret structure on the Electric Deck, far below the guns. This turns or 'trains' the turret.

Where is kikeh?

The Kikeh field is located 120km northwest of the island of Labuan, offshore Sabah, East Malaysia in water depths of approximately 1,300m. Murphy Sabah Oil Company operates Kikeh on behalf of partner Petronas Carigali.

Which type of platform would be used for exploration of oil and gas?

An oil platform, offshore platform, or offshore drilling rig is a large structure with facilities for well drilling to explore, extract, store, and process petroleum and natural gas that lies in rock formations beneath the seabed. Many oil platforms will also contain facilities to accommodate their workforce.

How many FPSO are there in Malaysia?

20 FPSO
