How does FortiGate check VPN traffic?

To confirm whether a VPN connection over LAN interfaces has been configured correctly, issue a ping or traceroute command on the network behind the FortiGate unit to test the connection to a computer on the remote network.

Beside this, how check VPN tunnel status in FortiGate firewall?

To confirm whether a VPN connection over LAN interfaces has been configured correctly, issue a ping or traceroute command on the network behind the FortiGate unit to test the connection to a computer on the remote network.

Beside above, how do I monitor the remote VPN users working hours Fortinet? 'vpn-Authenticated-Logins'

1. In the selected dataset, test if the required data is available in the database:
2. Create custom chart, using the dataset 'vpn-Top-Dial-Up-VPN-Users-By-Duration' or 'vpn-Authenticated-Logins'.
3. Insert the new custom chart in a report:

Likewise, people ask, how do I check traffic on VPN tunnel?

Check the current status using the Amazon VPC console

1. Sign in to the Amazon VPC console.
2. In the navigation pane, under VPN Connections, choose VPN Connections.
3. Select your VPN connection.
4. Choose the Tunnel Details view.
5. Review the Status of your VPN tunnel.
6. If the tunnel status is UP, choose the Static Routes view.

How do I check traffic on ipsec tunnel FortiGate?

To view the IPSEC monitor in the GUI:

1. Go to Dashboard > Network.
2. Hover over the IPSEC widget, and click Expand to Full Screen.

Related Question Answers

Which VPN topology is the most fault tolerant?

The Mesh Topology

How do I get VPN tunnel in FortiGate?

To bring the VPN tunnel up, go to Monitor -> IPsec Monitor. Select 'Status' and select Bring Up. There is an option to enable auto-negotiation so that phase2 selectors will always stay up which is explained in attached article.

How do I ping in FortiGate?

To ping from a FortiGate unit:

Go to Dashboad, and connect to the CLI through either telnet or the CLI widget. Enter execute ping 10.11. 101.101 to send 5 ping packets to the destination IP address. There are no options for this command.

How do I flush VPN tunnel in FortiGate?

Flush/reset a VPN tunnel

Replace my-phase1-name with the name of the Phase1 part of your VPN tunnel. If you do not specify a name, all tunnels will be "flushed". Replace my-phase1-name with the name of the phase1 part of your tunnel. Like with the "flush" command, not specifying a tunnel name will reset all tunnels.

How does FortiGate IPS work?

The FortiOS Intrusion Prevention System (IPS) combines signature detection and prevention with low latency and excellent reliability. With intrusion protection, you can create multiple IPS sensors, each containing a complete configuration based on signatures. Then, you can apply any IPS sensor to any security policy.

How does IPsec VPN Work?

IPsec is a group of protocols that are used together to set up encrypted connections between devices. It helps keep data sent over public networks secure. IPsec is often used to set up VPNs, and it works by encrypting IP packets, along with authenticating the source where the packets come from.

Does all data go through VPN?

A VPN creates a secure connection between you and the internet. When you connect to the internet through a VPN, all your data traffic is sent through an encrypted virtual tunnel.

Can VPN track your activity?

VPNs Can Track You, and They Might

The main selling point of using Virtual Private Networks, or VPNs, is to protect your privacy. A VPN company may log all the traffic passing through their system, which essentially gives them a full picture of a user's online browsing behavior.

Does all traffic go over VPN?

With a “Host to Everywhere” setup, all traffic – except traffic to the local network(s) – goes through the VPN. A Host to Everywhere connection requires a suitable setup on the VPN gateway.

How do I know if Openvpn is working?

The service you should check is openvpn@NAME where NAME is the name of your configuration file (without the . conf ). So if your openvpn configuration file is /etc/openvpn/client-home.

Who can see your traffic VPN?

The answer is dictated by the provider you choose, but technically all VPN companies can see your traffic and history. However, most of them choose to discard that information directing it to a “null” file or folder. These are the so-called no-log companies.

Can network admin see VPN traffic?

1 Answer. Yes, and you may not be as obscured as you think. They can't tell what you're saying to a VPN server (because it's encrypted), including what sites you're accessing via the VPN, but they can tell that you are connecting to that VPN server.

Does a VPN hide traffic from work?

A VPN isn't invisible, it just masks the traffic that is being transported, so your employer and ISP could know that there is traffic passing that they can't see and your employer might then come looking to ask why you are using unauthorised software or at least what the purpose of this VPN is.

How do I monitor FortiClient VPN?

Monitoring SSL VPN users

You can monitor web-mode and tunnel-mode SSL VPN users by username and IP address. To monitor SSL VPN users, go to VPN > Monitor > SSL-VPN Monitor. To disconnect a user, select the user and then select the Delete icon.

How check SSL VPN log in FortiGate?

1. Logging VPN events. You can configure the FortiGate unit to log VPN events.
2. To log VPN events.
3. Go to Log & Report > Log Settings.
4. Verify that the VPN activity event option is selected.
5. Select Apply.
6. To view event logs.
7. Go to Log & Report > VPN Events.
8. Select the Log location.

How do I set up FortiClient VPN?

Now to configure the optional IPSec VPN connection:

1. For VPN select "IPSec VPN"
2. For Connection Name enter "VPN@Ed - IPSec"
3. For Description enter "IPSec VPN Connection to UoE"
4. For Remote Gateway enter "remote.net.ed.ac.uk"
5. For Authentication Method select "Pre-shared key"
6. In the field below enter "Zt6337ZnVLhN"

How do you check for FortiClient logs?

log ) from FortiClient. Go to Settings. Expand the Logging section, and click Export logs.

How do I create a FortiGate report?

Generating a report manually

1. Go to Log and Report > Report Settings > Configuration.
2. Click to select the report profile whose settings you want to use when generating the report.
3. Click Generate.

What is Dtls FortiGate?

DTLS allows SSL VPN to encrypt traffic using TLS and uses UDP as the transport layer instead of TCP. This avoids retransmission problems that can occur with TCP-in-TCP. FortiClient 5.4.0 to 5.4.3 uses DTLS by default. FortiClient 5.4.4 and later uses normal TLS, regardless of the DTLS setting on the FortiGate.

What is Forti manager?

FortiManager provides Automation-Driven Centralized Management of your Fortinet devices from a single console for full administration and visibility of your network devices through streamlined provisioning and innovative automation tools.

How do I troubleshoot IPsec VPN?

There are a few different set of things need to be checked.

1. Check the phase 2 proposal encryption algorithm, authentication algorithm or hash, and lifetime are the same on both sides.
2. Check VPN Encryption Domain (Local and remote subnet) should be identical.
3. Check correct ACL should binding with Crypto Map.

How do I troubleshoot IPsec VPN connectivity issues?

Ensure ACLs / firewall rules are not blocking traffic. Review Status > Tunnels > IPSec counters for bytes in and/or out. tcpdump on WAN interface to see if ESP traffic is being sent/received. Ensure routing is correctly configured on both sides of the tunnel.

How do I FortiGate VPN with IPsec?

To configure the IPSec VPN tunnels on a FortiGate 60D firewall:

1. Configure the VPN Parameters. Define the VPN parameters for the primary and backup VPN tunnels.
2. Define the IPv4 Policies. Define the IPv4 policies to allow access to the newly configured tunnels.
3. Establish the Static Routes.
4. Define the Policy Routes.

How do I access IPsec for SSL VPN users?

To add policies to FGT_1:

1. Go to Policy & Objects > IPv4 Policy.
2. Click Create New to create a policy that allows SSL VPN users access to the IPsec VPN tunnel.
3. For Incoming Interface, select ssl.
4. For Outgoing Interface, select the IPsec tunnel interface to_FGT_2.
5. Set the Source to all and the VPN user group.

How do I check my IPsec connection?

Testing IPsec Connectivity

1. Navigate to Diagnostics > Ping.
2. Enter an IP address on the remote router within the remote subnet listed for the tunnel in the Host field (e.g. 10.5.
3. Select the appropriate IP Protocol, likely IPv4.

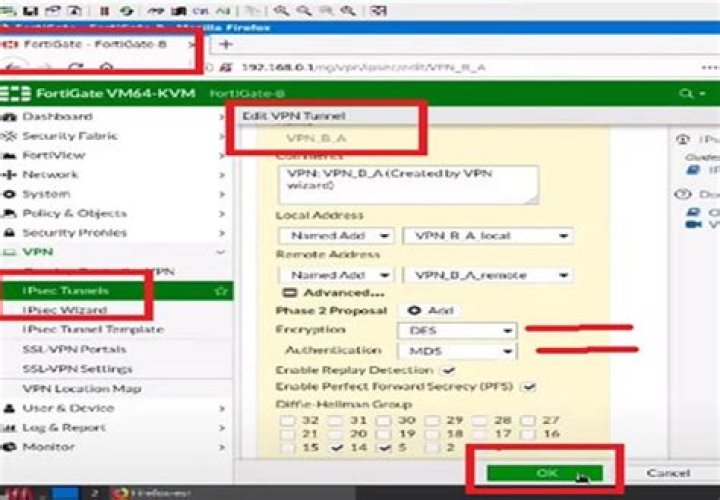

How do I change my VPN tunnel name in FortiGate?

To configure the IPsec VPN at HQ:

1. Enter a VPN Name.
2. For Template Type, click Custom.
3. Uncheck Enable IPsec Interface Mode.
4. For Remote Gateway, select Static IP Address.
5. Enter IP address, in this example, 15.1.
6. For Interface, select port9.

How do I disable IPSec tunnel FortiGate?

Enable or disable an IPSec tunnel.

1. Network. IPSec Tunnels. and select the tunnel you want to enable or disable.
2. At the bottom of the screen, click. Enable. or. Disable. .

How do I monitor IPSec tunnel?

To check if the tunnel monitoring is up or down, use the following command:

1. > show vpn flow.
2. id name state monitor local-ip peer-ip tunnel-i/f.
3. ------------------------------------------------------------------------------------
4. 1 tunnel-to-remote active up 10.66.24.94 10.66.24.95 tunnel.2.

How do I enter Vdom in FortiGate command line?

On FortiGate 60 series models and lower, VDOMs can only be enabled using the CLI.

To enable multi VDOM mode in the GUI:

1. On the FortiGate, go to System > Settings.
2. In the System Operation Settings section, enable Virtual Domains.
3. Select Multi VDOM for the VDOM mode.
4. Click OK.
