How does OpenStack do network isolation on the system level in Vxlan?

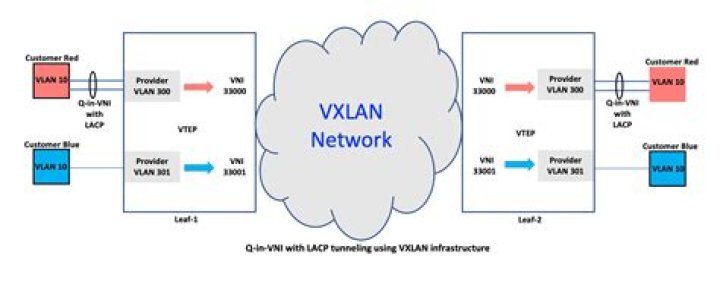

Within an OpenStack cloud, virtual machine instances are unaware that VXLAN is used to forward traffic between hosts. As a result, VXLAN networks are effectively isolated from other networks in the cloud and require the use of a Neutron router to provide access to connected instances.

Consequently, how does Vxlan work in OpenStack?

The networking part of Openstack provides several models for the L2 networks to be used as L2 tenant broadcast domains. An overlay network can be used to separate the MAC addresses and „vlans“ of the tenant networks from the transport layer network.

Subsequently, question is, what is the functionality of an internal network in an OpenStack environment? OpenStack Networking enables projects to create advanced virtual network topologies which may include services such as a firewall, a load balancer, and a virtual private network (VPN). Networking provides networks, subnets, and routers as object abstractions. These software-defined networks connect directly to the VMs.

In this way, what is provisioning network in OpenStack?

Provisioning. The director uses this network traffic type to deploy new nodes over PXE boot and orchestrate the installation of OpenStack Platform on the Overcloud bare metal servers. This network is predefined before the installation of the Undercloud.

What is ml2 plugin in OpenStack?

The Modular Layer 2 (ML2) neutron plug-in is a framework allowing OpenStack Networking to simultaneously use the variety of layer 2 networking technologies found in complex real-world data centers. The ML2 framework distinguishes between the two kinds of drivers that can be configured: Type drivers.

Related Question Answers

What is OVS in OpenStack?

Open vSwitch is an open-source project that allows hypervisors to virtualize the networking layer. This caters for the large number of virtual machines running on one or more physical nodes. In OpenStack, both the Neutron node and the compute node (Nova) are running Open vSwitch to provide virtualized network services.

What is tenant in OpenStack?

In OpenStack user interfaces and documentation, a group of users is referred to as a project or tenant. When authentication moved into the OpenStack Identity (keystone) project, it used the term tenant to refer to a group of users.

What happens when a new compute instance is started from a glance image?

What happens when a new compute instance is started from a Glance image? The image is locked so no other compute instances can use it. The image is copied, either from Glance or a cache, to the computing node that will start the instance. The image is shared via NFS to PXE boot the new instance from it.

Which tool can do virtual and physical resource monitoring in OpenStack?

There are many third party monitoring tools and frameworks for monitoring physical and virtual resources provided and operated upon by cloud management frameworks. These third party tools include Nagios , Munin and Zabbix .

What are the networking options used in OpenStack?

OpenStack Networking

Provider networks.
Self-service networks.
Subnets.
Subnet pools.
Ports.
Routers.
Security groups.
Extensions.

What is the core orchestration component with OpenStack?

Heat is the orchestration component of OpenStack, which allows developers to store the requirements of a cloud application in a file that defines what resources are necessary for that application. In this way, it helps to manage the infrastructure needed for a cloud service to run.

How do I create a provider network in OpenStack?

Create the provider network¶

On the controller node, source the admin credentials to gain access to admin-only CLI commands: $ .
Create the network:
Create a subnet on the network:

How do I create a public network in OpenStack?

Create a router

Log in to the dashboard.
Select the appropriate project from the drop down menu at the top left.
On the Project tab, open the Network tab and click Routers category.
Click Create Router.
In the Create Router dialog box, specify a name for the router and External Network, and click Create Router.

How do I access OpenStack instance from outside?

If you need to access the horizon from outside VMware: Create two interfaces in VM, one with NAT and other with Host-Only networking. Use the NAT IP for internet and Host-Only networking IP as HOST_IP for openstack setup. Install the openstack and then you will have horizon link as

How install ISO file in OpenStack?

Procedure 7.1. To load an ISO image to an Image Service data store

Obtain the ISO image.
In the Image Service, run the following command: $ glance image-create --name ubuntu.iso --is-public True --container-format bare --disk-format iso < ubuntu-13.04-server-amd64.iso.
Optionally, confirm the upload in Compute.

What is security group in OpenStack?

A security group is a named collection of network access rules that are use to limit the types of traffic that have access to instances. When you launch an instance, you can assign one or more security groups to it.
