How install IP camera to NVR?

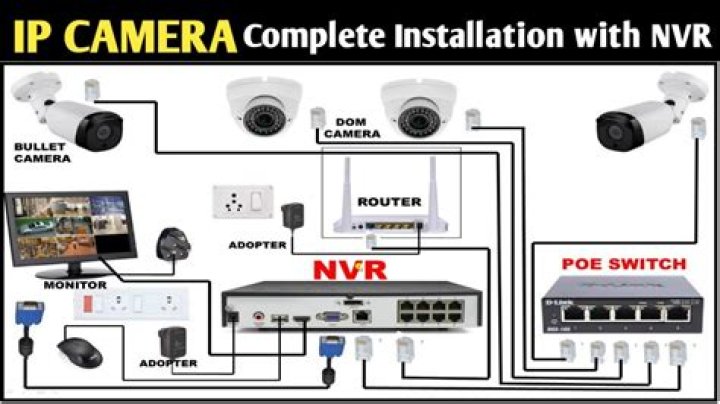

How to Configure NVR for IP Camera with a PoE Switch?

Take the Ethernet cable from the router and connect it at the back of NVR. Ensure that NVR is connected to the Internet.
Use Ethernet cables to connect the IP cameras to PoE NVR.
Take an HDMI cable or a VGA cable to connect NVR and TV or monitor.

Also, can I connect IP camera directly to NVR?

NVR without Power over Ethernet means it has no Ethernet ports on the back panel, so it can not be connected to IP cameras directly, which requires an external PoE switch or a power adapter to provide power to each IP camera.

Furthermore, do you need NVR for IP camera? Without DVRs or NVRs, IP cameras can still work independently as standalone surveillance devices, just like the security cameras with SD card. Better yet, you can also connect an IP camera to your phone, computer, laptop, TV without a DVR/NVR to stream live feed.

Also question is, how install IP camera step by step?

Network configuration

Connect the network camera to your Local Area Network (LAN). A LAN is often the home network of a consumer.
Find the IP address of the network camera. There are a few ways to do it.
Fix the IP address (i.e. make the IP address static).
Start using the Wi-Fi.
Find the new IP again.

How do I add Onvif camera to NVR?

Step by Step Instructions

From the Main Menu Select Camera.
Select Manual add.
You can select the brand of the third party camera or ONVIF.
Enter the IP address of the 3rd party camera.
Default ports are RTSP port 554 and HTTP Port 80.

Related Question Answers

How many IP cameras can a NVR handle?

9 Network Cameras

Does NVR need to be connected to router?

The NVR supports an external hard disk from the SATA interface. This NVR ensures the best quality and highest performance in network video recording. If you are using a network router / DHCP server in your system, you need to connect your Standalone NVR to your network on Ethernet Port1.

Which is better NVR or DVR?

As NVR recorders receive a pure digital signal from the cameras, video quality is better than compared to a DVR at the same resolution. In addition, as Ethernet cables carry audio, all cameras with microphones could record audio to the NVR.

How do I connect my NVR camera to my wireless IP camera?

Please follow these steps to setup the camera to your wireless network:

Connect the camera to your router using an Ethernet cable. Also, use the supplied power supply to power the camera.
Once the camera is powered and connected to the network, use our SADP software to pick up the IP address.

How do I connect to IP camera?

How to view your IP camera remotely via a web browser

Find your camera's IP address.
Open a web browser and type the IP address.
Go to SETTING > BASIC > Network > Information to find the HTTP port number used by the camera.
After you change the port, you will need to reboot the camera in order to save the changes.

Do IP cameras need power?

Same as all other electronic devices, IP cameras need power. IP camera is known as network camera. So the network is required for communicating. Power over Ethernet allows power and network transmit over single Ethernet cable.

What does NVR mean?

Network Video Recorder

What is needed for IP camera system?

A computer network required by an IP system is called a Local Area Network (LAN), which is basically a PoE switch connected to the cameras and the NVR. Internet is only needed if you would like to have remote viewing capabilities to watch your IP surveillance system over the internet when you are away.

How do I use IP Camera app?

Android

Connect your computer and the phone to the same Wi-Fi network.
Install the IP Webcam app on your smartphone.
Close all other camera apps.
Launch the IP Webcam app.
The app will now fire up your phone's camera and display a URL.
Enter this URL in any browser on your computer and hit Enter.

How do I connect my IP camera to my phone?

How can I connect my Android phone to my camera via Wi-Fi?

Enable the hotspot function in your Android phone, i.e., you set up a Wi-Fi network on your Android phone.
Connect the camera to the Android phone's hotspot-enabled Wi-Fi network.
You should now have a direct connection between the phone and the camera, and be able to use FLIR Tools Mobile.

Can I connect IP camera directly to PC?

You can connect your IP camera directly to a PC via network cable as long as you have a power supply to power up the camera and minimum skills for the setup. The process takes just a few minutes, so get ready to have your IP camera up and running by the end of this article.

What is IP camera system?

An Internet Protocol camera, or IP camera, is a type of digital video camera that receives control data and sends image data via an IP network. They are commonly used for surveillance but unlike analog closed-circuit television (CCTV) cameras, they require no local recording device, only a local area network.

How do I find my camera IP address?

Firstly go to the My Camera page in the app, tap the arrow to the right of the camera and then select the "Edit camera" symbol. You will then be taken to the Edit Camera screen, from here tap Advanced Settings, then on the Advanced Settings page tap About device. The cameras IP address will be shown under "local".

What is the difference between an IP camera and CCTV?

CCTV systems convert the video signal to a format that can be used by televisions, VCR's, or DVR's. IP cameras convert the video signal into IP packets to be transmitted over the data network or internet to a network storage device such as a server, NAS, or by storing on board the camera.

Why won't my IP camera connect?

Make Sure There Is No Signal Interference. If there is a bad reach, the IP camera can't find your WiFi signal, and it cannot connect to the WiFi. The IP camera should not be too far from the router. Check the distance between the IP camera and the router.

Can I use NVR without hard drive?

All Solutions - Does a DVR/NVR System Work Without a Hard Disk Drive. The answer is YES. The system does work without a hard disk drive. You won't have any video footage for playback for the lack of a hard disk.

Will NVR work without Internet?

To answer these questions, NVR can function even without WiFi or Internet access. Just make sure that it is always connected with the cameras. If so, you will not have any problem with the NVR, even without Internet or WiFi connection.

What is the best NVR software?

Blue Iris (Security and Webcam Software)
Ivideon Server (Best Free IP Camera Software)
SmartViewer (Software for Both nvr or dvr)
ZoneMinder.
C-MOR IP Video Surveillance VM Software.
Freedom VMS.
Contaware ContaCam.
SGS HomeGuard Free.

Can I connect PoE switch directly to NVR?

A PoE switch expands a network created by a router. Therefore, it must be connected directly to a router on the same network as your NVR.

What is the best PoE camera system?

Highlights of the Best PoE Security Camera Systems

Swann 4K PoE Cameras with 8 CH NVR - Best PoE Camera System with Smart Platform Integrations.
Reolink 5MP PoE Cameras with 16 CH NVR - Best PoE Camera System for Local Video Storage.
Lorex 4K PoE Cameras with 8 CH NVR - Best 4K PoE Camera System.

What is Onvif protocol?

ONVIF – an acronym standing for Open Network Video Interface Forum – is both a global forum and a global protocol that allows different surveillance and security devices from different manufacturers to operate together seamlessly.

How long will a 2tb NVR record?

How long can a HDD record for your DVR/NVR?

Recording channels	500G HDD	2TB HDD
4 channels	9.7 days	Thirty eight days
8 channels	4.8 days	Twenty days
16 channels	Four days	Sixteen days

Where do I put NVR?

Ideally, the NVR should be placed in a secure area with easy access to wiring access areas, such as a utility room. For businesses with an IT room or closet, this is the best place for the NVR. The NVR can tie into your existing cable and network infrastructure and can be rack mounted for a clean installation.

How do I configure my Onvif camera?

To connect an IP camera via ONVIF, please make sure the device is compliant with ONVIF. Go to Surveillance Center/Settings/Camera and click [Add]. Select the option to search for the devices on your local network. Select a camera from the result list that you want to connect to Surveillance Center.

How do I add a third party IP camera to Hikvision NVR?

Once you're logged in via the IP address of the NVR, click on [Configuration] – [Remote Configuration] – [Camera Management] select camera and click on [Add] and now you can select the manufacturer, Protocol or RTSP.

How can I add IP camera to NVR Hikvision?

1, Connect your camera to the POE port of the switch. Connect your NVR to the same switch. 2, Go to Camera Management->Camera->IP Camera, select any channel and click Edit. 3, Select Manual, type in the IP Camera Address & User Name & Admin Password, click OK.

Is hikvision an Onvif?

Hikvision and Dahua Technology has been “suspended,” and effectively expelled, from ONVIF. Hikvision and Dahua Technology are the latest Chinese tech companies to be suspended and expelled from ONVIF. Since ONVIF's standards are public, the Chinse company said they can continue to develop using ONVIF's specifications.

How do I connect my IP camera to my wireless router?

How to use Wireless Security Cameras with a WiFi Router

Step 1: Determine the Wifi strength of your wireless network.
Step 2: Power and Configure the Wireless Security Camera for your Network.
Step 3: Access the IP Camera's Web Interface.
Step 4: Configuring the WiFi Address.
Step 5: Connect to Your Wireless Router.

What does IP camera exception mean?

This is because the port is trying to connect to the camera on its original IP address. If you have any sort of network scanner app on a laptop - plug it into a spare port on the NVR and scan the 192.168. 254 subnet and you should be able to find it's new IP.

What is Onvif compatible?

ONVIF (Open Network Video Interface Forum) is a global and open industry forum that was formed to facilitate the development and use of a global open standard for physical IP-based security products. The forum aims to standardize how IP products within the video surveillance industry communicate with each other.

How do I add IP camera to Dahua NVR?

Step by Step Setup

Plug the Ethernet cable into the powered NVR or HCVR, then plug the other side into powered PoE switch.
Now go into the NVR or HCVR's MAIN MENU and select CAMERA under SETTINGS.
Under REMOTE on the left hand column, and the Remote Devices tab select Device Search.
Try to add this camera.
