How is diversion weir aligned?
Noah Mitchell
Published Apr 06, 2026

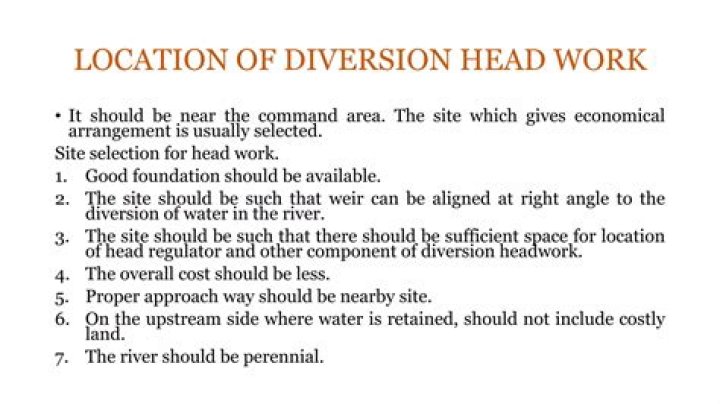

Weirs are usually aligned at right angles to the direction of flow in the river. Such weirs will have the minimum length and normal uniform flow through all the weir bays thereby minimising the channels of shoal formation and oblique flow. To increase the water level, the weir crest is raised above the river bed.
Furthermore, what is diversion weir?
SEARCH. Home > Resources > Irrigation > Source of Irrigation > Diversion Weirs. DIVERSION WEIRS. Weir is a low obstruction that is built across a river or canal to raise the water level, or in parallel to divert the water. Two types of weirs are used to control flow; an in-stream weir and a diversion weir.
Also, what are diversion head works? Weir or barrage is constructed across a perennial river to raise water level and to divert the water to canal, is known as diversion head work. ? Flow of water in the canal is controlled by canal head regulator.
Simply so, which of the structure are diversion structure?
Diversion structures route runoff in excess of base flow to storage facilities during wet periods, for later use during dry periods. Transverse dikes are built in sections along a river to store excessive runoff. These dikes can be built using material dredged from the river or transported from adjacent lands.
Which of the following are the objectives of diversion headworks?
Diversion headworks serve to raise the water level in the river and divert the required quantity into the canal. The various purposes served by diversion headworks are as follows: They raises the water level in the river so that the commanded area is increased. They regulates the supply of water into the canal.
Related Question Answers
What is difference between Weir and barrage?
A weir is an impermeable barrier that is built across a river to raise the water level on the upstream side. On the other hand, a barrage involves adjustable gates installed over a dam to maintain the water surface at different levels and at different times. The water level is adjusted by opening the valves or gates.What are the types of Weir?
Weirs are classified according to:- Types of Weirs based on Shape of the Opening. Rectangular weir. Triangular weir. Trapezoidal weir.
- Types of Weirs based on Shape of the Crest. Sharp-crested weir. Broad- crested weir. Narrow-crested weir. Ogee-shaped weir.
- Types of weirs based on Effect of the sides on the emerging nappe.
What is the purpose of a weir?
Weirs are fixed barriers across a river or stream that force water to flow over their tops, where the height of the water above the weir can be used to calculate flow.What Weir means?
weird, eerie, uncanny mean mysteriously strange or fantastic. weird may imply an unearthly or supernatural strangeness or it may stress peculiarity or oddness. weird creatures from another world eerie suggests an uneasy or fearful consciousness that mysterious and malign powers are at work.What are the functions of an under sluice and silt excluder in a diversion headwork?
Silt excluder is a structure constructed in the bed of a river, u/s of a head regulator to attack the river bed water and divert the same into the d/s of the river. Its main function is to prevent the entry of silt into the canal.Which device is used for silt removal after it enters the canal?
Silt ejectors, also called silt extractors, are those devices which extract the silt from the canal water after the silted water has traveled a certain distance in the off-take canal. These works are, therefore, constructed on the bed of the canal, and little distance downstream from the head regulator.Which type of weir is suitable for any type of foundation?
Explanation: Masonry or concrete slope weir is the one suitable for soft sandy foundation. It is used where difference in weir crest and downstream river is limited to 3m. 12. Weirs can be used to power water wheels and power sawmills.What is Undersluices?
: a sluice covered from view or lying beneath another structure specifically : a wasteway for sluicing out canals in which the waste escapes beneath other structures.What is diversion structure?
Diversion structures consist of ridges or channels that are used to temporarily divert water around or from an area that is under construction or is being stabilized. Specific applications include perimeter control, diversion away from disturbed slopes, and diversion of sediment-laden water to treatment facilities.How do you temporarily divert water?
Temporary diversion methods include temporary diversion channels, pump-arounds, piped diversions, coffer dams and other similar practices. The primary purpose of all temporary diversion methods is to protect water quality by passing upstream flows around the active construction zone.Is code for Weir design?
0.5 This standard is one of a group of standards covering the design criteria and general features of barrages and weirs. The other four stan- dards already published are IS : 6966-1973*, IS : 7349-1974t, IS : 7720-1975# and IS : 8408-19768. *Criteria for hydraulic design of barrages and weirs.What are diversion channels?
Diversion channels are mostly artificial channels designed to divert excess amount of water to prevent flooding, erosion and landsliding. river diversion channels; runoff diversion channels.What is the purpose of a water diversion project?
Water diversions consist of a system of structures and measures that intercept clear surface water runoff upstream of a project site, transport it around the work area, and discharge it downstream with minimal water quality degradation for either the project construction operations or the construction of the diversion.What is afflux in Weir?
(vi) Amount of Afflux:When the weir obstructs the flow of water in the river the water heads up on the upstream side of the weir. This rise is maximum during floods . The amount by which the level rises above the normal level is known as afflux.
How do you divert a river flow?
Dams and weirs are primarily intended to divert the river flow into the water conveyance system leading to the powerhouse. Dams also produce additional head and provide storage capacity.What is diverting water?
A water diversion is the removal or transfer of water from one watershed to another. The term “consumptive use” is used to define diversions and exports, because the water is being “consumed” without then returning to its source.Why divide wall is provided at the upstream A barrage?
It is extended up to the upstream end of the canal head regulator. In case of one canal off-taking from each bank of the river, one divide-wall is provided on front of each of the head regulators of the off takes. To keep the cross-section, if any, away from the canal. To serve as a trap for coarser bed material.What is the difference between headworks and barrage?
Headworks is a civil engineering term for any structure at the head or diversion point of a waterway. It is smaller than a barrage and is used to divert water from a river into a canal or from a large canal into a smaller canal.Which type of canal is most useful in hilly areas?
5. Which type of canal is most useful in hilly areas? Explanation: The idea of watershed canal in hilly areas is does not work because it is highly uneconomical, since the river flows in valley below the ridge. And the watershed may be hundreds of meters above the river.How many components the diversion headwork is divided?
eight component partsWhat is the main function of a diversion head works of a canal from a river?
Diversion headworks is a structure constructed across a river for the purpose of raising the water level in the river so that it can be diverted into the off taking canals.Which canal is not provided with any head works for diversion of river water?
inundation canalWhat is head regulator?
1. Functions of Head Regulators: It is a structure constructed at the entrance (the head) of the canal where it takes off from the river (Fig. 12.11).How many types of falls are present?
4. How many types of falls are present? Explanation: Since the idea of the construction of falls various types of falls have been designed. Some important falls are ogee falls, rapids, trapezoidal notch falls, simple vertical drop type and sarda type falls, straight glacis falls, Montague type falls and inglis falls.How can we improve the duty of water?
How can we improve the duty of water? Explanation: By lining of canals, carrying irrigation supplies we can reduce seepage and evaporation losses. Therefore reducing the field requirement of water increases the duty.In which type of weir energy dissipation takes place?
The test series showed that the energy dissipation at a labyrinth weir differs from other weir types due to its geometry. Because of the interaction between the lateral nappes and the resulting three-dimensional flow, air entrainment and shockwaves increase the energy dissipation.What type of weir does the diagram represent?
5. What type of weir does the diagram represent? Explanation: The figure represents a sloping weir made up of dry stone or rock fill. Explanation: Weir is an obstruction across the river to raise its water level and divert into new channel.What are the causes of failure of Weir?
Causes of failure of Weirs & their Remedies- Excessive and progressive downstream erosion, both from within the stream and through lateral erosion of the banks.
- Erosion of inadequately protected abutments.
- Hydraulic removal of fines and other support material from downstream protection (gabions and aprons) resulting in erosion of the apron protection.
