How is pulse width measured?

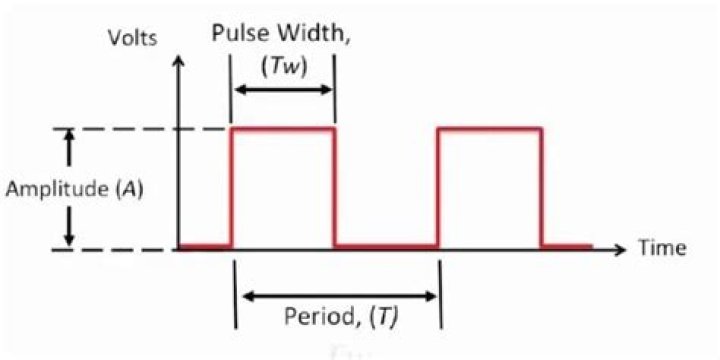

Pulse Width (PW) is the elapsed time between the rising and falling edges of a single pulse. To make this measurement repeatable and accurate, we use the 50% power level as the reference points. Pulse Repetition Interval (PRI) is the time between sequential pulses.

Thereof, how do you calculate pulse width?

Note the width, in seconds or microseconds, of each pulse. This is the pulse width, or PW, of the signal. Calculate the period, or "T", of the frequency, or "f," using the formula: T = 1/f. For example, if the frequency is 20 hz, then T = 1/20, with a result of 0.05 seconds.

Similarly, what is meant by pulse width? Pulse Width (Laser Welding) When the laser is in pulse mode the duration of the pulse is known as the pulse width. In many process applications pulse width is used to tune the process, as opposed to peak power which is the gross process adjustment.

Additionally, what does pulse width mean?

Pulse Width Modulation, or PWM, is a technique for getting analog results with digital means. Digital control is used to create a square wave, a signal switched between on and off. The duration of "on time" is called the pulse width.

How do you calculate frequency and pulse width?

Note the width, in seconds or microseconds, of each pulse. This is the pulse width, or PW, of the signal. Calculate the period, or "T", of the frequency, or "f," using the formula: T = 1/f. For example, if the frequency is 20 hz, then T = 1/20, with a result of 0.05 seconds.

Related Question Answers

What is the difference between duty cycle and pulse width?

Electrical and electronics In electronics, duty cycle is the percentage of the ratio of pulse duration, or pulse width (PW) to the total period (T) of the waveform. For example, a signal (10101010) has 50% duty cycle, because the pulse remains high for 1/2 of the period or low for 1/2 of the period.

What is meant by pulse width modulation?

Pulse-width modulation (PWM) is used for controlling the amplitude of digital signals in order to control devices and applications requiring power or electricity. To the device, this would appear as a steady power input with an average voltage value, which is the result of the percentage of the on time.

What is a 100% duty cycle?

A piston compressor that specifies a 100 percent duty cycle does not mean it can run continuously, but that it can provide air at a specific pressure and flow 100 percent of the time with the help of a storage tank. A compressor advertises a 100 percent duty cycle rating of 25 cfm at 100 psi.

Is pulse width the same as pulse duration?

Pulse width (aka pulse duration) in resistance spot welding is defined as the length of time - in milliseconds or line cycles - that the weld current flows through the parts. In some cases there is only one pulse per weld (single pulse), but it is not uncommon to have two pulses per weld (dual pulse).

What is the difference between duty cycle and frequency?

The duty cycle describes the amount of time the signal is in a high (on) state as a percentage of the total time of it takes to complete one cycle. The frequency determines how fast the PWM completes a cycle (i.e. 1000 Hz would be 1000 cycles per second), and therefore how fast it switches between high and low states.

What is a trigger pulse?

A trigger pulse is an asynchronous event that causes a specific change in logical state. Typically, it is wired to the "set" or "reset" input of a stateful circuit element. Examples of user-generated trigger pulses are all around us in the modern world.

How do I know my duty cycle?

Duty cycle is measured in percentage of ON time. Example: A 60% duty cycle is a signal that is on 60% of the time and off 40% of the time. An alternate way to measure duty cycle is dwell, measured in degrees instead of percent.

Is PWM AC or DC?

It is neither AC nor DC, but it is closer to being DC in waveform. PWM was often used to encode a RF signals with information.

How do you measure dwell with a multimeter?

How to measure duty cycle

1. Set the digital multimeter (DMM) to measure frequency.
2. First insert the black test lead into the COM jack.
3. Then insert the red lead into the V Ω jack.
4. Connect the test leads to the circuit to be tested.
5. Read the measurement in the display.

Why do we use PWM?

A Pulse Width Modulation (PWM) Signal is a method for generating an analog signal using a digital source. PWM signals are used for a wide variety of control applications. Their main use is for controlling DC motors but it can also be used to control valves, pumps, hydraulics, and other mechanical parts.

How does pulse width modulation work?

As its name suggests, pulse width modulation speed control works by driving the motor with a series of “ON-OFF” pulses and varying the duty cycle, the fraction of time that the output voltage is “ON” compared to when it is “OFF”, of the pulses while keeping the frequency constant.

Why PWM is used in inverter?

Pulse Width Modulation or PWM technology is used in Inverters to give a steady output voltage of 230 or 110 V AC irrespective of the load. In addition to the pulse width modulation, the PWM Inverters have additional circuits for protection and voltage control.

What is PWM and its application?

A Pulse Width Modulation (PWM) Signal is a method for generating an analog signal using a digital source. PWM signals are used for a wide variety of control applications. Their main use is for controlling DC motors but it can also be used to control valves, pumps, hydraulics, and other mechanical parts.

What are the types of PWM techniques?

The different PWM techniques are Single pulse width modulation, Multiple pulse width modulation, Phase displacement control, Sinusoidal pulse width modulation, Harmonic Injection modulation, Space Vector pulse width modulation, Hysteresis (Delta) pulse width modulation, Selective Harmonic Elimination and Current

Why do we need pulse width modulation?

A Pulse Width Modulation (PWM) Signal is a method for generating an analog signal using a digital source. PWM signals are used for a wide variety of control applications. Their main use is for controlling DC motors but it can also be used to control valves, pumps, hydraulics, and other mechanical parts.

Why do we use pulse width modulation?

Pulse Width Modulation (PWM) is a commonly used technique for generally controlling DC power to an electrical device. PWM can be used to adjust the total amount of power delivered to a load without losses normally incurred when a power transfer is limited by resistive means.

What is PWM and how it works?

PWM works by pulsating DC current, and varying the amount of time that each pulse stays 'on' to control the amount of current that flows to a device such as an LED. PWM signals are typically square waves, like the one in the illustration below. A PWM signal (square wave) with a 50% duty cycle.

Does PWM reduce current?

So PWM switches the power, current, voltage. It does not reduce it. The end effect is to regulate the amount of power provided to the load. One of the advantages of PWM is for motors the torque is not reduced nearly as much as regulation of the speed by reducing the voltage.

What is pulse rate measured in?

Your pulse is the rate at which your heart beats. Your pulse is usually called your heart rate, which is the number of times your heart beats each minute (bpm). But the rhythm and strength of the heartbeat can also be noted, as well as whether the blood vessel feels hard or soft.

What is minimum pulse width in VLSI?

Minimum pulse width checks are done to ensure that width of the clock signal is wide enough for the cell's internal operations to complete. If you need a formal definition of the term, it is the interval between the rising edge of the signal crossing 50% of VDD and the falling edge of the signal crossing 50% of VDD.

How do you calculate pulse frequency?

Pulse frequency is calculated by dividing 1000 by the total cycle time (on-time + off-time) in microseconds (44).

What is pulse width electronics?

Pulse Width Modulation (PWM) is a fancy term for describing a type of digital signal. Pulse width modulation is used in a variety of applications including sophisticated control circuitry. A common way we use them here at SparkFun is to control dimming of RGB LEDs or to control the direction of a servo.
