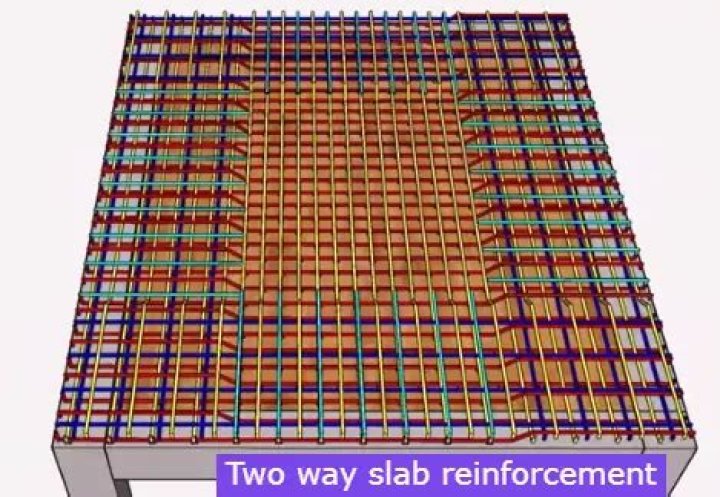

How reinforcement is provided in two way slab?

Slabs are supported by beams on all the four sides. Main Reinforcement is provided along both the directions in two way slabs. Loads are carried along one direction in one way slab. Loads are carried along both the directions in two way slabs.

Beside this, why corner reinforcement is provided in two way slab?

Torsional reinforcement shall be provided at corner of two way slab. The torsional moment are high near the corner therefore, torsional reinforcement is essential to prevent corner slab from lifting and prevents cracks.

Additionally, what is two way slab design? Generally, there are two types of slab which are one way and two way slabs. The one-way slab is deflected in one way direction and primary reinforcement is placed in one direction whereas the two-way slab deflect in two directions and primary reinforcement placement is in two directions.

Keeping this in consideration, why main reinforcement is provided along the shorter span in one way slab?

One way slab means the loads are distributed amongst the supports at two sides only and the slab will bend in between those two supports (Shorter Span) hence main Reinforcements are to be provided along those direction, as the flexural tensile stress will develope along that path.

How do you reinforce a slab?

PREPARE the ground.
FIX the edge formwork.
INSTALL service pipes.
LAY concrete underlay.
FIX steel reinforcement in the beams.
FIX steel reinforcement in the slabs.
PLACE and compact the concrete.
FINISH the slab surface.

Related Question Answers

What is the minimum thickness of slab?

UBC recommends minimum thickness of Concrete floor slabs supported directly on the ground to be 89mm, whereas BCGBC4010A – Apply structural principles to residential low-rise constructions determined minimum thickness to be 100mm.

Where should rebar be placed in a slab?

Therefore, for a typical 100 mm residential concrete slab, the rebar should be placed at a depth of approximately two thirds the slab thickness from its surface. Placing the rebar at the bottom of the slab will provide no benefit to the concrete.

What is main reinforcement slab?

Main reinforcement normally used at the bottom of the slab. Distribution bars placed on top of the main bar. Main Reinforcement bars are placed in shorter direction and Distribution bars placed in longer span direction. Main Reinforcement Bars are used to transfer the bending moment developed at the bottom of the slab.

What is effective depth of slab?

What is the effective depth in beams or slabs? How is it calculated? Effective depth is the distance between extreme compression fiber to the centroid of tension reinforcement in a section under flexure.

Where is one way slab used?

Types of Designs for One-way Slab

There are mainly three types of designs for one-way slab.
In one-way solid slab (with beams) system, the slab is supported on beams.
One-way Ribbed Slab (with beams)system is used for the office buildings (low rise), parking structures, and warehouses.

How is roof slab reinforcement calculated?

Steps to calculate the Reinforcement required for Slab:-

Deduct the cover for finding length of bar.
Evaluate the length of the distribution bar.
Calculate the Value of 'D' (Depth of slab- Top cover- Bottom cover)
Find out the No. of Bars.
Compute the Total wt of steel required for slab reinforcement.

How many types of slabs are there?

There are four different types of concrete Flat Slabs:- Slab without drop and column without column head(capital). Slab with drop and column without column head. Slab without drop and column with column head. Slab with drop and column with column head.

How do you know if a slab is two way?

If the ratio of longer span to shorter span is greater than or equal to 2, it is one way slab. If the ratio of longer span to shorter span is less than 2, it is two way slab. One has to know the ratio of longer span to shorter span & should know about reinforcement distribution to call it as one way or two way slab.

Which slab is best one way or two way?

In one way slab the slabs are supported by the beams on the two opposite sides. In two way slab the slabs are supported on all the four sides . 2. In one way slab the loads are carried along one direction.

Why crank bar is used in slab?

The crank bars or bent up bar are very important in R.C.C beam or slabs construction because without countering the Hogging (Negative moment) the structure will fail or the strength of the structure will reduce. The hogging bending moment will develop at the supports of the slabs and beams.

What is the function of providing distribution steel in a slab?

Distribution steel is provided to resist cracks due to temperature and shrinkage effects in Rcc structures. One way slabs are designed as beam strips of width of 1000mm . Suppose for sagging moment the beam undergoes compression at top and tension at bottom.

Where is two way slab used?

#2 Two Way Slab: In two way slabs, load will be carried in both the directions. So, main reinforcement is provided in both direction for two way slabs. Example: These types of slabs are used in constructing floors of multi storeyed building.

What do you understand by minimum reinforcement of slab?

Originally Answered: What is the minimum reinforcement in slabs? 0.12% of Gross area(B*D) of slab, If HYSD, CTD bars are used. 0.15% of Gross area (B*D) of slab, If Mild steel bars are used. Maximum spacing of main bars in slab is 3d or 300mm whichever is minimum.

Why reinforcement is provided in top layer of slab?

Distribution bars placed on top of the main bar. Main Reinforcement Bars are used to transfer the bending moment developed at the bottom of the slab. Distribution Bars are used to hold the slabs on either way and to resist the cracks and shear stress developed at the top.

What is the minimum depth of two way slab?

Moreover, the minimum thickness of any two way slab without interior beams should not be less than the following: For slabs without drop panel 125 mm. For slabs with drop panel 100 mm.

How do you design a slab thickness?

Steps to be followed in the design of slab Assume the thickness of slab (take 4 cm per metre run of the span). Find the effective span which is lesser of (i) distance between centres of bearings, and (ii) clear span and effective depth. Find the dead load and the live load per square meter of the slab.

What is the minimum thickness of a slab?

Slab thickness requires a minimum clear distance of one-twelfth the distance between the ribs and not less than 2 inches.

What is slab and its types?

Concrete Slab Types – Construction, Cost, and Applications. Concrete slabs, therefore, are further classified into one-way joist slab, flat slab, flat plate, waffle slab, hollow core slab, precast slab, slabs on grade, hardy slab, and composite slab.

Is code a two way slab?

The one-way slab is deflected in one way direction and primary reinforcement is placed in one direction whereas the two-way slab deflect in two directions and primary reinforcement placement is in two directions. ACI 318-11 Code provides two methods for two way slab design one of which is direct design method.

How far can a concrete slab span?

A one-way reinforced slab may be stronger than a two-way non-reinforced slab, depending on the type of load. One-way slabs are typically 150 to 400 mm in depth and cover spans of 3 to 12 m. Their span-depth ratio is roughly constant at low loadings (i.e. < 10 kN m^-²), and is typically around 36.

Is 456 slab design?

Reinforced concrete slab design and detailing guidelines for depth of slab, loads on slab, reinforcement guide for one-way and two-way slabs as per IS 456:2000 have been tried to present here.

b) Depth of slab:

Type of support	Fe-250	Fe-415
Continuous support	L/40	L/32

What is the minimum thickness of RCC slab?

Do you need rebar for 4 inch slab?

If you don't put rebars in a 4-inch [10 CM] slab, then it won't be reinforced concrete - and won't perform. As a general rule, any section of concrete must have at least 0.25% of its area in rebars to be considered reinforced concrete and do the intended job.

Do I need reinforcement in concrete slab?

Not all surfaces need concrete rebar reinforcement, but adding it makes concrete stronger and more resistant to large cracks. Without rebar reinforcement, concrete is highly prone to cracks due to tension forces. Rebar helps prevent cracks from growing wider largely by preventing cracked slabs from moving apart.

How thick should a concrete slab be for a house?

4 inches

Does rebar strengthen concrete?

Rebar strengthens concrete by adding the element of tension-resisting forces to the overall structure. Adding rebar gives it tensile strength as well—not making the concrete itself any stronger, but bonding well enough to the concrete structure to allow the steel bars to absorb the tensile loading.

How much rebar do I need for 4 slab?

All About Yield Strength The minimum yield strength of standard rebar in the US is 60,000 psi. This means that the bar can have a yield strength greater then that but never less. For example, #3 rebar has a minimum yield strength of 6,600 pounds. The minimum yield strength of #4 rebar is (11,780 lbs.)

Does a concrete slab need wire mesh?

YES When long joint spacing is required or when joints are unacceptable in floor use. Although short joint spacings alleviate the need for reinforcement, wire mesh will allow for increased distance between joints if correctly placed in the upper portion of the slab, at least two inches below the surface.

Can you use chicken wire in concrete?

Materials such as chicken wire, stucco mesh, wire screening, expanded metal, fence wire or fiberglass cloth should never be used as primary reinforcement because their properties are too variable or they are not sufficiently strong. You cannot rely on these materials.

Should I use rebar or mesh?

rebar, the short answer is: use both!” or Mesh is for keeping chickens in the barn. Rebar is for concrete reinforcement.” or “Wire mesh is a costly choice.” Doing concrete right, the first time can provide years of enjoyment and save you the aggravation of having to replace it too soon.

Do you need a subbase for concrete?

WHAT IS A SUBBASE/SUBGRADE? The only layer that is absolutely required is the subgrade—you have to have ground to place a slab on ground on top of. If the natural soil is relatively clean and compactable, then you can put a slab right on top of it without any extra layers.
