How the peaks are identified on chromatogram?

Both chromatograms display a peak at a retention time [t_R] of 2.85 minutes, indicating that each sample contains acrylamide. However, Sample A displays a much bigger peak for acrylamide. The area under a peak [peak area count] is a measure of the concentration of the compound it represents.

Accordingly, how do you find the peak area of a chromatogram?

The area of a peak is proportional to amount of the compound that is present. The area can be approximated by treating the peak as a triangle. The area of a triangle is calculated by multiplying the height of the peak times its width at half height.

Additionally, how do you identify peaks in liquid chromatography? The best way I know of is to connect the HPLC directly to a mass spectrometer (LC-MS). This provides a simple characterization of peaks observed by UV-HPLC. By doing this, you have an additional detection method that can distinguish molecules by their molecular mass – which is perfect for stability studies [1].

Hereof, what are chromatogram peaks?

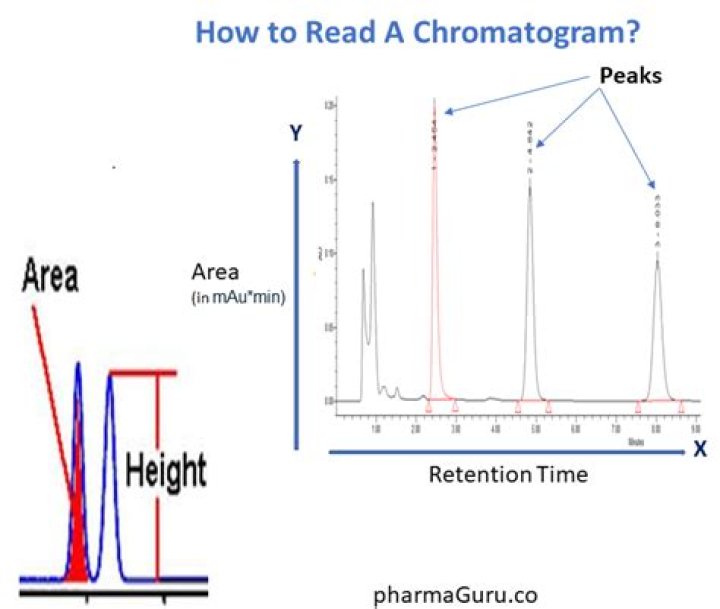

A chromatogram is a representation of the separation that has chemically [chromatographically] occurred in the HPLC system. A series of peaks rising from a baseline is drawn on a time axis. Each peak represents the detector response for a different compound.

Is peak height or peak area a better method?

The repeatability of peak area is much better than that of peak height. The effect of column temperature on peak area is negligible, while it is very important on peak height, because the retention time and the band width increase rapidly with decreasing temperature.

Related Question Answers

How do you find the resolution of two peaks?

Equation (1) indicates that the resolution is the difference between peak retention times divided by the average peak width. In a peak with Gaussian distribution, the peak width is W = 4 σ (where σ is the standard deviation) and the peak FWHM is W0.

How is peak ratio calculated?

Intra-locus peak height ratios (PHR) are calculated for a given locus by dividing the peak height of an allele with a lower RFU value by the peak height of an allele with a higher RFU value, and then multiplying this value by 100 to express the PHR as a percentage.

What does peak height mean?

2.Peak Height Shows your target concentration that means how much your target in your sample. 3. If You get sharp single peak and 100%peak area means your sample is >99%pure.

What relationship does Peak area have to analyte concentration?

(See Figure 1.) The size of the peak is proportional to the concentration of the analyte. If we measure the peak, we can evaluate the concentration of the analyte.

What affects peak area in HPLC?

The peak capacity of a chromatographic system is shown to depend on the column efficiency and the capacity ratio of the most retarded solute.

What is the peak area?

Peak area. The area under the curve of the UV trace to its baseline. This is often correlated with the amount of protein.

What does peak area represent in HPLC?

The area under a peak [peak area count] is a measure of the concentration of the compound it represents. This area value is integrated and calculated automatically by the computer data station. In this example, the peak for acrylamide in Sample A has 10 times the area of that for Sample B.

What should a good chromatogram show?

In general, good chromatography has baseline separation between peaks, and peaks should be symmetric. A long tail on the end of a peak may mean that the sample is interacting with the column material, too much sample has been injected (column overload), or column performance is reduced (column aging).

What does it mean if the chromatogram shows double peaks?

Peak splitting or double peaks is usually symptomatic of a void at column inlet, a partially blocked inlet frit (not necessarily leading to a pressure increase) and anything else that causes a disruption of the sample path where the sample follows multiple paths throughout the column.

What does a gas chromatogram show?

What is gas chromatography? Gas chromatography (GC) is an analytical technique used to separate the chemical components of a sample mixture and then detect them to determine their presence or absence and/or how much is present. These chemical components are usually organic molecules or gases.

What affects peak shape?

The shape of the peak can be affected by factors such as the column packing, secondary interactions of the analyte with the stationary phase, the connection tubing from the injector to the detector inlet, the detector sampling rate, and the nature of the digital filter (mathematical elimination of noise) in the

How do you sharpen HPLC peaks?

In both cases the solution is quite simple: Dilute the sample or reduce the injection volume. The pH of the mobile phase can also have a strong influence on the peak width. Depending on the chemical property of a sample, it can be ionized in different ways, i.e., completely protonated, deprotonated or neutral.

Why is it important for gas chromatography peaks to appear symmetrically?

Ideally, the peaks in the chromatogram display a symmetric shape (Gaussian curve). If too much of the sample is injected, the peaks show a significant tailing, which causes a poorer separation. Most detectors are relatively sensitive and do not need a lot of material in order to produce a detectable signal.

What is peak broadening?

In order to separate two components during a chromatographic separation, there must be a difference in their retention (column selectivity). Peak broadening. The analyte peak has a certain width, which becomes wider traveling further distances along the column from the starting point (after injection).

Does peak shape affect retention time?

A sample-solvent-induced retention time change is often accompanied by a change in the peak shape. For samples containing a significant portion of the matrix, an interfering peak coeluting with an analyte peak may cause a small change in the apparent retention time.

How do you describe a chromatogram?

Chromatography is a process for separating components of a mixture. The different components of the mixture travel through the stationary phase at different speeds, causing them to separate from one another.

Which Colour is most soluble in water?

a. The purple and orange colors are more soluble in water, because of the rate in which they traveled as the filter soaked up the water.

How do you plot chromatogram?

Right click on the graph and select Create Label or select Chromatogram - Create Label on the main menu to add a line or text. An auxiliary graph where the chromatogram is always displayed in its original size. The graph is designated as an illustration of the cut-out performed in the main graph.

What are the RF values?

The Rf value is defined as the ratio of the distance moved by the solute (i.e. the dye or pigment under test) and the distance moved by the the solvent (known as the Solvent front) along the paper, where both distances are measured from the common Origin or Application Baseline, that is the point where the sample is

What is a DNA chromatogram?

A chromatogram (sometimes also called electropherogram) is the visual representation of a DNA sample produced by a sequencing machine (such as Applied Biosystems ABI PRISM 7700 Sequence Detection System). The green bars above chromatogram peaks high confidence scores.

What does retention factor tell you?

The retention factor of a particular material is the ratio of the distance the spot moved above the origin to the distance the solvent front moved above the origin. Retention factors are useful in comparing the results of one chromatogram to the results of another.

What produces a smaller Rf value?

The more polar the compound, the more it will adhere to the adsorbent and the smaller the distance it will travel from the baseline, and the lower its Rf value. Eluent: the solvent or mixture of solvents (mobile phase) used to develop a TLC chromatogram (plate).

What should we do first before using the HPLC instrument?

Before the freshly prepare mobile phase is pumped around the HPLC system, it should be thoroughly degassed to remove all dissolved gasses. If the mobile phase is not degassed, air bubbles can form in the high-pressure system resulting in problems with system instability, spurious baseline peaks, etc.

What is the difference between chromatography and chromatogram?

is that chromatography is (chemistry) any of various techniques for the qualitative or quantitative separation of the components of mixtures of compounds; all characterised by the use of a mobile phase (gas or liquid) moving relative to a stationary phase (liquid or solid) - the differences between the rates of

What is RRT in HPLC?

Relative retention time (RRT) is the ratio of the retention time of analyte peak relative to that of another used as a reference obtained under identical conditions. RRT = (T_analyte / T _reference) Where T = Retention time.

How do you identify compounds in HPLC?

The retention time and the retention volume are characteristic of the compound, column and other conditions. Therefore, retention times or retention volumes may be used to identify the compound by comparison with knowns. With modern instruments, the retention time, or retention volume is highly reproducible.

Which of the following is not true about high pressure liquid chromatography?

Which of the following is not true about High pressure liquid chromatography (HPLC)? Explanation: In High pressure liquid chromatography (HPLC), samples need to be vaporised. It has high sensitivity.

Which force is involved in the chromatography?

There are also the intermolecular forces, such as hydrogen-bonding and dipole-dipole interactions in chromatography, which help retain the analyte to the stationary phase of your column. The stronger the intermolecular forces, the stronger and longer the compound is retained in the column.

How do you separate co eluting peaks in HPLC?

Some compounds of high molecular weight may not be separable on small pore size packings, but will be easily resolved on a column packed with larger-pore packing. Generally, the easiest way to resolve closely or co-eluting peaks is to change the bonded phase on the column packing.

What is peak resolution in chromatography?

Resolution. The resolution of a elution is a quantitative measure of how well two elution peaks can be differentiated in a chromatographic separation. It is defined as the difference in retention times between the two peaks, divided by the combined widths of the elution peaks.

What is mAU in HPLC chromatogram?

The y-axis of the chromatogram is a measure of the intensity of absorbance (in units of mAU, or milli-Absorbance Units). The x-axis is in units of time (typically minutes), and is used to determine the retention time (tR) for each peak.

What is the acceptance criteria for retention time in HPLC?

The guidance states that: The ratio of the chromatographic retention time of the analyte to that of the internal standard, i.e. the relative retention time of the analyte, shall correspond to that of the calibration solution at a tolerance of ± 0,5 % for GC and ± 2,5 % for LC.

How do I reduce retention time in HPLC?

As temperature is increased, retention will decrease. If the room experiences wide temperature fluctuations, the HPLC retention times will probably be affected. The best solution is to run analyses at a temperature that can be controlled by using an oven.
