Is 240v RMS?

With a pure sinusoidal waveform the voltage that is generally discussed is the RMS voltage because this is equivalent to the DC voltage that produces the same heating effect for a given current. So 240V RMS is equivalent to 339 V peak, or 679 V peak to peak and can be written as 240 Vrms.

Similarly one may ask, is 220v RMS or peak?

Practically , the expression “220-volt AC supply” is used in commercial purposes. Normally it denotes the RMS value of the ac voltage which has a range of 0 volt to 220√2 volt. In academic fields, we also use the RMS value normally. If it refers to the peak value then it should be mentioned there.

Likewise, is 230v RMS? For example, a 6V AC supply means 6V RMS with the peak voltage about 8.6V. The UK mains supply is 230V AC; this means 230V RMS so the peak voltage of the mains is about 320V! That is the RMS value.

Correspondingly, is the UK 230v or 240v?

The voltage used throughout Europe (including the UK) has been harmonised since January 2003 at a nominal 230v 50 Hz (formerly 240V in UK, 220V in the rest of Europe) but this does not mean there has been a real change in the supply.

What is meant by RMS voltage?

The root-mean-square (rms) voltage of a sinusoidal source of electromotive force (V_rms) is used to characterize the source. It is the square root of the time average of the voltage squared. The value of V_rms is V₀/ √2, or, equivalently, 0.707V₀. Thus, the 60-hertz, 120-volt alternating current,…

Related Question Answers

What is the maximum value of voltage for 240 volt RMS?

The RMS voltage is 240 volts, so the peak value V_m= V. √2 = 340 volts.

What is the peak voltage of 240v RMS?

So 240V RMS is equivalent to 339 V peak, or 679 V peak to peak and can be written as 240 Vrms. (the formula is Vrms = Vmax / √2). The waveform is a sinusoid varying about a neutral, which can also be drawn as a vector with a single arrow pointing away from neutral.

Why do ammeters always measure RMS value?

An AC meter is calibrated to read RMS voltage with a sinusoidal waveform. These meters can indicate the exact voltage at some particular point in time IF the waveform is changing so slowly that the meter needle can follow the waveform.

What is the peak voltage of 220v rms ac voltage?

Peak value of 220V a.c. is root(2)*220 = 1.414*220V. This is because 220V is the r.m.s.

Why do we use RMS voltage?

Attempts to find an average value of AC would directly provide you the answer zero Hence, RMS values are used. They help to find the effective value of AC (voltage or current). This RMS is a mathematical quantity (used in many math fields) used to compare both alternating and direct currents (or voltage).

Is RMS voltage AC or DC?

“RMS” stands for Root Mean Square, and is a way of expressing an AC quantity of voltage or current in terms functionally equivalent to DC. For example, 10 volts AC RMS is the amount of voltage that would produce the same amount of heat dissipation across a resistor of given value as a 10 volt DC power supply.

Why is 440v 3 phase?

The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts. 440V in 3 phase system is line to line voltage if you calculate per phase voltage then you will get approximate same value as for 1 phase system.

How do you calculate RMS?

RMS Voltage Equation Then the RMS voltage (V_RMS) of a sinusoidal waveform is determined by multiplying the peak voltage value by 0.7071, which is the same as one divided by the square root of two ( 1/√2 ).

Can I plug 240v into 230v?

In answer to the original post: yes, you can use the drill. Everything labeled as 230v is designed to run from the mains anywhere in europe - be it from our 240v or mainland europe's 220v.

Can a 230v appliance run on 240v?

Yes - you can. Most appliances available in the market, the world over, has a voltage range, instead of one fixed voltage. Most of the better quality manufacturers , in India, specify that the equipment will work at 190 V to 240 V, against a base working voltage of 220 V.

Why did UK change from 240v to 230v?

That because the directive specified 230v -6% to +10%. That is between 216.2v and 253v. The UK domestic mains voltage is effectively what it always was. The EU had an ambition to use the same voltage across the continent, but with some places being on 240V and some on 220V that was going to be difficult.

Are 220v and 230v the same?

220/230/240 are the same thing, really US single phase line-to-line mains voltage is interchangeably referred to as 220V, 230V, and 240V. (There are several three-phase systems in the US, with various voltages involved, but they are beyond the scope of this answer.)

Why is UK voltage 240v?

50Hz means that the voltage cycles 50 times per second. For UK mains, the peak voltage is around 330v, and the overall ac waveform gives the same heating effect as 240v dc would. It is called 240v because it is equivalent to 240v dc for heating and lighting.

Can 230v kill you?

50mA thru your heart will kill you. Electricity through the brain can cause damage and death, too, but it usually doesn't take that path. Electrical shock at 230 VAC can cause death in any of these ways, but if it doesn't follow any of these paths, it may only produce pain and temporary injuries, such as burns.

What's the difference between 230 volt and 240 volt?

Wiring an outlet for 230 volts is identical to wiring an outlet for 220 or 240 volts. When electricity is wired into a home, the power company delivers electricity at 120 and 240 volts with a plus or minus of 5 percent. Therefore 220, 230 and 240 volts are all interchangeable and wired the same.

Will 240v appliances work on 220v?

Most cooking appliances are rated at 240 volt. The nominal voltage is 240 volt, but homes may have 208V, 220V, or 240V power supply. Any appliance that is rated for 240 volts and can also be used on a 220V or 208V outlet.

Can I use 240v in UK?

The voltage used throughout Europe (including the UK) has been harmonised since January 2003 at a nominal 230v 50 Hz (formerly 240V in UK, 220V in the rest of Europe) but this does not mean there has been a real change in the supply.

What does RMS stand for?

Root Mean Square

What is RMS and average value?

If a wave is represented by a RMS value then it is the closest possible DC value of that wave. So RMS value is defined as the square root of means of squares of instantaneous values. Whereas an average value just considers the sum of all instantaneous values ( positive and negative).

How do you find RMS peak value?

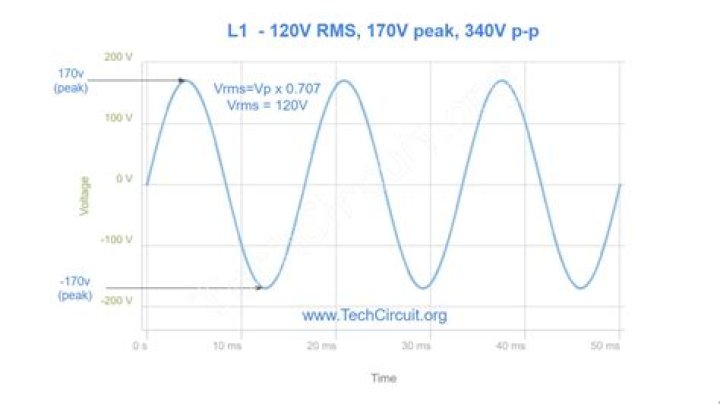

Peak values can be calculated from RMS values from the above formula, which implies V_P = V_RMS × √2, assuming the source is a pure sine wave. Thus the peak value of the mains voltage in the USA is about 120 × √2, or about 170 volts. The peak-to-peak voltage, being double this, is about 340 volts.

Is 480v RMS or peak?

It would take a book to analyze things further, but here are a few interesting results: (1) 480 volts is not the peak of the sine wave. It is called the RMS (root mean square) voltage and is related to the peak by a factor of the square root of 2.

What is true RMS multimeter?

07-17-2019 | Electrical. A true-RMS device (RMS = root mean square) is one of three tools that can measure alternating current (ac) or ac voltage: True-RMS digital multimeters (or clamp meter) Average-responding digital multimeter (or clamp meter) Oscilloscope.

Does a multimeter measure RMS or peak?

When you use a multimeter to measure an AC voltage or current, the reading on the meter is an "RMS" or "root mean square" reading. We sometimes call the RMS value the "effective value" of an AC voltage or current.

How do you convert rms to peak?

Peak values can be calculated from RMS values from the above formula, which implies V_P = V_RMS × √2, assuming the source is a pure sine wave. Thus the peak value of the mains voltage in the USA is about 120 × √2, or about 170 volts.

How do you convert RMS to Watts?

It's very simple to work out (for sine waves), first convert the peak voltage to RMS by dividing it by 1.414 - 1/1.414=0.707. Then square it and divide by the load (0.707*0.707)/1 = 0.5W.

Can RMS be negative?

The square root of a negative number is, well, difficult. As we all know, if you multiply a negative number by a negative number, the result is always positive – – almost always. As a result, the RMS value remains positive despite the fact that the voltage is negative for 1/2 of each cycle.

What is average voltage and RMS voltage?

The main differences between an RMS Voltage and an Average Voltage, is that the mean value of a periodic wave is the average of all the instantaneous areas taken under the curve over a given period of the waveform, and in the case of a sinusoidal quantity, this period is taken as one-half of the cycle of the wave.
