Is a normal vector perpendicular to the plane?

In three dimensions, a surface normal, or simply normal, to a surface at point P is a vector perpendicular to the tangent plane of the surface at P. The word "normal" is also used as an adjective: a line normal to a plane, the normal component of a force, the normal vector, etc.

Moreover, how do you tell if a vector is perpendicular to a plane?

To find if two vectors are perpendicular, just take their dot product. If it equals 0, then they are perpendicular. If a line is parallel to a plane, it will be perpendicular to the plane's normal vector (just like any other line contained within the plane, or parallel to the plane).

Secondly, can a line be perpendicular to a plane? When a line is perpendicular to two lines on the plane (where they intersect), it is perpendicular to the plane. It will also be perpendicular to all lines on the plane that intersect there. one and only one line perpendicular to a plane.

Similarly, is a normal vector perpendicular?

The normal vector, often simply called the "normal," to a surface is a vector which is perpendicular to the surface at a given point. When normals are considered on closed surfaces, the inward-pointing normal (pointing towards the interior of the surface) and outward-pointing normal are usually distinguished.

How do you find the direction of a perpendicular vector?

If two vectors are perpendicular, then their dot-product is equal to zero. The cross-product of two vectors is defined to be A×B = (a2_b3 - a3_b2, a3_b1 - a1_b3, a1_b2 - a2*b1). The cross product of two non-parallel vectors is a vector that is perpendicular to both of them.

Related Question Answers

How do you know if two planes are perpendicular?

Planes are either parallel, or they're perpendicular, otherwise they intersect each other at some other angle. parallel if the ratio equality is true. perpendicular if the dot product of their normal vectors is 0.

What is a vector equation of a plane?

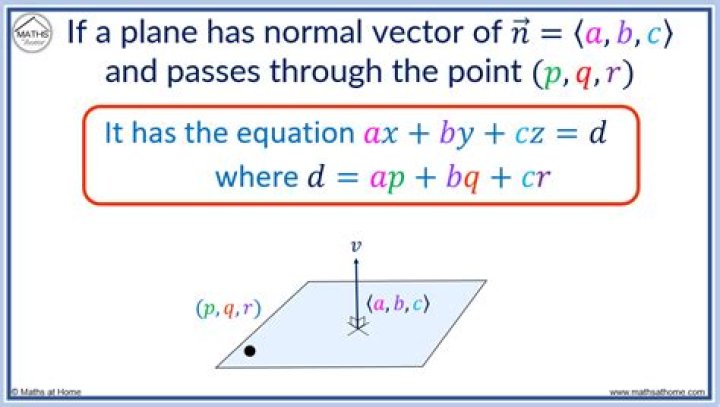

From the video, the equation of a plane given the normal vector n = [A,B,C] and a point p1 is n . p = n . p1, where p is the position vector [x,y,z].

What is the normal vector of a plane?

Unit Normal Vector

Any nonzero vector can be divided by its length to form a unit vector. Thus for a plane (or a line), a normal vector can be divided by its length to get a unit normal vector. Example: For the equation, x + 2y + 2z = 9, the vector A = (1, 2, 2) is a normal vector. |A| = square root of (1+4+4) = 3.

Do skew lines lie in parallel planes?

In three-dimensional geometry, skew lines are two lines that do not intersect and are not parallel. Two lines that both lie in the same plane must either cross each other or be parallel, so skew lines can exist only in three or more dimensions. Two lines are skew if and only if they are not coplanar.

How do you find the vector of a line that is perpendicular to a plane?

the equation of the line perpendicular to the given plane that passes through the given point. N = s = ai + bj + ck.

Is Normal same as perpendicular?

When used as nouns, normal means a line or vector that is perpendicular to another line, surface, or plane, whereas perpendicular means a line or plane that is perpendicular to another.

What is the cross product of two vectors?

The cross product a × b is defined as a vector c that is perpendicular (orthogonal) to both a and b, with a direction given by the right-hand rule and a magnitude equal to the area of the parallelogram that the vectors span.

What does a unit vector mean?

Unit vectors are vectors whose magnitude is exactly 1 unit. They are very useful for different reasons. Specifically, the unit vectors [0,1] and [1,0] can form together any other vector.

How do you find a vector parallel to a plane?

To find a vector parallel to the plane we need only find two points which lie on the plane. As these two points lie on the plane, →v lies on the plane, and is therefore parallel to it.

What is unit normal vector?

Let's say you have some surface, S. If a vector at some point on S is perpendicular to S at that point, it is called a normal vector (of S at that point). When a normal vector has magnitude 1, it is called a unit normal vector.

What is a direction vector?

The direction of a vector is the direction along which it acts. It has a certain magnitude. For example, we say 10 N force in the east. Here, 10 N is the magnitude and towards the east is the direction. The direction is specified using a unit vector.

Is a line perpendicular to itself?

(i) No line is perpendicular to itself.

Do perpendicular lines have to meet?

When two lines are perpendicular, the slope of one is the negative reciprocal of the other. Note too that the lines to do not have to intersect to be perpendicular. In Fig 1, the two lines are perpendicular to each other even though they do not touch.

How do you know if a line intersects a plane?

If the line does not intersect the plane or if the line is in the plane, then plugging the equations for the line into the equation of the plane will result in an expression where t is canceled out of it completely. If the resulting expression is correct (like 0 = 0) then the line is part of the plane.

How do you find perpendicular lines?

First, put the equation of the line given into slope-intercept form by solving for y. You get y = -2x +5, so the slope is –2. Perpendicular lines have opposite-reciprocal slopes, so the slope of the line we want to find is 1/2. Plugging in the point given into the equation y = 1/2x + b and solving for b, we get b = 6.

How do you know if two lines are perpendicular in 3d?

Now the test for perpendicularity is that the dot product of the direction vectors of the 2 lines has to be 0. Remember if the dot product of 2 vectors is 0 they're perpendicular. So if the direction vector is, of 2 lines are perpendicular then the lines are perpendicular.

Where does a line intersect a plane?

In analytic geometry, the intersection of a line and a plane in three-dimensional space can be the empty set, a point, or a line. It is the entire line if that line is embedded in the plane, and is the empty set if the line is parallel to the plane but outside it.

Is a plane two dimensional?

In mathematics, a plane is a flat, two-dimensional surface that extends infinitely far. A plane is the two-dimensional analogue of a point (zero dimensions), a line (one dimension) and three-dimensional space.

How do you find a vector perpendicular to another vector in 2d?

To get the 2D vector perpendicular to another 2D vector simply swap the X and Y components, negating the new Y component. So { x, y } becomes { y, -x } .

What is the dot product of two perpendicular vectors?

Generally, whenever any two vectors are perpendicular to each other their scalar product is zero because the angle between the vectors is 90? and cos 90? = 0. The scalar product of perpendicular vectors is zero.
