Is Internet a Layer 3?

Generally speaking, Layer 2 is a broadcast Media Access Control (MAC) MAC level network, while Layer 3 is a segmented routing over internet protocol (IP) network. To better understand both layers, let's dig a little deeper into the OSI model.

In this regard, is a router layer 2 or 3?

The most common Layer 3 device used in a network is the router. A router is able to look into the Layer 3 portion of traffic passing through it (the source and destination IP addresses) to decide how it should pass that traffic along.

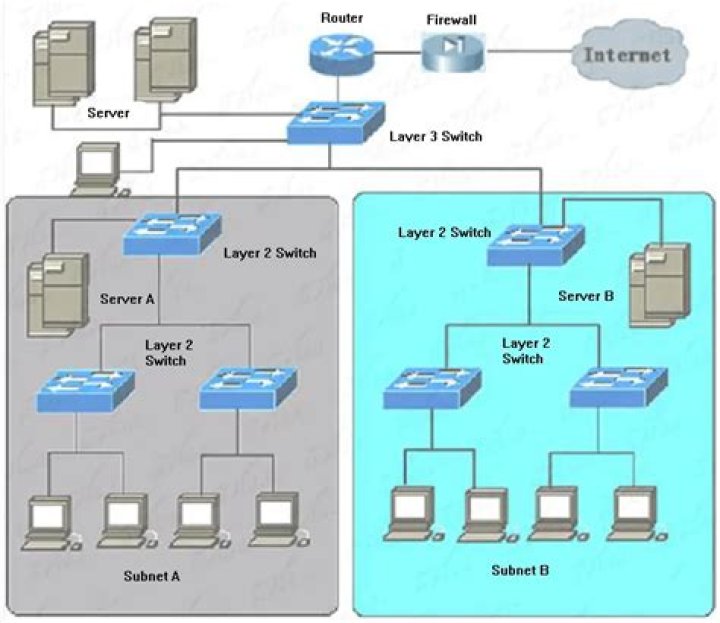

Beside above, what is a layer 3 router? Simply put, a layer 3 switch combines the functionality of a switch and a router. It acts as a switch to connect devices that are on the same subnet or virtual LAN at lightning speeds and has IP routing intelligence built into it to double up as a router. This is how a layer 3 switch acts as both a switch and a router.

Also to know is, is IP a Layer 3?

A Layer 3 switch is a high-performance device for network routing. A router works with IP addresses at layer 3 of the model. Layer 3 networks are built to run on on layer 2 networks. In an IP layer 3 network, the IP portion of the datagram has to be read.

What OSI model layer is 3?

Layer 3, the network layer, is most commonly known as the layer where routing takes place. A router's main job is to get packets from one network to another. Layer 3 protocols and technologies allow for network-to-network communications.

Related Question Answers

Is a hub Layer 1 or 2?

Hubs are basically layer 1 devices without any intelligence and do not separate collision or broadcast domains. Switches are basically layer 2 (MAC addresses) with some intelligence and separate collision domains.

Are VLAN Layer 2 or 3?

VLANs are data link layer (OSI layer 2) constructs, analogous to Internet Protocol (IP) subnets, which are network layer (OSI layer 3) constructs. In an environment employing VLANs, a one-to-one relationship often exists between VLANs and IP subnets, although it is possible to have multiple subnets on one VLAN.

What layer is a router?

Routers operate on the third layer of the OSI Model, the Network-Control Layer. Rather than passing packets based on the Media Access Control (MAC) Layer addresses (as bridges do), a router examines the packet's data structure and determines whether or not to forward it.

Is Layer 3 switch a router?

A Layer 3 switch is both a Switch and a Router. We can call it a router with multiple Ethernet ports and has a switching functionality. Layer 3 switches thus separates ports into virtual LANs (VLANs) and perform the routing between them in addition to supporting routing protocols such as RIP, OSPF and EIGRP.

What is a Layer 3 address?

The layer 3 address is a logical address. It will pertain to a single protocol (such as IP, IPX, or Appletalk). The layer 2 address is a physical address. It pertains to the actual hardware interface (NIC) in the computer.

Is a router a Layer 2 device?

Packet switching is a layer 2 function. If a router can packet switch as well as route, it is a layer 2 and layer 3 device. Same thing as a switch that can do routing. Anything upper layer protocol is going to sit on software and hardware that also function at the lower levels, but routing is done at 3.

Do I need a layer 3 switch?

Benefits of a layer 3 switch Support routing between virtual LANs. Ease the configuration process for VLANs, as a separate router isn't required between each VLAN. Separate routing tables, and as a result, segregate traffic better. Simplify troubleshooting as, fixing problems in L2 layer is tedious and time-consuming.

What is a Layer 2 router?

Overview. Traditional switching operates at layer 2 of the OSI model, where packets are sent to a specific switch port based on destination MAC addresses. Routing operates at layer 3, where packets are sent to a specific next-hop IP address, based on destination IP address.

What is a Level 3 network?

A Layer 3 switch is a high-performance device for network routing. A router works with IP addresses at layer 3 of the model. Layer 3 networks are built to run on on layer 2 networks. In an IP layer 3 network, the IP portion of the datagram has to be read.

What are the 7 layers of networking?

The 7 Layers of the OSI

• Layer 7 - Application.
• Layer 6 - Presentation.
• Layer 5 - Session.
• Layer 4 - Transport.
• Layer 3 - Network.
• Layer 2 - Data Link.
• Layer 1 - Physical.

What is difference between layer 2 and layer 3?

A Layer 2 switch only works with MAC addresses and doesn't interact with any higher layer addresses, such as an IP. A Layer 3 switch, on the other hand, can also do static routing and dynamic routing, which includes IP and virtual local area network (VLAN) communications.

What is Layer 2 address?

The MAC address is a layer 2 (data link) address. The layer 3 address is a logical address. It will pertain to a single protocol (such as IP, IPX, or Appletalk). The layer 2 address is a physical address. It pertains to the actual hardware interface (NIC) in the computer.

What is TCP IP layers?

The TCP/IP model was developed prior to the OSI model. The TCP/IP model consists of five layers: the application layer, transport layer, network layer, data link layer and physical layer.

What are the 5 layers of TCP IP?

THE FUNCTIONS AND APPLICATIONS OF THE 5 LAYERS OF TCP/IP …

• APPLICATION LAYER. This is where the message is created.
• NETWORK LAYER (IP)
• TRANSPORT LAYER (TCP/UDP) Provides services that support reliable end-to-end communications.
• DATA LINK LAYER (MAC)
• PHYSICAL LAYER.
• APPLICATION LAYER.
• NETWORK LAYER (IP)
• TRANSPORT LAYER (TCP/UDP)

Is Ethernet a Layer 2?

The data link layer, or layer 2, is the second layer of the seven-layer OSI model of computer networking. Examples of data link protocols are Ethernet for local area networks (multi-node), the Point-to-Point Protocol (PPP), HDLC and ADCCP for point-to-point (dual-node) connections.

What OSI layer is TCP?

Layer 4 – Transport The best known example of the Transport Layer is the Transmission Control Protocol (TCP), which is built on top of the Internet Protocol (IP), commonly known as TCP/IP. TCP and UDP port numbers work at Layer 4, while IP addresses work at Layer 3, the Network Layer.

What is Layer 2 firewall?

In a Layer 2 deployment, the firewall provides switching between two or more networks. Devices are connected to a Layer 2 segment; the firewall forwards the frames to the proper port, which is associated with the MAC address identified in the frame.

What does layer 3 mean?

A Layer 3 switch is a specialized hardware device used in network routing. Both can support the same routing protocols, inspect incoming packets and make dynamic routing decisions based on the source and destination addresses inside.

What is a Layer 3 protocol?

The protocols used in Layer 3 include: Internet Protocols IPv4/v6. Internet Control Message Protocol (ICMP) Distance Vector Multicast Routing Protocol (DVMRP)

What is a Layer 3 switch used for?

Simply put, a layer 3 switch combines the functionality of a switch and a router. It acts as a switch to connect devices that are on the same subnet or virtual LAN at lightning speeds and has IP routing intelligence built into it to double up as a router.

Is switching faster than routing?

Within the LAN environment, a Layer 3 switch is usually faster than a router because it is built on switching hardware. In fact, many of Cisco's Layer 3 switches are actually routers that operate faster because they are built on "switching" hardware with customized chips inside the box.

Why is a router sometimes called a Layer 3 switch?

Why use a Layer 3 switch? Layer 3 switches make the use of virtual local area networks (VLANs) and interVLAN routing easier and faster. They make VLANs easier to configure, because a separate router isn't required between each VLAN; all the routing can be done right on the switch.

Why use a switch over a router?

Router. While a network switch can connect multiple devices and networks to expand the LAN, a router will allow you to share a single IP address among multiple network devices. In simpler terms, the Ethernet switch creates networks and the router allows for connections between networks.

Which is better switch or router?

High-end switches can have more than 50 ports and often are rack mounted. Switches are more advanced than hubs and less capable than routers. Unlike hubs, switches can limit the traffic to and from each port so that each device connected to the switch has a sufficient amount of bandwidth.

Can a Layer 2 switch route VLANs?

Layer 2 switches can only route packets between different subnets or VLANs if the two MAC addresses are both PHYSICALLY connected to the layer 2 switch and. A packet to a device with a MAC not PHYSICALLY connected with the layer 2 switch must run through the gateway.

Is OSI model used today?

Today, it is the main protocol used in all Internet operations. TCP/IP also is a layered protocol but does not use all of the OSI layers, though the layers are equivalent in operation and function (Fig. 2). The network access layer is equivalent to OSI layers 1 and 2.

Which OSI layer is most important?

Network Layer

What layer is QoS?

QoS is generally employed in IP layer of TCP/IP. It is in IP layer so as to check for error ,delay and bit rate.

What OSI layer is a firewall?

A firewall generally works at layer 3 and 4 of the OSI model. Layer 3 is the Network Layer where IP works and Layer 4 is the Transport Layer, where TCP and UDP function. Many firewalls today have advanced up the OSI layers and can even understand Layer 7 – the Application Layer.

What are the 7 layers of OSI?

The OSI Model Defined In the OSI reference model, the communications between a computing system are split into seven different abstraction layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

What is TCP and UDP?

They are TCP or Transmission Control Protocol and UDP or User Datagram Protocol. TCP is connection oriented – once a connection is established, data can be sent bidirectional. UDP is a simpler, connectionless Internet protocol. Multiple messages are sent as packets in chunks using UDP.

What is the OSI 7 Layer Model?

In the OSI reference model, the communications between a computing system are split into seven different abstraction layers: Physical, Data Link, Network, Transport, Session, Presentation, and Application.

What is OSI model explain?

The Open Systems Interconnection model (OSI model) is a conceptual model that characterises and standardises the communication functions of a telecommunication or computing system without regard to its underlying internal structure and technology. The model partitions a communication system into abstraction layers.
