What causes film fog on radiographs?

Fogging may be due to many factors including: * Using film kept past its expiration date. Unexposed film may become fogged by gradual chemical deterioration, which is temperature dependent and therefore may be slowed by storing film in a refrigerator. * Film exposed to stray radiation during storage.

Likewise, what is film fog in radiology?

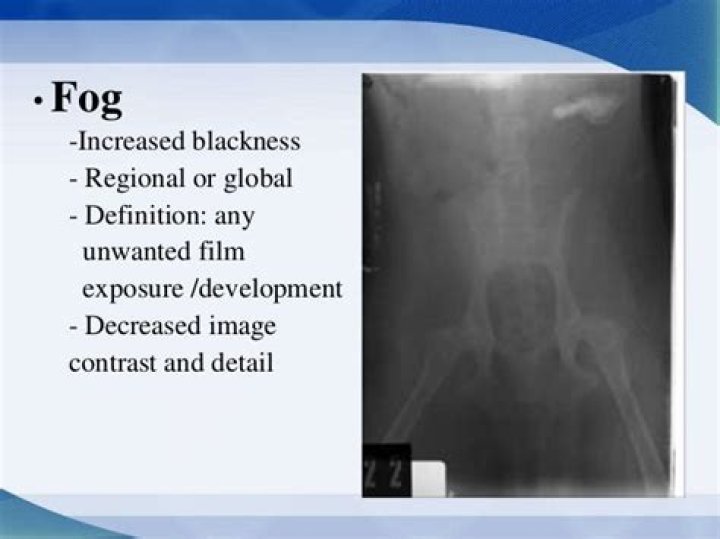

Fog in radiology refers to darkening of images by sources other than the radiation of the primary beam to which the film was exposed. This can be due to chemicals in the processing solutions, light, or non primary beam radiation.

Also Know, why would a radiograph appear black? Dense structures absorb (attenuate) more of the x-ray beam than less dense structures. Most of the beam passes through the air and strikes the detector. As a result, these structures appear black on x-rays, termed 'radiolucent'. Note that on the radiograph shown, air surrounding the scissors is black.

Subsequently, one may also ask, what does fogged film look like?

A film that is either fully black, or has partial black marks indicates that the film has been fogged. (Exposed to light). If films are left out in bright light prior and post exposure (i.e if roll films are not sealed tightly and left in bright light).

How are radiographs stored?

Storing Radiographs:

Processed radiographs should have the corners cut off and be placed in a properly labeled envelope. The envelope should be stored in an upright position in a storage bin. A numbering system should be used so that radiographs can be easily found.

Related Question Answers

What is dichroic fog?

Dichroic fog is a type of fogging produced during development, especially when using developers with chemical solvent components. It is evident as an often metallic layer which may appear red or green by reflected or transmitted light and consists of a very thin film of metallic silver redeposited onto the film.

What is the purpose of the Safelight filter?

Kodak Safelight Filters are made to precise light transmission and absorption standards that relate to the spectral sensitivities of photographic materials. Safelight filters gradually fade with use. This means that they transmit more and more light of the colors that they absorb when they are new.

What happens when film is exposed to light?

The emulsion will gradually darken if left exposed to light, but the process is too slow and incomplete to be of any practical use. Instead, a very short exposure to the image formed by a camera lens is used to produce only a very slight chemical change, proportional to the amount of light absorbed by each crystal.

Can you develop old film negatives?

Film & Photo Developing

In addition, you can have photos produced from old negatives that you've saved over the years. Disposable camera and 35mm film prints are available in as little as 7 to 10 days. All other types of film are usually ready in approximately three weeks.

How do you process black and white film?

The process takes a little getting used to, but after five or six developing sessions, you'll be able to do it in your sleep.

1. Step 1: Prepare for lights out.
2. Step 2: Load the film into the tank.
3. Step 3: Mix the chemicals.
4. Step 4: Develop the film.
5. Step 5: Dry the negatives.
6. Step 6: Scan the images.

What does an overexposed radiograph look like?

Overexposed images will have a distinct lack of quantum mottle while appearing 'saturated' or in extreme cases 'burnt out' whereby anatomy is completely obliterated from the radiograph.

How does kVp and mAs affect image quality?

The first experiment showed that, when the film density is kept constant, the higher the kVp, the lower the resolution and image contrast percentage; also, the higher the mAs, the higher the resolution and image contrast percentage.

What error can cause film fog?

Use film within the expiration date. Can cause film fog if the filter has a crack or is the wrong one, if the bulb wattage is too high, if there are too many, or if they are too close to the work area, < 5 ft.

What are the factors that affect image quality?

Image quality is not a single factor but is a composite of at least five factors: contrast, blur, noise, artifacts, and distortion, as shown above. The relationships between image quality factors and imaging system variables are discussed in detail in later chapters.

What causes foreshortening?

Foreshortening is the result of overangulation of the x-ray beam. When foreshortening occurs when using the paralleling technique, the angulation of the x-ray beam is greater than the long axis plane of the teeth. This error can also occur if the receptor is not placed parallel to the long axis of the teeth.

What happens when you increase mas?

An increase in current (mA) results in a higher production of electrons that are inside the x-ray tube which will, therefore, increase the quantity of radiation; more radiation will cause more photons reaching the detector and hence apparent structural density will decrease, yet the signal intensity will increase.

When should kVp be increased?

Image quality

Particularly in larger body parts, such as obese adult torsos, lower energy photons are absorbed completely without contributing to image formation. In such situations, higher kVp is employed to improve the x-ray intensity reaching the receptor, thus increasing the signal to noise ratio on the images.

How many minutes should you manually develop a radiograph and at what temperature?

The ideal time to process radiographs in the developer is 680 F for 5 minutes. However, films may be removed from the fixing solution after five minutes for viewing only in cases of emergency - this procedure is known as wet reading viewing. The film must then be placed back in the fixer.

How long do Xray films last?

X-ray films may be destroyed five years after the date of exposure or five years after the patient reaches the age of majority, whichever is later, if the hospital has written findings of a physician who has read such films. Skilled nursing and intermediate care facilities must keep records not less than seven years.

How long do you have to keep radiology images?

five years

What is dark room in radiography?

The latent image produced when a radiographic film is exposed to a beam of X-ray can be visualized and examined only after the film has been suitably processed in the dark room. Too large room is as undesirable as small room. Dark room should be near the x-ray examination area.

How long do you have to keep radiology films?

5 years

What is unprocessed film?

Unprocessed photographic films and papers are perishable products that can be damaged by high temperatures and high relative humidities. Kodak Alaris packages films and papers in plastic and metal cans, foil envelopes, or polyethylene bags to protect them from contaminants and from changes in relative humidity.

What is radiographic film processing?

The process or technique of producing images of an opaque object on photographic film or on a fluorescent screen by means of radiation. Film Processing. As mentioned previously, radiographic film consists of a transparent, blue-tinted base coated on both sides with an emulsion.

How often should the chemicals be changed in a manual developing system?

To keep automatic and manual processing solutions clean, change every three to four weeks under normal conditions. Normal use is defined as 30 intraoral films per day. Heavy workloads may require more frequent changes. Developer and fixer solutions should be replenished daily.

What is fixer in radiography?

Photographic fixer is a mix of chemicals used in the final step in the photographic processing of film or paper. The fixer stabilises the image, removing the unexposed silver halide remaining on the photographic film or photographic paper, leaving behind the reduced metallic silver that forms the image.

How do you make a powder solution with developer?

Introduce powder slowly as you stir to ensure it mixes well. When the Borax has been added and stirred add water to make the solution up to 1 litre. This is a stock solution that can then be diluted one part water to one part D-76 to give the working developer.
