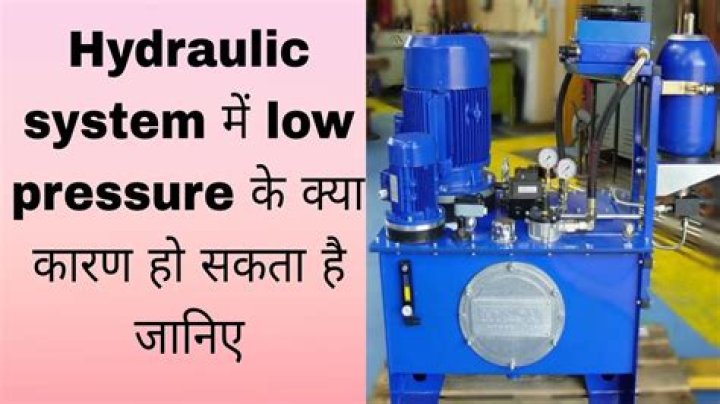

What causes low hydraulic pressure?

If the fluid level in the reservoir is low, a vortex can develop, allowing air to enter the pump intake. Check the fluid level in the reservoir, and if low, fill to the correct level. This causes the absolute pressure in that part of the circuit to fall below the vapor pressure of the hydraulic fluid.

Simply so, what causes low pressure in hydraulic system?

If the fluid level in the reservoir is low, a vortex can develop, allowing air to enter the pump intake. Check the fluid level in the reservoir, and if low, fill to the correct level. This causes the absolute pressure in that part of the circuit to fall below the vapor pressure of the hydraulic fluid.

Also, what are the most common causes of hydraulic system failure? Common Causes of Hydraulic Failure

1. Air and Water Contamination. Air and water contamination are the leading causes of hydraulic failure, accounting for 80 to 90% of hydraulic failures.
2. Temperature Problems.
3. Fluid Levels and Quality.
4. Human Error.

People also ask, how do you increase hydraulic pressure?

Why should you use an intensifier

1. Low operating pressure in the system.
2. Use existing installed power source.
3. Use standard tubing, hoses and valves.
4. Easy to accommodate where needed.
5. No need for extra tubing or special parts.
6. Full flow available at pump pressure.
7. Use existing equipment for the new task.

What determines the pressure in a hydraulic system?

Pressure in a hydraulic system is like the voltage in an electrical system and fluid flow rate is the equivalent of current. The size and speed of the pump determines the flow rate, the load at the motor determines the pressure.

Related Question Answers

What happens when hydraulic fluid is low?

Aeration occurs when air contaminates the hydraulic fluid. If the fluid level in the reservoir is low, a vortex can develop, allowing air to enter the pump intake. Check the fluid level in the reservoir, and if low, fill to the correct level. In some systems, air can enter the pump through its shaft seal.

How do you troubleshoot a hydraulic pump?

One of the following problems will most likely be the cause if any of the above symptoms appear, if they are indeed caused by the pump.

1. Pump Cavitation.
2. Air Leaking Into the System.
3. Water Leaking Into the System.
4. Oil Leakage Around the Pump.
5. Pump Delivering Too Little or No Flow.
6. Pump Noise Has Recently Increased.

Will low hydraulic fluid symptoms?

Other symptoms include foaming of the fluid and erratic actuator movement. Aeration accelerates degradation of the fluid and causes damage to system components through loss of lubrication, overheating and burning of seals. Air usually enters the hydraulic system through the pump's inlet.

What happens when air gets into a hydraulic system?

Certain conditions can cause this dissolved air to come out of solution, resulting in entrained air. When hydraulic oil temperature increases or static pressure decreases, air solubility is reduced and bubbles can form within the fluid. This release of dissolved air is known as gaseous cavitation.

How can you tell if a hydraulic pump is bad?

Common Symptoms Of Hydraulic Pump Problems Pump trouble is usually characterized by increased noise, increased heat, erratic operation of cylinders, difficulty or inability to develop full output, decreased speed of cylinders or hydraulic motors, or failure of the system to work at all.

How do you control the pressure in a hydraulic system?

Pressure control is achieved in hydraulic systems by metering the flow of a fluid into or out of a constrained volume. Pressure control is achieved in hydraulic systems by metering the flow of a fluid into or out of a constrained volume. Relief valves and pressure-reducing valves are not pressure controllers.

How can I improve my hydraulic system?

Improving The Reliability Of Your Hydraulic Systems

1. Reservoir. The best time to check a reservoir is when the plant or hydraulic equipment is down.
2. System cleaning and flushing.
3. Reservoir heater setting.
4. Oil-level switches.
5. Breather cap.
6. High-temperature switch.
7. Heat exchanger flushing and cleaning.
8. Pump testing.

How do you adjust a hydraulic valve?

To adjust the spool valve, loosen the valve-locking nut on the side. Removing the locking nut gives you access to the adjustment screw. Turn the screw clockwise to raise the pressure, and twist it counter-clockwise to lower the pressure.

What causes hydraulics to run slow?

The single, most common problem with a hydraulic system is that the actuator (cylinder or hydraulic motor) slows down progressively as the oil temperature increases. There seems to be some confusion as to whether the problem is related to pressure, or flow, so let's clear the matter up.

What is the first sign of oxidation in a hydraulic system?

If the hydraulic oil darkens, smells burnt and varnish and/or sludge forms, this indicates oxidative degradation of the oil. And there are two ways this can occur. The first involves intense local heating of the oil.

How do you know if a hydraulic pump is bad?

Common Symptoms Of Hydraulic Pump Problems Pump trouble is usually characterized by increased noise, increased heat, erratic operation of cylinders, difficulty or inability to develop full output, decreased speed of cylinders or hydraulic motors, or failure of the system to work at all.

How do I know if my hydraulic pump is bad?

Common Symptoms Of Hydraulic Pump Problems Pump trouble is usually characterized by increased noise, increased heat, erratic operation of cylinders, difficulty or inability to develop full output, decreased speed of cylinders or hydraulic motors, or failure of the system to work at all.

What are 3 types of hydraulic pumps?

Three different types of hydraulic pumps exist: gear pumps, piston pumps and vane pumps.

How do you adjust the pressure on a hydraulic pump?

Observe the pressure gauge and use a 1/8 inch Allen wrench and slowly turn the adjustment screw to obtain the desired pressure setting. Clockwise rotation of the adjustment screw will increase the pressure setting and counter- clockwise rotation will decrease the pressure setting.

How do you test a hydraulic system?

Operating the Hydraulic Tester With the tester load valve open, record maximum pump flow at zero pressure. Slowly close the load valve to increase pressure and record the flow at 250 psi increments from zero pressure to maximum system pressure. Write down your test results so you can refer to them later.

How do you create pressure?

To make this concept precise, we use the idea of pressure. Pressure is defined to be the amount of force exerted per area. So to create a large amount of pressure, you can either exert a large force or exert a force over a small area (or do both).

How does hydraulic pressure work?

Hydraulic systems work by using pressurized fluid to power an engine. These hydraulic presses put pressure on a small amount of fluid in order to generate a large amount of power. That pressure forces it against a piston on the other side of the container.

How does a pump create pressure?

The first resistance is created by the pump volute (casing), which catches the liquid and slows it down. When the liquid slows down in the pump casing, some of the kinetic energy is converted to pressure energy. A pump does not create pressure, it only creates flow. Pressure is a measurement of the resistance to flow.

How do hydraulic systems work?

Hydraulic systems use the pump to push hydraulic fluid through the system to create fluid power. The fluid passes through the valves and flows to the cylinder where the hydraulic energy converts back into mechanical energy. The valves help to direct the flow of the liquid and relieve pressure when needed.

Why hydraulic systems are used?

Hydraulic systems are mainly used where a high power density is needed or load requirements chance rapidly. This is especially the case in all kinds of mobile equipment such as excavators and in industrial systems such as presses. In wind turbines, hydraulics is used for pitch and brake control.
