What information is available from a radiation pattern?

The radiation pattern of an antenna gives us information about its receiving and transmitting properties in different directions.

Hereof, how can we check radiation pattern?

The far-field pattern of an antenna may be determined experimentally at an antenna range, or alternatively, the near-field pattern may be found using a near-field scanner, and the radiation pattern deduced from it by computation.

Subsequently, question is, how is antenna radiation pattern measured? Radiation Pattern: Practical antennas do not radiate uniformly in all directions. The radiation pattern is a graphical representation of the distribution of radiation energy as a function of angle about the antenna in the three-dimensional space and is generally measured in the far field region.

One may also ask, how do you read an elevation and azimuth plane pattern?

The azimuth plane pattern is measured when the measurement is made traversing the entire x-y plane around the antenna under test. The elevation plane is then a plane orthogonal to the x-y plane, say the y-z plane (φ = 90 deg).

What are the 2 types of radiation pattern?

Two types of radiation patterns should be distinguished: 1) the free space radiation pattern that is the complete lobe pattern of the antenna and is a function of the wavelength, feed system, and reflector characteristics; and 2) the field radiation pattern that differs primarily from the free space pattern by the Apr 25, 2012

Related Question Answers

Which type radiation pattern is used for an antenna?

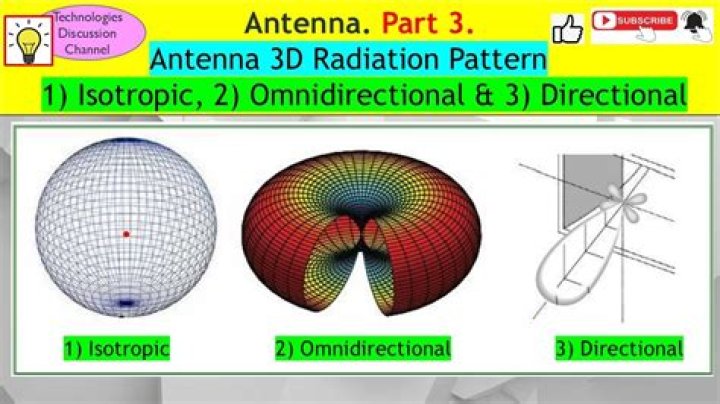

Types of Radiation patterns

Omni-directional pattern (also called non-directional pattern): The pattern usually has a doughnut shape in three-dimensional view. However, in two-dimensional view, it forms a figure-of-eight pattern. Pencil-beam pattern − The beam has a sharp directional pencil shaped pattern.

What is directional radiation pattern?

Directional antennas send and receive signals in one direction only, usually in a tightly focused, very narrow beam. The signal pattern from a directional antenna has a cigar shape, and looks the same from the top as from the sides. This shape is referred to as a lobe.

What do you mean by radiation pattern?

noun. the graphic representation of the strength and direction of electromagnetic radiation in the vicinity of a transmitting aerialAlso called: antenna pattern.

What is a normalized radiation pattern?

Normalized field pattern: It is obtained by dividing a field component by its maximum. value. The normalized field pattern is a dimensionless number with maximum value of unity. Half power level occurs at those angles (θ,Φ)for which Eθ(θ,Φ)n =0.707.

How do you calculate gain from radiation pattern?

The gain of an antenna is just the amount of power in the direction of maximum radiation divided by the average power (so it is unitless). If the radiation pattern has cylindrical symmetry about the axis of maximum radiation, you can integrate it to get the total power (in picture Decibels).Aug 16, 2013

At which lobe maximum radiation is done?

The lobe surrounding the maximum radiation is called the main lobe or the main beam.

Why do we measure radiation pattern of antenna?

Visualize, Evaluate, Adjust, Validate Antenna Radiation Patterns. Initial steps in antenna characterization begin with measuring the antenna radiation patterns to determine in which directions and how well energy radiates from the antenna. The results present the relative magnitude and phase of the antenna under test.

Which has a uniform radiation pattern?

Isotropic Pattern - an antenna pattern defined by uniform radiation in all directions, produced by an isotropic radiator (point source, a non-physical antenna which is the only nondirectional antenna). Main Lobe (major lobe, main beam) - radiation lobe in the direction of maximum radiation.

What is the difference between E plane and H plane?

The E-plane is the plane which contains the electric field vector which is also known as the E aperture, and the direction of maximum radiation. The E-plane and H-plane have to be 90 degrees apart. H-plane. This plane contains the magnetic field vector or the H aperture and the direction of maximum radiation.Oct 20, 2017

What is antenna used for?

An antenna is a metallic structure that captures and/or transmits radio electromagnetic waves. Antennas come in all shapes and sizes from little ones that can be found on your roof to watch TV to really big ones that capture signals from satellites millions of miles away.Oct 27, 2012

What is Theta and Phi in radiation pattern?

Phi and Theta Angles

The phi angle (φ) is the angle from the positive y-axis to the vector's orthogonal projection onto the yz plane. The angle is positive toward the positive z-axis. The phi angle is between 0 and 360 degrees. The theta angle (θ) is the angle from the x-axis to the vector itself.

How do antennas work fundamentally?

The fundamentals of antenna theory requires that the antenna be "impedance matched" to the transmission line or the antenna will not radiate. This is a fundamental antenna concept. Effective Aperture. Effective aperture is a basic antenna concept that is a measure of the power captured by an antenna from a plane wave.

What is E plane and H radiation pattern?

For a linearly-polarized antenna, this is the plane containing the electric field vector (sometimes called the E aperture) and the direction of maximum radiation. The electric field or "E" plane determines the polarization or orientation of the radio wave. E- plane and H-plane should be 90 degrees apart.

What is elevation and azimuth angle?

Azimuth and Elevation are measures used to identify the position of a satellite flying overhead. Azimuth tells you what direction to face and Elevation tells you how high up in the sky to look. Both are measured in degrees. Azimuth varies from 0° to 360°. Elevation is also measured in degrees.

What does the azimuth angle measure?

The azimuth angle is the compass direction from which the sunlight is coming. At solar noon, the sun is always directly south in the northern hemisphere and directly north in the southern hemisphere. The azimuth angle varies throughout the day as shown in the animation below.

How do you find the radiation pattern in HFSS?

In HFSS go to HFSS tab> Results> Create Far Filed report> Radiation pattern> select trace tab> select directivity > select DirPhi and DirTheta > select dB> go to familes tab and select phi=0 (for E- Plane) or phi=90 (for H-Plane) > then click New Report.

What does front to back ratio mean?

In telecommunication, the term front-to-back ratio (also known as front-to-rear ratio) can mean: The ratio of power gain between the front and rear of a directional antenna. Ratio of signal strength transmitted in a forward direction to that transmitted in a backward direction.

What is the radiation pattern of loop antenna?

The radiation pattern of a small loop antenna is same as that of a short electric dipole. The pattern for diameter equal to 1 wavelength shows maximum at some angle to the plane of the loop, and not along the plane.

What is a good antenna gain?

If you mount a TV antenna on your roof, and know the tv broadcast antennas are to the south (for example, on some hill south of the city), then it is preferred to have a high gain antenna. Antennas with gain of at least 12-15 dB are preferred.

What is the main lobe Back lobe & side lobe of an antenna?

In a directional antenna in which the objective is to emit the radio waves in one direction, the lobe in that direction is designed to have a larger field strength than the others; this is the "main lobe". The other lobes are called "side lobes", and usually represent unwanted radiation in undesired directions.

How do the radiation patterns of antennas vary with the length of the antenna?

The radiation pattern changes with the length of the antenna. As the length increases in proportion to a wavelength, the number of major lobes or points of maximum radiation increases, and they move outwards aligning further with the axis of the antenna..
