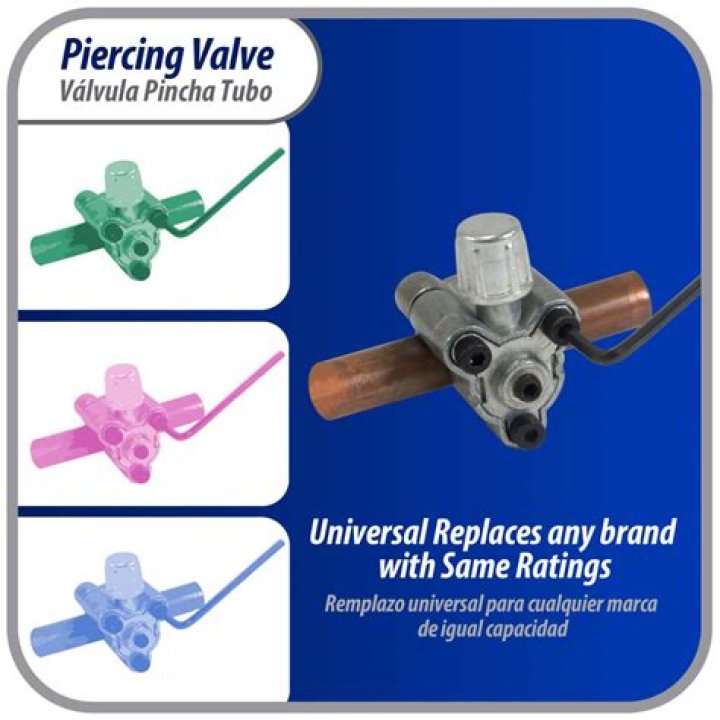

What is a bullet piercing valve used for?

The Supco® bullet piercing valve is a line piercing valve with a permanent type, patented gasket that provides up to 50 times more sealing area than competitive O-ring types. Piercing needle is designed for concentricity and hardness to insure perfect seating every time.

In respect to this, how do you pierce r134a can?

Thread the R134a can tap onto the R134a can. Attach a R134a changing hose. Always add refrigerant to low side of A/C system. Turn the handle on the R134a can tap clockwise until the piercing stem pierces the R134a can.

One may also ask, how does a piercing valve work? Saddle valves are self-tapping devices. Once mounted on a line, with the included rubber seal in place, all that is required is to turn the valve clockwise until it pierces the water line. When the valve handle can no longer be turned, it is done tapping the pipe. Turning the handle counter-clockwise opens the valve.

Similarly, it is asked, where is the low side on a refrigerator compressor?

How to Find the Suction Side of Refrigerator Compressor

1. Find the condenser on the refrigerator. The condenser is a coil or zig-zag-shaped piece of copper tubing that runs along the back of the refrigerator.
2. Trace the condenser coil back to the compressor unit.
3. Find the remaining valve on the compressor unit; this valve is normally right next to the output valve.

What should the low side pressure be in a r134a refrigerator?

For the normal running pressure in an R134A system, the coil should run at 22 pounds per square inch at the lowest temperature, 45−20 = 25 degrees Fahrenheit. Similarly, at the highest temperature, 60−20 = 40 degrees Fahrenheit, the coil should run at 57 psi.

Related Question Answers

What is a saddle valve on a water line?

A saddle valve is a valve used to supply liquid where a low volume, low pressure stream is required. The name is derived from the fact that it is mounted in such a way that it "saddles" the line, mounting it from both sides. They are typically used for supplying cold water, via a 3/8 inch tube, to: humidifiers and.

How do you charge a PTAC unit?

Connect the other hose to the smaller valve on the compressor. Turn on the AC unit and allow the unit to charge. The unit will automatically fill with the amount of refrigerant needed. When you feel cold air coming out of the unit, it is done charging.

Does Home Depot sell freon?

12 fl. oz. Canister Refrigerant-R134A - The Home Depot.

How do I recharge my home window air conditioner?

Backyard Method To Recharge a Window Air Conditioner (Not Recommended)

1. Attach a Bullet Valve Schrader Valve to the low-pressure line.
2. Attach the refrigerant can to the hose.
3. Attach the recharge hose to the Schrader Valve.
4. Open the valve on the recharge hose which will add refrigerant to the system.

How much should I add to 134a?

Most newer passenger car A/C systems do not hold much refrigerant (only 14 to 28 oz.), so you don't want to add too much if the system is low. One can of R-134a typically holds 12 oz.

How do I charge the Freon in my car?

Recharge your AC in 7 easy steps:

1. Materials Needed:
2. Step 1: Turn on your AC.
3. Step 2: Determine if AC compressor is engaging.
4. Step 3: Test the pressure.
5. Step 4: Attach the recharge hose from the kit.
6. Step 5: Restart the vehicle and monitor the gauge.
7. Step 6: Thread the refrigerant can onto the recharge hose.

Which gas is used in AC?

Freon gas

How often do you add Freon to AC unit?

How Often Does a Central Air Conditioner Need Refrigerant? If everything is working properly, your AC should never need refrigerant. In fact, a central air conditioner should never need refrigerant added unless there's a refrigerant leak.

What kind of Freon does my car take?

In most cars that are on the road today, R134a refrigerant makes the A/C system blow cold on hot days. Selected for its low flammability and safety, as well as because it's kinder to the environment, almost every car built since 1994 is equipped with R134 refrigerant.

Is r134a toxic?

Adverse Health effects. The inhalation of high concentrations of R134a vapour may cause temporary central nervous system depression, with narcosis, lethargy and anaesthetic effects. Continued breathing of high concentrations of R134a vapours may produce cardiac irregularities, unconsciousness and death.

How long does Freon last in a car?

three years

How much r134a does my car need?

Most newer passenger car A/C systems do not hold much refrigerant (only 14 to 28 oz.), so you don't want to add too much if the system is low. One can of R-134a typically holds 12 oz. of refrigerant.

How do you know if your refrigerator is low on Freon?

Locate the refrigerator's condenser and place your hand next to it to sense heat. If the condenser feels cold and the refrigerator has been running, there may be a lack or absence of Freon. The problem may also be due to a defective condenser or clogged system.

When did they stop using Freon in refrigerators?

1994

Which is the suction side of a compressor?

The low side, or suction line, will be the line connected to the compressor from the top or higher position. It will be cold to the touch and may be wrapped with insulation. This is where freon enters the compressor as a gas.

Why is my refrigerator running but not cooling?

Clogged coils can cause poor cooling. Check to make sure nothing is stuck in the condenser fan and that it spins freely (models with coils on the back won't have a fan). To do this, unplug the fridge and pull it out. Plug in the fridge and make sure the fan runs when the compressor is running.

How much does it cost to fix a Freon leak in a refrigerator?

Repairing a refrigerant leak costs about $200 to $300.

What is the low side of a refrigeration system?

The low side of a refrigeration system usually houses the evaporator, suction line, and any accessory components located within the suction line. Accessory components can include evaporator pressure regulator valves, suction filters and driers, crankcase pressure regulator valves, and suction accumulators.

Does freon have a smell?

Freon is mostly odorless, but if you smell a chemical odor in or around your fridge you should investigate the possibility that your refrigerator is leaking Freon. Your fridge should not produce any smells during normal operation. Be aware that Freon is a colorless gas, so you won't be able to see it.

Is refrigerant toxic?

Freon is a tasteless, mostly odorless gas. When it is deeply inhaled, it can cut off vital oxygen to your cells and lungs. Limited exposure — for example, a spill on your skin or breathing near an open container — is only mildly harmful. However, you should try to avoid all contact with these types of chemicals.

How long does Freon last in a refrigerator?

Freon gas in a refrigerator is in a sealed system that if not compromised will last almost forever. Your refrigerator freon should never leak out and it does not break down.

Is it worth it to fix refrigerator?

replace. Built-in refrigerators are almost always worth repairing. Not only are they less expensive to repair but typically have a longer lifespan anyways. Side-by-side refrigerators should be repaired within a five-year window and considered for replacement after that.

How much does it cost to add Freon to a refrigerator?

The average time to evacuate, inspect and refill a refrigerator freon system is about 20 minutes and the cost in parts would be about $20 but expect to pay a good amount of money for the service call.

What happens if you put too much Freon in a refrigerator?

The trouble with overcharged refrigerant The excess refrigerant will collect inside the compressor and lead to subcooling, temperatures below normal. The extra refrigerant can also flood the compressor and damage its mechanical components. (This is called slugging.)

How much does it cost to add Freon?

Freon costs an average of $150 for a Freon refill. Most people pay between $100 and $350 for a refill, depending on the size and type of your HVAC unit.

How much does it cost to put Freon in a refrigerator?

Refrigerator Freon Gas Leak Repair Cost Repairing a refrigerant leak costs about $200 to $300. Freon is a refrigerant that's not present in most modern fridges because it harms the ozone layer.

Can you use car Freon in a refrigerator?

Refrigerators manufactured before 1995 usually contained R-12, a CFC, as a refrigerant. Only EPA certified technicians can buy R-12. Both refrigerators and automobiles use R-134a as a refrigerant, and adults can buy it at most automobile parts stores.

Can you replace Freon in a refrigerator?

You should only add Freon yourself if you don't want to contact a repair company and are confident in handling a fridge. To start, identify why you fridge isn't working properly. Then, install a bullet-piercing valve and check the Freon by using a specialized gauge before adding the Freon.
