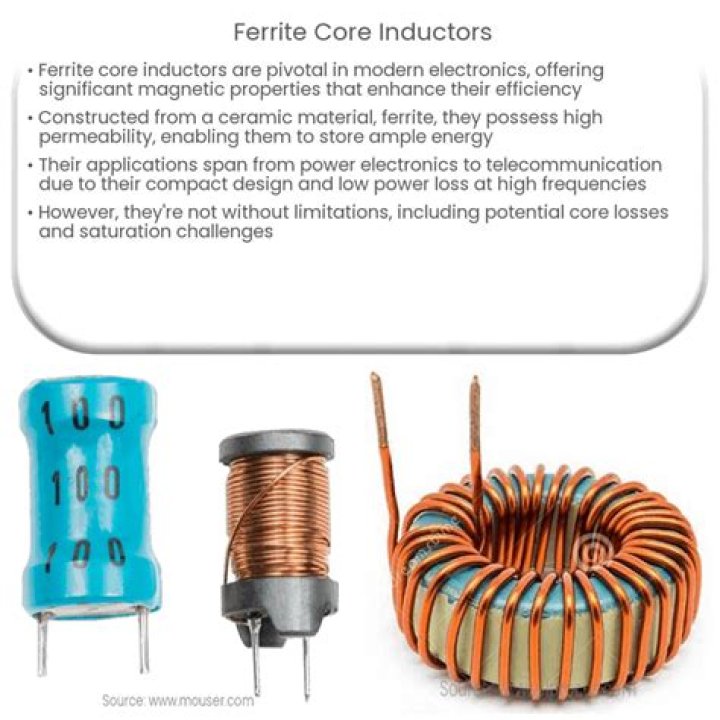

What is ferrite core inductor?

In electronics, a ferrite core is a type of magnetic core made of ferrite on which the windings of electric transformers and other wound components such as inductors are formed. It is used for its properties of high magnetic permeability coupled with low electrical conductivity (which helps prevent eddy currents).

Besides, what does a ferrite core do?

A ferrite core or bead can be added to an inductor to improve, in two ways, its ability to block unwanted high frequency noise. First, the ferrite concentrates the magnetic field, increasing inductance and therefore reactance, which impedes or 'filters out' the noise.

Secondly, what is ferrite core permeability? Ferrite Materials: Ferrite Cores They have a low coercivity and are also known as soft magnetic ferrites. The materials range in permeability from 900µ to 15,000µ and are available in a variety of geometries including toroids, shapes and pot cores.

Consequently, where are ferrite core inductors?

Ferrite core inductors can be used as the ferrite rod antenna for medium wave (MW) receivers. It can be used at high and medium frequencies. The ferrite core inductors is used for power transformers work in the low frequency range (1 to 200 kHz usually). It is used in switching circuit.

Is ferrite core necessary?

Assuming that the devices being connected, and the cable itself are not defective, ferrite cores are going to have zero effect on picture quality. The primary intent of the ferrite cores is to prevent the cable from behaving like an antenna that radiates EMI from the devices connected to the ends of the cable.

Related Question Answers

Do ferrite beads work?

Because ferrite bead impedance is inductive, ferrite beads are used to attenuate high-frequency signals in electronic components. As DC current increases, a ferrite bead will "saturate" and lose inductance. At relatively high currents, saturation can reduce the ferrite bead impedance by up to 90%.

How does a ferrite core reduce noise?

A ferrite core or bead can be added to an inductor to improve, in two ways, its ability to block unwanted high frequency noise. First, the ferrite concentrates the magnetic field, increasing inductance and therefore reactance, which impedes or 'filters out' the noise.

Can I remove ferrite bead?

Remove a USB cable ferrite bead. If it's made of iron and its necessity is in doubt, you might consider eliminating it from a balloon or kite rig. The ferrite beads near the small plug on the USB cables that came with the PLOTS visible/IR camera kit are easy to remove.

What is a ferrite material?

A ferrite is a ceramic material made by mixing and firing large proportions of iron(III) oxide (Fe₂O₃, rust) blended with small proportions of one or more additional metallic elements, such as barium, manganese, nickel, and zinc. Hard ferrites have high coercivity, so are difficult to demagnetize.

Why do cables have ferrite core?

A ferrite core or bead can be added to an inductor to improve, in two ways, its ability to block unwanted high frequency noise. First, the ferrite concentrates the magnetic field, increasing inductance and therefore reactance, which impedes or 'filters out' the noise.

Where do you put ferrite beads?

Ferrite beads are passive electronic components that can suppress high frequency signals on a power supply line. They are normally placed around a power/ground line pair that is incoming to a particular device, such as the power cord for your laptop.

How does ferrite choke work?

A Ferrite bead or ferrite choke is used to attenuate high-frequency electromagnetic interference (EMI) in a circuit. It works like a low pass filter that allows only low frequency signals to pass through a circuit and eliminates the high-frequency noise.

What is ferrite core made of?

The composition of ferrite cores in transformers is chiefly iron oxides, combined with nickel, zinc and manganese compounds. These compounds are characterized by low coercivity and therefore, are also known as soft ferrites. Transformers are driven by the flux linkage between primary, secondary and tertiary windings.

What is an air core inductor?

The term air core coil describes an inductor that does not use a magnetic core made of a ferromagnetic material. The term refers to coils wound on plastic, ceramic, or other nonmagnetic forms, as well as those that have only air inside the windings.

Why is soft iron core used in transformer?

The core of the transformer is made up of soft iron to increase the magnetic field and this helps in saving of energy . Explanation : When the core is filled with soft iron , the magnetic field becomes very strong. This ensures perfect conversion of energy and hence the core is made of soft iron.

Why silicon steel is used in transformer core?

Silicon steel is a soft magnetic material that is used in electrical power transformers, motors and generators. It has a high silicon content of about 3.2 mass %, which increases the electrical resistivity of iron and, therefore, reduces eddy current losses.

Which core material is used in high frequency transformers?

A popular application of carbonyl iron-based magnetic cores is in high-frequency and broadband inductors and transformers, especially higher power ones. Carbonyl iron cores are often called "RF cores".

What is a ferrite antenna?

Ferrite rod antenna includes: The ferrite rod aerial or ferrite bar antenna is a form of RF antenna that is almost universally used in portable transistor broadcast receivers as well as many hi-fi tuners where reception on the long, medium and possibly the short wave bands is required.

What is variable inductor?

Definition of variable inductor. : an inductor or reactor whose inductance is continuously adjustable.

What are the different types of inductors?

Types of Inductors and Applications

• Air Core Inductor.
• Iron Core Inductor.
• Ferrite Core Inductor. Soft Ferrite. Hard Ferrite.
• Iron Powder Inductor.
• Laminated Core Inductor.
• Bobbin based inductor.
• Toroidal Inductor.
• Multi-layer Ceramic Inductors.

Is ferrite magnetic?

They are electrically nonconductive, meaning that they are insulators, and ferrimagnetic, meaning they can easily be magnetized or attracted to a magnet. Ferrites can be divided into two families based on their resistance to being demagnetized (magnetic coercivity).

What is absolute permeability?

Absolute permeability is an ability to flow fluid through a permeable rock when only one type of fluid is in the rock pore spaces. The absolute permeability is used to determine relative permeability of fluids flowing simultaneously in a reservoir.

How is ferrite made?

The Ceramic Ferrite Magnet is made by a powder metallurgy process. Ferrite Magnets (Ceramic Magnets) are produced by calcining (at between 1000 to 1350 degrees C) a mixture of iron oxide (Fe2O3) and strontium carbonate (SrCO3) or barium carbonate (BaCO3) to form a metallic oxide.

What is the difference between permittivity and permeability?

One of the major difference between the permittivity and the permeability is that the permittivity measures the obstruction generates by the material in the formation of an electric field. Whereas, the permeability measures the ability of the material to allow the magnetic lines of force to pass through it.

What material has the highest magnetic permeability?

The more conductive a material is to magnetic fields, the higher its permeability. Most materials have μ_R near 1, including copper, and gold. The exceptions are nickel, iron, etc. Permeability of most metals is 1.0.

What is Mew not?

Mu naught or µ₀ is the permeability constant is synonymous to the permeability of free space or as magnetic constant. Mu naught value is the measure of the amount of resistance offered against the formation of the magnetic field in vacuum.

What is ferrites and its applications?

Hard ferrites are used in permanent magnets. Hexagonal ferrites like barium ferrite are used for such type of application. They can also be used in transformer core. These ferrites are used as component of electronic filter, microwave devices, magnetic switches and memory elements for computers.

What is the formula of permeability?

The permeability constant μ₀, also known as the magnetic constant or the permeability of free space, is a measure of the amount of resistance encountered when forming a magnetic field in a classical vacuum. Until 20 May 2019, the magnetic constant had the exact (defined) value μ₀ = 4π × 10⁻⁷ H/m ≈ 12.57×10⁻⁷ H/m.

What is the value of mu?

mu naught value : µ₀ = 4pi × 10^-7 H/m.

How many turns does the inductor have?

A hollow air cored inductor coil consists of 500 turns of copper wire which produces a magnetic flux of 10mWb when passing a DC current of 10 amps.

How do you make an air core inductor?

Making a Simple Air Core Inductor (Induction Coil)

1. Step 1: What You Need. A small reel of enamelled copper wire.
2. Step 2: Turning the Wire. Using the drill bit as a template, wrap the wire, counting up to the number of desired turns.
3. Step 3: Forming the Legs.
4. Step 4: Tinning the Legs.
5. Step 5: Completed Coils.
6. 38 Discussions.

How do you select a core for an inductor?

The core must be large enough in size and low enough in permeability to avoid saturation (or shift in inductance below the minimum required level.) These factors increase the turns and length of copper required, causing wire loss to become an issue.

Why do transformer cores have air gaps?

In the case of a transformer or inductor, the air gap only reduces the slope of the B/H loop, reducing permeability and inductance, and hence increasing the magnetizing current in the primary. Thus, in the transformer example, the gap is used to reduce the inductance (perhaps for resonant applications).

How is toroid inductance calculated?

If one uses a magnetic core as a form to wind the toroid on, the inductance of the toroid can be found by calculating the value from the appropriate formula shown below for the air core inductor and then multiplying that value by the relative permeability of the magnetic core material.

What is Al value of ferrite core?

Ferrite inductors have a ferrite core. The AL value is the base relationship between the inductance, with a given ferrite core, and the number of turns. Calculate the AL value using the following formula: AL = [(100/N)^2)] x L.

What is an inductor coil?

An inductor, also called a coil, choke, or reactor, is a passive two-terminal electrical component that stores energy in a magnetic field when electric current flows through it. An inductor typically consists of an insulated wire wound into a coil around a core.
