What is Ndi PTZ?

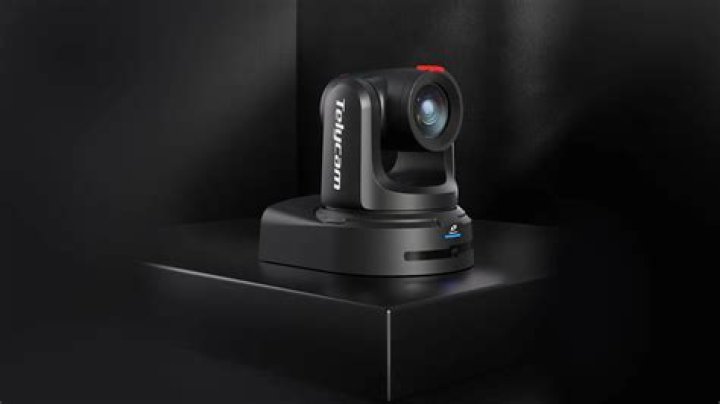

NDI PTZ Cameras

NDI, is NewTek's industry leading IP technology. PTZ camera models are now available with 12X, 20X and 30X optical zoom lenses.

Similarly one may ask, what is NDI and how does it work?

Network Device Interface (NDI) is a royalty-free software standard developed by NewTek to enable video-compatible products to communicate, deliver, and receive high-definition video over a computer network in a high-quality, low-latency manner that is frame accurate and suitable for switching in a live production

Additionally, how does NDI work? NDI allows multiple video systems to identify and communicate with one another over IP, and to encode, transmit and receive many streams of high quality, low latency, frame-accurate video and audio in realtime.

Correspondingly, is NDI a 4K?

IP output via NDI with near-zero latency. Support for 4K UHD and 1080p video at up to 60fps.

Are PTZ cameras any good?

People love PTZ cameras due to their wide area of coverage that greatly surpasses that of other camera types. In smaller areas, their pan feature can give 360 degrees of coverage; you only need to swivel the camera left or right or tilt up and down to monitor any area you want.

Related Question Answers

What is the difference between SDI and NDI?

What is the difference between NDI and SDI? SDI is a technology that has been around for decades. NDI is a much newer technology that uses the latest video compression methods to make sending and receiving high-quality video possible over standard computer networks.

What is the advantage of NDI?

As the future of video moves towards more network based distribution solutions, NDI is a flexible and versatile solution, allowing multiple video streams on a shared connection. NDI supports high quality, low latency, frame-accurate video over standard Ethernet networks.

What is NDI studio?

Many NDI devices are designed for remote control via NDI in addition to providing video, audio or both. NDI Studio Monitor will autodetect those devices and can supply controls on the viewport to operate those devices.

How do teams use NDI?

Turning on NDI® technology in Teams

next to your profile picture at the top of Teams and choose Settings. Then select App Permissions and turn on the toggle next to Production Capabilities. and choose Broadcast over NDI.

How do I set up NDI network?

First of all make sure you have OBS Studio installed.

Download the NewTek NDI plugin for OBS Studio. You can download the plugin from GitHub here or from the OBS Studio plugin directory here.
Download and install the Camera for OBS Studio iOS App.
Configure the device output.
Add the NDI input into your OBS Studio Scene.

Does NDI need Internet?

NDI uses your local network. You don't even need internet access to send a video feed to the other PC when using NDI. It does need a wired gigabit network connection for both machines - wifi just won't cut it. If all you're doing is recording the video, then your internet speed doesn't matter.

What is the meaning of NDI?

NDI

Acronym	Definition
NDI	Non-Developmental Item
NDI	National Death Index
NDI	Neck Disability Index (physical therapy)
NDI	New Dietary Ingredient (FDA)

What is NDI signal?

NDI is a network protocol that enables audio, video, and metadata signals to be sent over standard networks in real-time. NDI is bidirectional, low latency, and can transmit video up to 4K and beyond. It is also used by individual users for video presentations or game streaming on single PC setups.

Does NDI work over wifi?

NDI will work over a wireless network but at a reduced frame rate depending on the bandwidth available. As a general rule of thumb 100Mbit is recommended per 1080p video feed. The actual bandwidth used may be much less than 100Mbit (even below 20Mbit) depending on the complexity and size of the video being sent.

What port does NDI use?

The NDI messaging server uses port 5960. Subsequent ports required by the sending device to accommodate the total number of NDI video streams it supports are assigned in ascending order. Ports must be open through the entire path between network subnets.

Does NDI support audio?

As well as video data, each NDI stream can carry up to 16 channels of embedded floating point audio and bi-directional data, meaning you can use NDI to control tally lights, PTZ cameras and the like all over one network connection.

Is NDI multicast?

NDI supports multicast-based video sources using multicast UDP with forwards error correction to insure against packet loss. Multicasting allows for a single NDI source to be delivered to multiple receivers by replicating the NDI packets from the sender to any number of receivers.

How much bandwidth does NDI use?

For 1080p60 streams, Full bandwidth NDI® utilizes about ~150Mbps with latencies of ~16ms where HX can use anything between 1~50Mbps with latencies ranging between 80-200ms depending on the equipment used.

What is NDI Discovery Server?

The NDI discovery server function is a discovery mechanism that is different from the NDI automatic discovery function. It supports NDI centralized registration discovery and cross-network segment discovery.

What is an NDI encoder?

NDI uses compression to enable transmission of a large number of video streams across existing infrastructure, specifically discrete cosine transform (DCT), which converts video signals into elementary frequency components. Uniquely, and importantly, NDI is the first ever codec to provide multi-generational stability.

Is NDI Unicast or Multicast?

Recommended dedicated bandwidth for NDI and NDI|HX:

NDI relies on mDNS (multicast Domain Name System) to create a zero configuration environment. Unlike other video over IP based protocols, there is no need to remember IP addresses, host names, or port numbers.
