What is t6 heat treatment process?

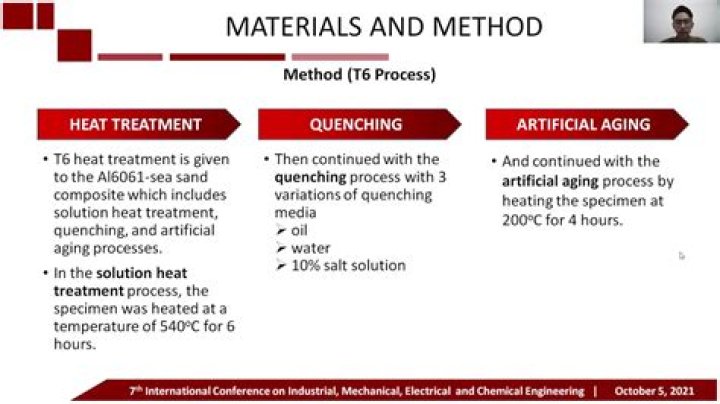

T6 Heat Treatment is a two-phase process which is applied to Aluminium, Copper, or Silicon alloys to increase the strength of the alloy by as much as 30%.

Keeping this in consideration, what is t4 and t6 heat treatment?

Heat Treating T Temper Codes T4 - Solution heat treated, and naturally aged to a substantially stable condition. T5 - Cooled from an elevated temperature shaping process then artificially aged. T6 - Solution heat treated then artificially aged. T8 - Solution heat treated, cold worked, then artificially aged.

Also Know, what does the t6 mean in aluminum? Wrought aluminum alloys, such as the 6061 alloy, are worked by extruding, rolling or forging them into specified shapes. In the case of 6061-T6 aluminum alloy, the “T6” indicates that it was solution heat-treated and artificially aged. The suffixes may include additional numbers.

Beside this, what does t6 temper mean?

Here, the T6 temper means that the alloy is solution treated at high temperatures and then artificially aged at a certain temperature (for example, 420–480K) to yield the precipitation hardening of alloys.

What is t5 heat treatment?

Precipitation (Aging) – TE Condition (T5 or T51) This type of heat treatment is done at these relatively low temperatures to eliminate growth. They are also used to stabilize the castings di- mensionally (improving mechanical properties somewhat) and to improve machinability.

Related Question Answers

What is the difference between t4 and t6 aluminum?

T4 is also slightly less expensive than T6 and has a slightly lower ultimate tensile strength and yield strength, with a higher elongation percentage, which increases the formability of the T4 temper. Aluminum sheet 6061 T4 is also cost friendlier and has improved formability over T6.

What does the T stand for in aluminum?

The “H” designation means strain hardened, the “O” designates an annealed aluminum alloy, the “T” indicates that the aluminum alloy has undergone thermal treatment, and the “W” designates thermal heat treating.

What is t6?

T6. The sixth thoracic vertebrae (T6), located just below the level of the shoulder blades, works in conjunction with the remaining 11 segments to protect the nerves of the spine. Each vertebra is larger than the one above it, increasing in diameter as they run the length of the spine.

What do you mean by heat treatment?

Heat treating (or heat treatment) is a group of industrial, thermal and metalworking processes used to alter the physical, and sometimes chemical, properties of a material. Heat treatment techniques include annealing, case hardening, precipitation strengthening, tempering, carburizing, normalizing and quenching.

What is O temper?

The O Temper “Soft Annealed” process is applied to wrought metals. It is a thermal treatment to reduce mechanical property levels to their minimums. O Temper metals are often described as “dead soft.” Annealing reduces strength and hardness while increasing ductility.

What is o condition Aluminum?

The O Temper “Soft Annealed” process is applied to wrought metals. It is a thermal treatment to reduce mechanical property levels to their minimums. O Temper metals are often described as “dead soft.” Annealing reduces strength and hardness while increasing ductility. Therefore it is softer and more workable.

What is precipitation heat treatment?

Precipitation heat treatment is the most widely used technique to enhance the yield the strength of pliable materials. The treatment makes use of aging or heating alloys at extremely high temperatures in order to produce a constituent that can undergo precipitation from a solid solution.

Is 6061 heat treatable?

Magnesium and silicon are the major alloying elements in this metal, and 6061 is generally strong and corrosion resistant. It is heat treatable and crack resistant when stress is removed. When 6061 aluminum is brought to us off the shelf, it's most often in O condition, which is its softest, most pliable state.

What is the difference between t6 and t651?

The difference between the state T6 and T651 of 6061 aluminum sheet is that the internal stress of T6 is relatively large and the processing will be deformed under normal circumstances; the suitable state for processing should be T651, which is based on T6 to stretch and eliminate internal stress.

What is the difference between 7075 t6 and 7075 t651?

Alloy 7075, a cold finished aluminum wrought product, has the highest strength of all aluminum screw machine alloys. The -T6 and -T651 tempers have a typical tensile strength of 83 ksi, which is higher than many mild steels. Due to its very high strength, alloy 7075 is used for highly stressed structural parts.

What is t6 heat treatment for Aluminium?

T6 Heat Treatment is a two-phase process which is applied to Aluminium, Copper, or Silicon alloys to increase the strength of the alloy by as much as 30%.

What's the difference between 6061 t6 and 6061 t651?

The difference between the state T6 and T651 of 6061 aluminum sheet is that the internal stress of T6 is relatively large and the processing will be deformed under normal circumstances; the suitable state for processing should be T651, which is based on T6 to stretch and eliminate internal stress.

What is h111 temper?

Temper Types H111 - Some work hardening imparted by shaping processes but less than required for H11 temper. H32 - Work hardened by rolling then stabilised by low-temperature heat treatment to quarter hard.

What happens when you heat aluminum?

When the temperature of aluminium is increased, the metal expands and this is called thermal expansion.

What is t42 temper?

T42 indicates material is solution heat treated from the O or F temper to demonstrate response to heat-treatment, and naturally aged to a substantially stable condition.

What is h14 temper?

H14 designates the temper, and means that 3003 has been strain hardened and partially annealed. In this condition, 3003 can be easily formed. Embossing or debossing 3003 in this temper should not strain or crack the aluminum.

What is the difference between t5 and t6 aluminum?

The main difference between T5 and T6 is in strength, the strength of T6 is higher than that of T5, and the performance in other aspects is similar. In terms of price, due to differences in the production process, aluminum plate T6 is slightly higher than T5.

What is t6 condition?

-T6: Solution heat treated and then artificially aged. Mechanical property limits not affected by cold working. Most alloys in the -w and -T4 conditions artificially aged to -T6. -T61: Solution heat treated and then artificially aged.

Can you bend 6061 t6 aluminum?

Answer: 6061-T6 aluminum is tempered and notorious for not bending easily. From a bending perspective, it's always best to bend these parts in an annealed state and then temper them to the correct condition.

What is 6061 t6 aluminum used for?

6061 Aluminum Sheet The T6 refers to the temper or degree of hardness, which is achieved by precipitation hardening. This grade has a good strength-to-weight ratio and is also heat-treatable. With great formability and weldability, it is used for engineering and structural applications, boats, furniture, and more.

What is better 6061 or 7075 aluminum?

Chemical differences But the difference is how much is contained in each. Specifically, 6061 aluminum contains less zinc than 7075. Meaning that while 6061 alloys provide superior welding abilities and workability, it doesn't boast the same high strength and stress resistance as 7075.

How hard is 6061 t6 aluminum?

T6 temper 6061 has been treated to provide the maximum precipitation hardening (and therefore maximum yield strength) for a 6061 aluminum alloy. It has an ultimate tensile strength of at least 290 MPa (42,000 psi) and yield strength of at least 240 MPa (35,000 psi).

Is t6 aluminum strong?

6061 Aluminum Sheet The T6 refers to the temper or degree of hardness, which is achieved by precipitation hardening. This grade has a good strength-to-weight ratio and is also heat-treatable. With great formability and weldability, it is used for engineering and structural applications, boats, furniture, and more.

What is 7075 t6 aluminum?

7075 aluminium alloy (AA7075) is an aluminium alloy, with zinc as the primary alloying element. It has excellent mechanical properties, and exhibits good ductility, high strength, toughness and good resistance to fatigue. It is produced in many tempers, some of which are 7075-0, 7075-T6, 7075-T651.

Is 6061 aluminum stronger than steel?

Hardness (Bhn) Negligible difference. 6061-T6 will deflect more easily than steel, but springs back to its original shape. This helps Miracle products soften the force of impact loads.

What does 6063 mean?

AA 6063 is an aluminium alloy, with magnesium and silicon as the alloying elements. The standard controlling its composition is maintained by The Aluminum Association. It has generally good mechanical properties and is heat treatable and weldable. It is similar to the British aluminium alloy HE9.

How does age hardening work?

Age hardening, also known as precipitation hardening, is a type of heat treatment that is used to impart strength to metals and their alloys. The metal is aged by either heating it or keeping it stored at lower temperatures so that precipitates are formed. The process of age hardening was discovered by Alfred Wilm.

How does 6061 aluminum relieve stress?

Usually for AA 6061 alloy, stress relieving is performed by re-heating the parts at 343°C for 1 h. This stress relieving is however accompanied by a considerable loss of material strength which subsequently reduces the functionality of the parts.

How does precipitation hardening work?

Precipitation hardening, also called age or particle hardening, is a heat treatment process that helps make metals stronger. The process does this by producing uniformly dispersed particles within a metal's grain structure that help hinder motion and thereby strengthen it—particularly if the metal is malleable.

What is t4 heat treatment?

T3 - Solution heat treated, cold worked, and naturally aged to a substantially stable condition. T4 - Solution heat treated, and naturally aged to a substantially stable condition. T8 - Solution heat treated, cold worked, then artificially aged. T9 - Solution heat treated, artificially aged, then cold worked.

How do you harden aluminum at home?

This involves two steps—solution heat treating and aging. Solution heat treatment is done by raising the alloy temperature to about 980 degrees F and holding it there for about an hour. The purpose of this is to dissolve all the alloying elements in a solid solution in the aluminum. Then we quench the alloy in water.

What is heat treated aluminum?

Solution heat treatment is done by raising the alloy temperature to about 980 degrees F and holding it there for about an hour. The purpose of this is to dissolve all the alloying elements in a solid solution in the aluminum. These arrays are called GP zones, and they strengthen the aluminum considerably.

Can you quench aluminum?

Many aluminum casting alloys are quenched in boiling water because the quench rates developed are sufficient to achieve the required properties. However, in cases where premium properties are desired, (such as castings alloys A357 and A201), the use of colder water or polymers is recommended.

How do you heat treat 7075 aluminum?

HEAT TREATING 7075 may be solution annealed at 900°F for 2 hours at temperature, followed by a water quench. The alloy may then be given a precipation hardening (aging) heat treatment. Precipitation strengthening (aging) is done at 250°F for 24 hours and air cooled for T6.
