What is the EMF of Leclanche and Daniell cell?

Dry cell or Leclanche cell is a primary cell having a zinc anode, a carbon (graphite) cathode surrounded by manganese dioxide, and a paste containing ammonium chloride as electrolyte. The electromotive force (emf) produced by a dry cell is 1.5 V. Dry cell is not reversible and therefore have a limited operating life.

Also, what is the EMF of Daniell cell?

The definitions of electrical units that were proposed at the 1881 International Conference of Electricians were designed so that the electromotive force of the Daniell cell would be about 1.0 volts. With contemporary definitions, the standard potential of the Daniell cell at 25 °C is actually 1.10 V.

Additionally, how do you distinguish between Leclanche cell and Daniell cell? both use use zinc and carbon as the anode and cathode respectively.. leclanche cell offers an emf of 1.4 volts.. dry cell sometimes uses zinc chloride along with ammonium chloride as an electrolyte..

Secondly, what are the constituents of Leclanche and Daniell cell?

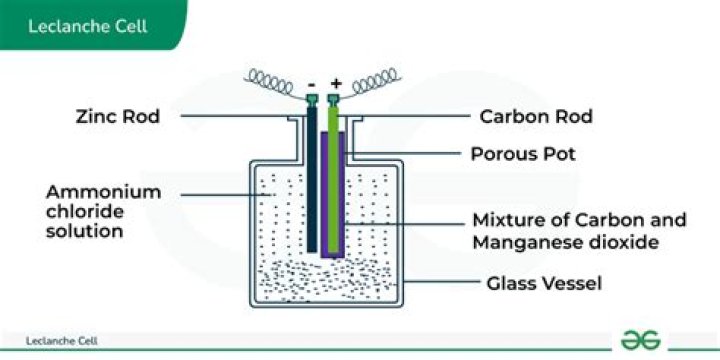

A Leclanche cell consists of a carbon electrode packed in a porous pot containing manganese dioxide and charcoal powder (Fig 2.22). The porous pot is immersed in a saturated solution of ammonium chloride (electrolyte) contained in an outer glass vessel. A zinc rod is immersed in electrolytic solution.

What is another name for the Leclanche cell?

zinc-carbon battery, also called the Leclanché cell, is a traditional general-purpose dry cell.

Related Question Answers

What is the EMF of cell?

The electromotive force of a cell or EMF of a cell is the maximum potential difference between two electrodes of a cell. It can also be defined as the net voltage between the oxidation and reduction half-reactions. The EMF of a cell is mainly used to determine whether an electrochemical cell is galvanic or not.

How is EMF value calculated?

Sample EMF Calculation

1. Mg(s) + 2 H⁺(aq) → Mg²⁺(aq) + H₂(g) a) Calculate the cell EMF for the reaction. b) Identify if the reaction is galvanic.
2. Solution: Step 1: Break the redox reaction into reduction and oxidation half-reactions.
3. Answer: The cell EMF of the reaction is +2.372 Volts and is galvanic.

Where is Daniell cell used?

The Daniell cell can be used to 'generate' electricity, by consuming an electrode, or to store electricity.

What affects the EMF of a cell?

E.m.f. of a cell depends upon the material of electrodes and electrolyte used in the cell. It is independent of shape of electrodes, distance between electrodes and the amount of electrolyte.

Is Daniell cell reversible?

Hence, the Daniell cell consists of electrons (negative charges) travelling around the outer circuit, from the cathode to the anode, while positive ions travel through the solution from cathode to anode. Hence, the Daniell cell is reversible, if the current drawn from (or fed to) it is small.

Who invented Daniell cell?

John Frederic Daniell

How Daniell cell is represented?

The cell is represented by keeping in view the following points: 1- It is customary to write the anode of the cell on the left and the cathode to the right. /Cu. In a Daniell cell, a zinc rod partially immersed in a ZnSo4 solution and a copper rod in a CuSo4 solution are the two electrodes.

Which solution is used in Leclanche cell?

Leclanche cell is a primary cell, handy for sporadic use, with positive anode of zinc encompassed by a mixture of manganese dioxide and powdered carbon in a pot, which is porous. The pot and the negative zinc terminal remained in a container holding ammonium chloride solution.

Is Leclanche cell rechargeable?

The Leclanché battery wet cell was the forerunner of the modern zinc-carbon battery (a dry cell). The addition of zinc chloride to the electrolyte paste raises the e.m.f. to 1.5 volts.

What is difference between Daniell cell and galvanic cell?

Galvanic Cell: The electrochemical cell which uses chemical energy to produce electrical energy is called galvanic cell or voltaic cell, e.g. Daniell Cell. Electrolytic Cell: The electrochemical cell which uses electrical energy to cause chemical reactions is called electrolytic cell.

Why salt bridge is used in Daniell cell?

A salt bridge is used to connect the oxidation and reduction half-cells of a galvanic cell (voltaic cell). It maintains electrical neutrality within the internal circuit, preventing the cell from rapidly running its reaction to equilibrium. Hence, it prevent voltage drop.

How do Leclanche cells work?

The process which generates power in a Leclanché cell starts when zinc particles on the surface of the anode oxidize, i.e. when zinc atoms surrender their valence electrons to end up becoming the positively charged particles. This flow of electrons frames the electric current.

Why Leclanche cell is called dry cell?

Why Leclanche cell is also called Dry ? Leclanche cell is also called dry cell because it has no free liquid in the cell. Its electrolyte is a moist paste rather than a fluid due to which this cell can be held in any position.

Why MnO2 is used in dry cell?

The main use for MnO2 is for dry-cell batteries, such as the alkaline battery and the zinc-carbon battery. Furthermore, MnO2 is also used as a pigment and as a precursor to other manganese compounds, such as KMnO4. MnO2 is also used as a pigment and as a precursor to other manganese compounds, such as KMnO4.

How does the Daniell cell work?

The Daniell cell works by the dissolving of the zinc and the plating on the copper cathode, and with a positive potential difference of 1.1 V. It works in that direction and not the reverse (at standard conditions) because copper atoms are more closely and strongly bonded in the solid metal than zinc atoms.

What do you mean by a primary cell?

primary cell. n. (General Physics) an electric cell that generates an electromotive force by the direct and usually irreversible conversion of chemical energy into electrical energy. It cannot be recharged efficiently by an electric current. Also called: voltaic cell Compare secondary cell.

Is anode positive or negative?

In a galvanic (voltaic) cell, the anode is considered negative and the cathode is considered positive. This seems reasonable as the anode is the source of electrons and cathode is where the electrons flow.

Why cathode is positive in Daniell cell?

Because as oxidation occurs metal ions are removed from the anode, this results in accumulation of electrons on the anode, making it negative. At cathode as reduction of metal ions from electrolyte takes place, electrons from cathode are used up hence cathode is relatively positive.

What is standard EMF of a cell?

Electromotive Force (EMF) has been measured to be 1.100 V. A concentration of 1 M in an ideal solution is defined as the standard condition, and 1.100 V is thus the standard electromotive force, DE^o, or standard cell potential for the Zn−Cu galvanic cell.

What is the use of Leclanche cell?

The Leclanche cell was utilized widely for telegraphy, electric bell and signaling work; and for work where intermittent and low current was needed. The battery cell by Georges Leclanche proved out to be extremely advantageous in the early years of the telephones.

What is EMF of Daniell cell?

In a Daniell cell, the potential at zero current (i.e. on open circuit), which is called the electromotive force (emf), E_oc = 1.107 V at 25 °C. If it is assumed that the cell can maintain this potential at low currents, then. δ W = 2 × 1.107 × 96485 = 213618 kJ/kmol .

Why dry cell does not have an indefinite life?

Dry cells cannot be recharged. Dry cells do not have an indefinite life. This is because; NH4Cl paste is acidic in nature, and it continues to corrode the zinc container even when not in use.

What is Leclanche cell in physics?

Leclanche cell is a primary cell, handy for sporadic use, with positive anode of zinc encompassed by a mixture of manganese dioxide and powdered carbon in a pot, which is porous. The pot and the negative zinc terminal remained in a container holding ammonium chloride solution.

What is internal resistance of Leclanche cell?

The internal resistance of the cell is about 5–8 Ohm.

What is unique about a Daniell cell?

It is known as the Daniell cell. Daniell's clever setup isolated the copper and zinc ions from each other (which prevents polarization from interrupting the flow of electricity), while at the same time allowing ions in the electrolyte to move between the two metals, necessary to complete the electrical circuit.

Is Leclanche secondary cell?

Leclanche cell is a primary cell, handy for sporadic use, with positive anode of zinc encompassed by a mixture of manganese dioxide and powdered carbon in a pot, which is porous. The pot and the negative zinc terminal remained in a container holding ammonium chloride solution.
