Where is the coolant drain plug?

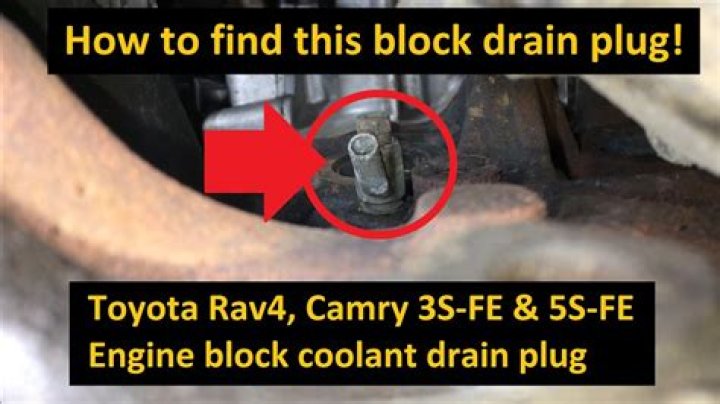

The drain will be located on the rear of the block, near the bottom but not level with the oil pan. Typically they are located closer to the flywheel housing then the outside of the engine pan and will look like large bolts set into the block which are not holding anything in place.

Similarly one may ask, how many gallons of coolant does a 6.7 Cummins take?

Your vehicle requires 4 gallons of Full Strength Liquid Chill® Synthetic Engine Coolant or 8 gallons of 50/50 Premixed Liquid Chill® Synthetic Engine Coolant.

Likewise, how do you drain an engine block of coolant? How to Flush a Car Engine Block

1. Remove the lower radiator hose and catch the draining coolant in a bucket.
2. Remove the top radiator hose and flush the system out with a normal hose.
3. Continue until the water runs clear out of the bottom of the engine.
4. Refill with coolant and reattach the radiator hoses.

Also Know, how do you drain the coolant reservoir on a Dodge Ram?

Place a five-gallon drain pan directly underneath the radiator drain valve on the bottom of the radiator. The drain valve is on the driver's side. Use an adjustable wrench to loosen the drain valve. Allow all of the coolant to drain from the radiator.

Where is the radiator drain petcock?

A radiator drain petcock is usually located above the bottom of the radiator. So even if you can open it, you're not draining the radiator completely. That's why shops always remove the lower radiator hose. That drains the entire radiator AND most of the coolant from the engine.

Related Question Answers

How much coolant is in the engine block?

How much coolant is in the engine block? Typically, there are between 1½ and 2 gallons of coolant in the engine block. The reason is that you would normally find this amount when draining coolant into a basin or fluid bucket.

Is coolant flush necessary?

Coolant flushes remove rust and scale deposits, which build up over time. It's important to get rid of these deposits because they can cause overheating and damage your entire cooling system. Getting a coolant flush will prevent the old anti-freeze from becoming acidic.

What does a radiator plug look like?

Hi pitina, The radiator plug is usually located at the base of the radiator and looks like a wing-nut. When removed the entire contents of your radiator will be drained. A radiator drain petcock is usually located above the bottom of the radiator.

How do I completely flush my cooling system?

To flush with water and remove any leftover residue from the old coolant/antifreeze, top up the radiator with clean water using a hose, and replace the radiator cap. Then, start the engine and leave it running for 15 minutes.

How do you clean a diesel radiator?

Fill radiator with water (if possible, use distilled, non-mineralized water). Turn on engine and allow it to idle for five minutes.

Make sure radiator is cool to the touch before cleaning.

1. Dilute cleaner.
2. Apply Simple Green Pro HD solution.
3. Remove foreign objects.
4. Rinse.
5. Dry.

What type of coolant does my 6.7 Cummins take?

a (Glysantin) G-05 HOAT coolant.

How much horsepower can a stock 6.7 Cummins handle?

When pushed to its absolute limit, the OEM fuel system on the 6.7L Cummins (lift pump, CP3, injectors) can support as much as 530rwhp and roughly 550rwhp with a turbo upgrade.

What problems does the 6.7 Cummins have?

EGR and DPF problems are common on the 6.7 Cummins – as well as many other modern diesels. The sheer torque of the 6.7L engine can also cause issues with the head gaskets failing. Otherwise, turbo problems are possible with higher mileage as they take a lot of abuse.

What kind of coolant does a 2014 6.7 Cummins take?

68104496AA is the correct coolant.

How much boost does a stock 6.7 Cummins make?

How much boost can a stock 6.7 Cummins handle? The stock head bolts should be good up to about 45psi back pressure, and 38 psi boost.

How much horsepower does a 2021 6.7 Cummins have?

The 2021 RAM Heavy Duty with Cummins 6.7L Turbo Diesel now offers 1,075 lb. -ft. of best-in-class torque and 420 horsepower. The legendary Cummins Inc.

What coolant does Cummins use?

Zerex Extreme Extended Life antifreeze/coolant from Valvoline is reported to be the only product that meets the Cummins CES 14603 spec and the Caterpillar EC-1 spec for heavy-duty applications without the need for supplemental silicate additives at first fill.

What kind of antifreeze does a Dodge Cummins take?

What kind of antifreeze does a Dodge Cummins take? Coolant Selection for 12v Cummins The Cummins 6BT requires a 50/50 mix of ethylene glycol based anti-freeze and water. We highly recommend a Fleetguard ELC (extended life coolant) for all Cummins diesels.

How do you drain the radiator fluid on a Dodge Ram 1500?

Locate the radiator's drain valve on the bottom of the radiator. You don't need to raise the Dodge Ram since it's a high truck with enough room for this job. Place a tray underneath the drain plug. Then, using your wrench, loosen the drain valve.

What if I overfill my coolant reservoir?

Coolant expands as it heats and contracts when it cools. The extra space prevents damage to your engine and hoses. In worst case scenarios, overfilling your antifreeze tank can lead to electrical damage if overflow comes into contact with engine wiring.

What color antifreeze does Dodge Ram use?

What color coolant does 2017 Ram 1500 use? It's giant to understand that color doesn't matter. While most Organic Acid Technology (OAT) coolants are generally orange, yellow, red or purple, Hybrid Organic Acid Technology (HOAT) coolants are orange and yellow.

What is coolant reservoir?

The coolant reservoir is the plastic reservoir mounted in the engine bay that stores the coolant for the engine. Because the coolant reservoir is part of the cooling system, when it has any issues it can quickly lead to issues with the engine.

How do I check the coolant level on a Dodge Ram 1500?

To check the coolant level: Open the coolant reservoir. Lift and remove the plastic dipstick from the reservoir neck. Check the coolant level on the dipstick.

What is a OAT coolant?

An organic additive technology (OAT) coolant contains only organic corrosion inhibitors such as carboxylates and triazole. These virtually non-depleting corrosion inhibitors give OAT coolants an extended life which can often be for the lifetime of the engine or vehicle.
