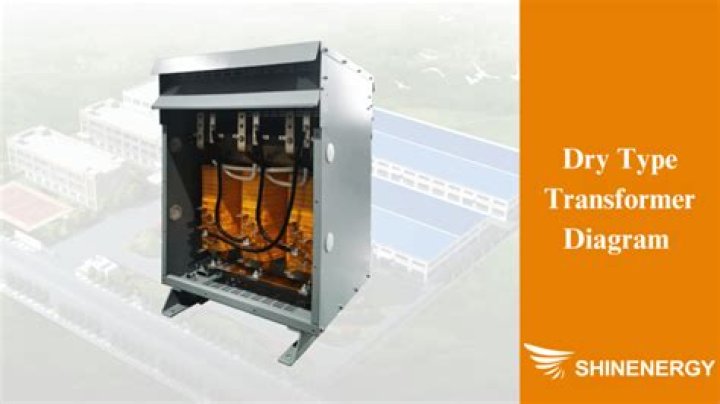

Which are the types of dry type transformer?

Some of the types of Dry Type Transformers are:

• Vacuum Pressure Impregnated (VPI) Transformers. This type of transformers are usually used for industrial as well as commercial purposes.
• Vacuum Pressure Encapsulated (VPE) Transformers.
• Open Wound Transformers.
• Cast Coil Transformers.

Similarly, you may ask, how many types of dry transformers are there?

Whatever your purpose, you can get all kinds of transformers including toroidal, medical isolation, power transformers, audio output transformers, three phase transformers, E&I transformers, audio line matching, SMPS and UI, at Miracle Electronics, who is a leading transformer manufacturer in India with all its

Secondly, what are dry type transformers used for? Dry-type transformers are often used for small and medium-voltage applications, making them ideal for the utility, industrial and commercial industries. They also have copper or aluminum windings that are sealed in varnish. Different variations exist depending on your application and environment.

One may also ask, what is dry type transformer?

A dry type transformer is a type of transformer which never uses any insulating liquid where its winding or core are immerged in liquid. Rather, the windings and core are kept within a sealed tank that is pressurized with air.

What is VPI dry type transformer?

Dry type transformer never uses any insulating liquid where its winding with core be immerged. Rather windings with core are kept within a sealed tank that is pressurized with air.

Related Question Answers

What are the various types of transformers?

Contents

• 1.1 Laminated core.
• 1.2 Toroidal.
• 1.3 Autotransformer.
• 1.4 Variable autotransformer.
• 1.5 Induction regulator.
• 1.6 Polyphase transformer.
• 1.7 Grounding transformer.
• 1.8 Phase-shifting transformer.

What is difference between dry type and oil type transformer?

There are two types of transformers being used in the industry currently: Dry-type transformers and oil-cooled transformers. Dry-type uses air as a cooling medium, and liquid cooled uses oil. Oil filled transformers have a higher standard energy efficiency, and as a result have a higher lifespan than dry type.

What is a Class H transformer?

The insulation system is the highest internal temperature a transformer can withstand. Previously, insulation rating was denoted by letter system. This has changed to actual temperature rating (Class A = Class 05°C, Class B = Class 150°C, Class F = Class 180°C, and Class H = Class 220°C).

What is oil-type transformer?

A transformer of which the magnetic circuit and windings are immersed in oil. Oil-type transformers are used in power distribution or electrical substations. Their core and coils are immersed in oil, which cools and insulates.

What are the main advantages of dry type transformer?

Advantages of cast resin dry-type transformers

• Self-extinguishing, low fire hazard: The transformer insulation consists of an epoxy resin and quartz powder mixture (an eco-friendly material).
• Zero oil usage:
• Eco-friendly and safe:
• Low cost installation and lower load losses:
• Low maintenance:
• High short time overload capacity:
• Crack-resistant:
• Moisture-resistant:

How do you test a dry type transformer?

The following routine tests must be carried out on all dry-type power transformers:

1. Separate-source voltage withstand test.
2. Induced voltage test.
3. Voltage ratio measurement and check of polarities and connections.
4. No-load current and no-load loss measurement.
5. Winding resistance measurement.

What is a wet Transformer?

A wet-type power transformer is smaller and more efficient than dry products. Liquid-filled transformers are suitable for indoor use because operating noise is lower. These transformers last longer than dry-type products. Numerous recycling options are available.

What is the transformer safety?

Key Safety Tips for Transformers

Keep the power off when working on the transformer. Make sure there is zero electrical leakage or continuity between the current source and the system. Use protective equipment and pay close attention to specific ratings for the transformer's voltage output.

What are the two main types of transformers?

There are two types of potential transformers; the conventional wound type (or electromagnetic type) and the capacitor voltage (potential) transformer. For voltages exceeding 100 kV (phase) the conventional type of potential transformer becomes extremely expensive owing to the insulation requirements.

How do you cool a transformer?

Cooling Methods of a Transformer

1. Oil Natural Air Natural (ONAN)
2. Oil Natural Air Forced (ONAF)
3. Oil Forced Air Forced (OFAF)
4. Oil Forced Water Forced (OFWF)

What is Dgpt in transformer?

The DGPT (Detection of Gas, Pressure and Temperature, see Fig. B18) for the integral filled transformers (see Fig. This type of transformer is manufactured up to around10 MVA. The DGPT as the buchholz detects the emissions of gasses and the internal over pressures. In addition it monitors the temperature of the oil.

What is the insulation used in dry type transformer?

Dry-type transformers. Epoxy prepregs (B-stage coated) based on Dacron-Mylar-Dacron (DMD) / Nomex-Mylar-Nomex (NMN) laminates and Nomex 410.

Why oil is used in a transformer?

Transformer oil is a mineral based oil that is commonly used in transformers for its chemical properties and dielectric strength. This oil in your transformer acts as an insulator and a cooling agent. The acid will form sludge which settles on the windings of the transformer resulting in reduced heat dissipation.

Why bushings are used in transformers?

The bushings used for the low voltage winding(s) of a transformer are often solid type with a porcelain or epoxy insulator. Their purpose is to control the voltage field around the center conductor so that the voltage distributes more uniformly across the surrounding insulation system in the bushing.

What is KVA power?

A KVA is simply 1,000 volt amps. A volt is electrical pressure. A term called apparent power (the absolute value of complex power, S) is equal to the product of the volts and amps. On the other hand, a watt (W) is a measurement of real power.

What is effect of low power factor?

A lower power factor causes a higher current flow for a given load. As the line current increases, the voltage drop in the conductor increases, resulting in a lower voltage at the equipment. With an improved power factor, the voltage drop in the conductor is reduced, improving the voltage at the equipment.

What is the temperature rise of a transformer?

Transformer temperature rise is defined as the average temperature rise of the windings above the ambient (surrounding) temperature, when the transformer is loaded at its nameplate rating.

How does a transformer work?

The core of the transformer works to direct the path of the magnetic field between the primary and secondary coils to prevent wasted energy. Once the magnetic field reaches the secondary coil, it forces the electrons within it to move, creating an electric current via electromotive force (EMF).

What are the core in a dry transformer made of?

steel core

Which is better VPI or cast resin?

The VPI method of construction provides the most reliable and cost-effective (the windings can be removed and repaired unlike with Cast Resin transformers), as well as electrically and mechanically sound windings.

What is a cast coil transformer?

A transformer with coils solidly cast in epoxy resin under vacuum in a mold. Also called cast resin or epoxy cast coil transformers.

What is VPI process?

Vacuum Pressure Impregnation (V.P.I) is a process by which a fully wound electric apparatus stator or rotor is completely submerged in a Resin. Through a combination of dry and wet vacuum and pressure cycles, the resin is assimilated throughout the insulation system.

How much can you overload a dry type transformer?

If the load is heavy and the temperature exceeds 110, the forced air cooling system will automatically input, which can increase the overload capacity to 1.4 to 1.5 times.

What is meant by transformer?

A transformer is a passive component that transfers electrical energy from one electrical circuit to another circuit, or multiple circuits.
