Which IC is used in Power bank?

Circuit and working for power bank 1), on/off switch (S1) and DC-DC boost converter module (USB-OUT). Here, a lithium-ion charger module based on TP4056 IC, rechargeable lithium-ion battery (Samsung type 18650) and DC-DC converter module based on pulse frequency modulation (PFM) technology are used.

In respect to this, what is inside of a power bank?

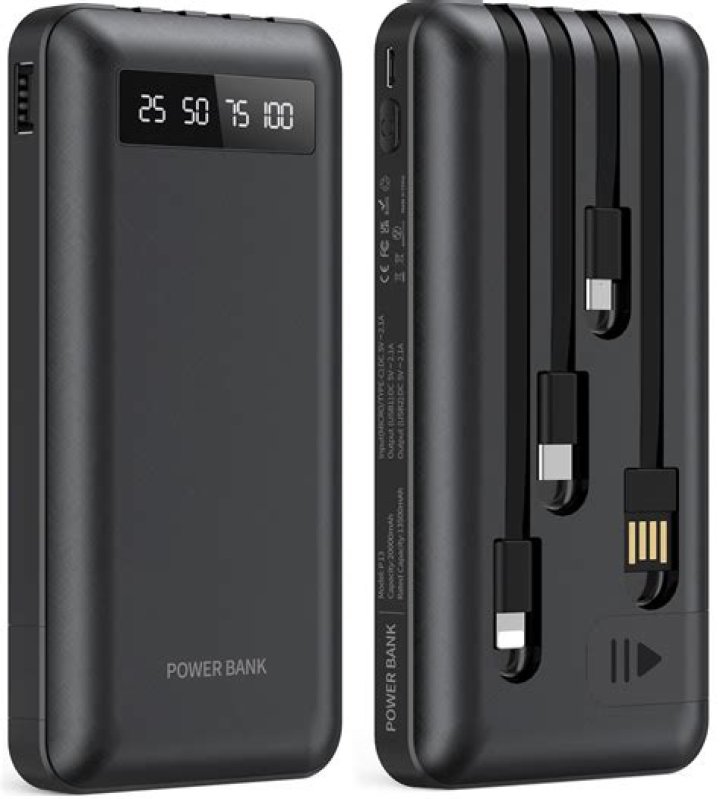

Portable Power Banks are comprised of a special battery in a special case with a special circuit to control power flow. They allow you to store electrical energy (deposit it in the bank) and then later use it to charge up a mobile device (withdraw it from the bank).

Also Know, how does a power bank circuit work? Power banks work by using sophisticated electronics to manage taking in charge from a charger, storing it in a battery and then charging other devices. Power banks are not just a simple battery: they use sophisticated electronics circuitry to manage being charged, and then charging other devices.

Also asked, how can I make a power bank?

Step 5: Make the Enclosure

Take a sheet of cardboard.
Place the battery over the cardboard and mark the dimensions.
Using the dimensions, make a box to fit the batteries and the electronic circuit.
The design can very with your choice of placement of the components.
Be creative and make your own design.

How do I connect my Power Bank battery?

To connect batteries in a series, use jumper wire to connect the negative terminal of the first battery to the positive terminal of the second battery. Use another set of cables to connect the open positive and negative terminals to your application.

Related Question Answers

Is it okay to use phone while charging in power bank?

All USB devices use 5v, however high power devices such as tablets can require much more than 1000 milliamps, so don't use them. There are little to no reasons for avoiding the use of a phone while charging. You'll be fine. Powerbanks are just USB batteries, and since all USB devices use 5 volts, it will be safe.

Which power bank is best?

Which is the best brand for power banks?

RAVPower Luster portable charger.
iMuto 20,000mAh power bank.
RAVPower Universal Power Bank Travel Charger.
RAVPower 20,000mAh power bank.
Mophie Powerstation Plus XL.
Anker PowerCore II 10,000mAh power bank.
AUKEY Power Bank 20,000mAh.
Omni 20 USB-C Portable Power Bank.

Does powerbank damage phone battery?

Using a power bank will not damage your phone battery in any way. Also, note that you need to use a power bank with a power rating that matches your phone's. Using a power bank that discharges a higher voltage than what your phone is built to handle is a dangerous thing and can damage your phone battery.

Who invented power bank?

One of the largest power bank manufacturers, Pisen, has been chosen by over 20 million customers all over the world. The company is also the biggest 3C digital manufacturer in China. What very few people know, though, is that Pisen is also the inventor of power bank.

How long does a 20000mAh power bank last?

10 hours

Are Chinese power banks safe?

Power banks are mostly pretty safe. There are no high voltages, they generally don't themselves fast-charge there's not a huge amount to go wrong, TBH. Mostly when they fail, they stop holding a charge, or the connector(s) break.

How much do power Banks cost?

In Stock. At 8.4oz this is a good weight for backpacking/hiking to keep gear charged. With 2 charging outlets you can charge 2 items at once, such as phone, usb light, etc..

Top Selected Products and Reviews.

List Price:	$18.99
You Save:	$2.44 (13%)

Should I charge my power bank before first use?

Charge before first use: Manufacturers always recommend giving a new power bank a full charge before use. The internal circuits will cut out the excess charge, but it is always wise to get it into a known state before starting to use it.

How can I make a simple power bank at home?

DIY How to Make a Simple Power Bank Without Circuit, A Simple Rechargeable Powerbank Anyone Can Make. 1.

used laptop battery.
empty plastic box.
wire.
7805 ic.
usb female port.
battery charging female port.
usb cabe.
soldering iron.

What is PowerBank module?

Circuit and working for power bank It consists of a USB lithium-ion charger module (USB-IN), 3.7V/2600mAh lithium-ion battery (BATT. 1), on/off switch (S1) and DC-DC boost converter module (USB-OUT). 2, is designed around a dedicated lithium-ion battery charger TP4056 chip and populated with SMD components.

How can I use my laptop battery as a power bank?

Step 1: Gather the Tools and Parts. Old Laptop Battery:
Step 2: Open the Battery.
Step 3: Pull the Cells.
Step 4: Separate the Charging Circuit.
Step 5: Separate the Cells.
Step 6: Remove the Tabs.
Step 7: Identify the Good Cells.
Step 8: Make the Power Bank.

What is a good power bank for iPhone?

Best portable chargers and power banks for iPhone in 2020: Mophie, MyCharge and more

Mophie PowerStation Plus. $50 at Amazon Best battery pack with built-in Lightning cable.
RAVPower 10000mAh Power Bank. $15 at Amazon Best value.
Anker PowerCore Lite 10,000 mAh.
MyCharge HubPlus Turbo 6700mAh.
Ventev Powercell 6010 Plus.

What is a power pack charger?

A power bank is a portable charger designed to recharge your electronic gadgets when you're on the move. Ranging in size from slim, pocket-sized devices up to larger, higher-capacity power banks – they can be used to charge cell phones, tablets, GoPros, portable speakers, cameras and even laptops.

How can I make a power bank without circuit?

DIY How to Make a Simple Power Bank Without Circuit, A Simple Rechargeable Powerbank Anyone Can Make. 1.

used laptop battery.
empty plastic box.
wire.
7805 ic.
usb female port.
battery charging female port.
usb cabe.
soldering iron.

How do cell phone power banks work?

Power banks work by using sophisticated electronics to manage taking in charge from a charger, storing it in a battery and then charging other devices. Power banks are not just a simple battery: they use sophisticated electronics circuitry to manage being charged, and then charging other devices.

How long does a power bank last?

Power Banks are generally not used daily, so they often last much longer than 18 months in real-world usage patterns. Point two depends on the quality of the controller circuitry and battery cells. A good Power Bank can hold charge for 3 to 6 months with minimal loss.

What are the benefits of power bank?

Benefits of Using Power Banks

It's very useful when you have a power cut at your home or no electricity area.
Faster charging because these are highly powered devices.
It can be recharged easily by attaching to any USB port.
Power banks are always giving freedom to use the smartphone without worrying about its battery.

What is in a lithium ion battery?

The three primary functional components of a lithium-ion battery are the positive and negative electrodes and electrolyte. Generally, the negative electrode of a conventional lithium-ion cell is made from carbon. The positive electrode is a metal oxide, and the electrolyte is a lithium salt in an organic solvent.

How do I fix my power bank USB port?

All you need is a solder to fix it, disasemble the powerbank, plug your phone to the powerbank and check in what position it's charging, fix the position by sticky tape or whatever and melt a bit the plastic that is ON the USB port just like on this picture, this way you will fix and the plastic in place that it will

What type of battery is in a power bank?

Lithium-Ion and Lithium-Polymer batteries are the most common rechargeable cell types found in Power Banks. Lithium-Ion cells are generally cheaper and limited in mAh capacity, while Lithium-Polymer cells can be larger and don't suffer from a memory effect over time.

Do batteries last longer in series or parallel?

When batteries are hooked up In series, the voltage is increased. For example, two - 6 Volt batteries connected in series produce 12 Volts. When batteries are hooked up in parallel, the voltage remains the same, but the power (or available current) is increased. This means that the batteries would last longer.

Can powerbank be repaired?

Yes. But I wouldn't advise you attempt to repair a power bank if you are not trained in that. quality of the power bank. Fake power banks are dangerous and never give you what's written on the pack.

How many 12 volt batteries can you run in parallel?

Two 12 volt, 600 CCA batteries in parallel will give you 12 volts and 1200 CCA. This means that the voltage is the same but you have 2x the current reserve so you can operate your electronics for 2x as long before the batteries need to be charged.

How many batteries can be connected in parallel?

To do this successfully, you need at least 4 batteries. If you have two sets of batteries already connected in parallel, you can join them together to form a series.

Can powerbank replace battery?

Power banks are designed to charge your phone in the case of emergency as a backup power supply. Because using the power bank to recharge your phone is not at all a good option compared to replacing the battery. Power banks are designed to charge your phone in the case of emergency as a backup power supply.

Can you mix batteries with different ah?

No, you can't connect batteries of different Ah in series with a good result. However you can connect batteries of different Ah in parallel using diodes. In parallel you should use diodes to connect the batteries to the UPS. The diodes prevents one battery from charging/discharging another battery.

How many amp hours do I need?

The key is to use the watts you know to calculate the amps at the battery voltage . For example, say you want to run a 250 watt 110VAC light bulb from an inverter for 5 hours. Amp-hours (at 12 volts) = watt-hours / 12 volts = 1470 / 12 = 122.5 amp-hours.
